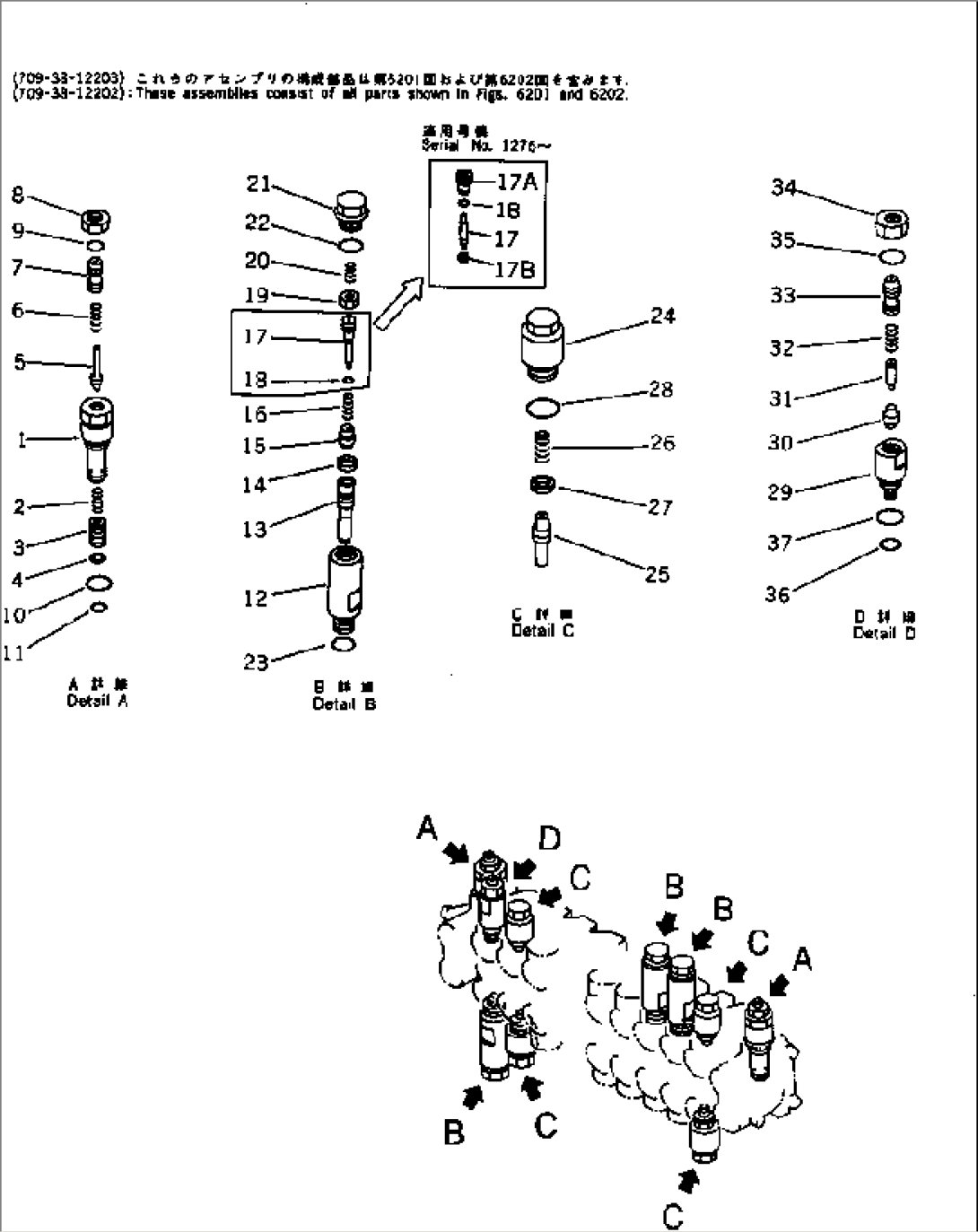

| Item | Part No. | Part Name | Qty | Serial No. |
| (709-38-12203) | VALVE ASS'Y | 1001- | ||
| (\2\709-38-12202) | VALVE ASS'Y | (1001-1275) | ||
| 700-22-51001 | VALVE ASS'Y,MAIN RELIEF | 1001- | ||
| 1 | \6\ | SLEEVE | 1001- | |
| 2 | 700-20-51430 | SPRING | 1001- | |
| 3 | \6\ | VALVE | 1001- | |
| 4 | 700-20-51240 | RING | 1001- | |
| 5 | 700-80-61190 | POPPET | 1001- | |
| 6 | 700-20-51350 | SPRING | 1001- | |
| 7 | 700-20-51340 | SCREW | 1001- | |
| 8 | 01583-11408 | NUT | 1001- | |
| 9 | 07000-02011 | O-RING | 1001- | |
| 10 | 700-22-11410 | O-RING | 1001- | |
| 11 | 07002-02434 | O-RING | 1001- | |
| 709-30-62301 | VALVE ASS'Y,SUCTION AND SAFETY | 1001- | ||
| (\2\709-30-62300) | VALVE ASS'Y,SUCTION AND SAFETY | (1001-1275) | ||
| 12 | 709-30-62110 | SLEEVE | 1001- | |
| 13 | \6\ | VALVE | 1276- | |
| \6\ | VALVE | 1001-1275 | ||
| 14 | \6\ | SEAL | 1001- | |
| 15 | \6\ | POPPET | 1276- | |
| \6\ | POPPET | 1001-1275 | ||
| 16 | \6\ | SPRING | 1001- | |
| 17 | \6\ | PISTON | 1276- | |
| \6\ | PISTON | 1001-1275 | ||
| 17A | \6\ | SCREW | 1276- | |
| 17B | \6\ | SEAL | 1276- | |
| 18 | \6\ | O-RING | 1001- | |
| 19 | \6\ | NUT | 1001- | |
| 20 | 700-20-62170 | SPRING | 1001- | |
| 21 | 709-30-62150 | PLUG | 1001- | |
| 22 | 07002-12034 | O-RING | 1001- | |
| 23 | 07002-02034 | O-RING | 1001- | |
| 709-30-61100 | VALVE ASS'Y,SUCTION | 1001- | ||
| 24 | 709-30-61110 | SLEEVE | 1001- | |
| 25 | \6\ | VALVE | 1001- | |
| 26 | 700-20-62170 | SPRING | 1001- | |
| 27 | \6\ | SEAL | 1001- | |
| 28 | 07002-02034 | O-RING | 1001- | |
| 709-30-65300 | VALVE ASS'Y,SAFETY | 1001- | ||
| 29 | \6\ | SLEEVE | 1001- | |
| 30 | \6\ | POPPET | 1001- | |
| 31 | \6\ | PISTON | 1001- | |
| 32 | \6\ | SPRING | 1001- | |
| 33 | \6\ | SCREW | 1001- | |
| 34 | \6\ | NUT | 1001- | |
| 35 | \6\ | O-RING | 1001- | |
| 36 | 709-32-11840 | O-RING | 1001- | |
| 37 | 07002-02034 | O-RING | 1001- |
