| Item | Part No. | Part Name | Qty | Serial No. |

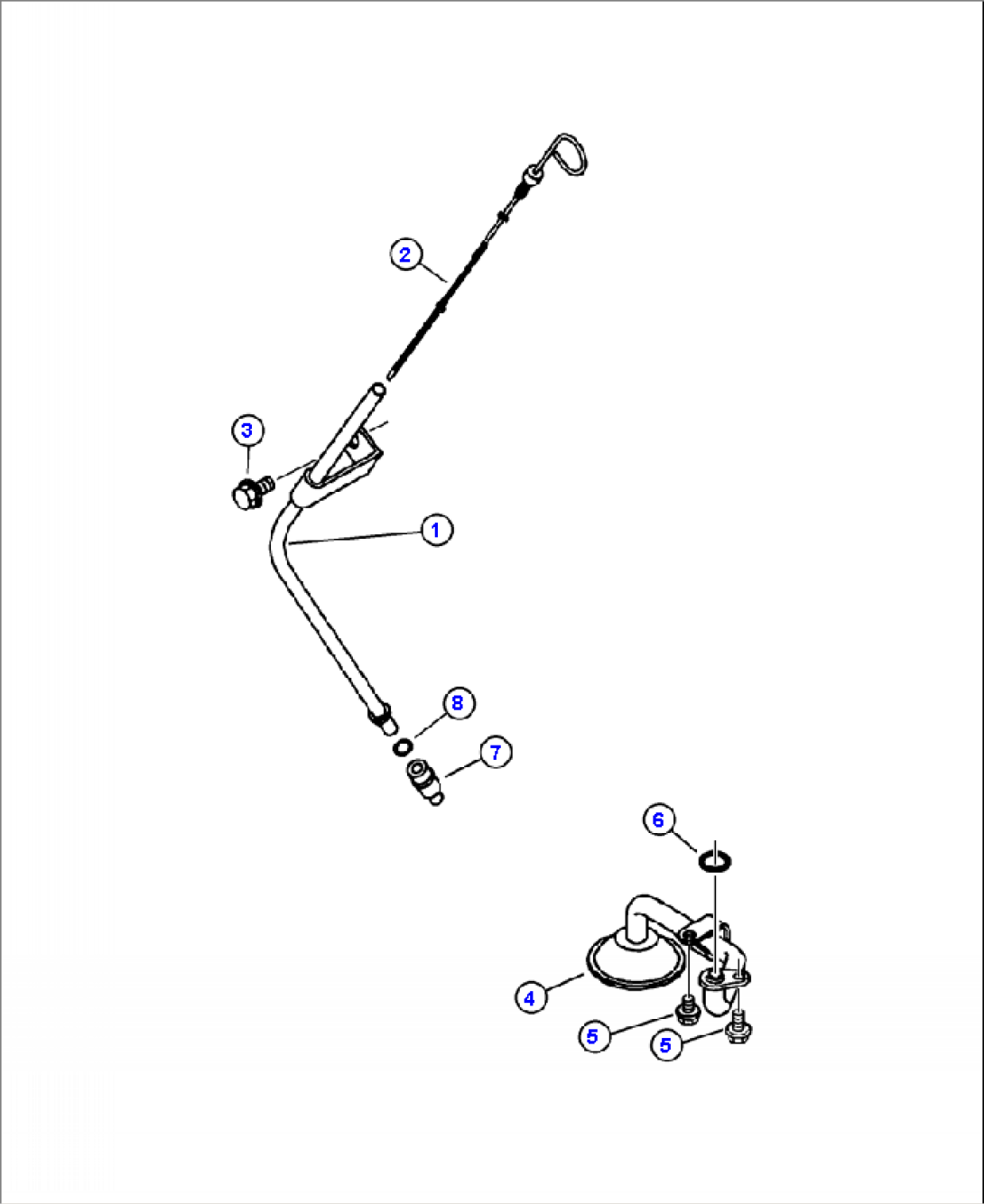

| ENGINE (SEE FIG. A0001-0100) | ||||
| 1 | YM129951-34820 | GUIDE, DIPSTICK | ||
| 2 | YM129951-34801 | DIPSTICK | ||
| 3 | YM26106-080162 | BOLT | ||
| 4 | YM129900-35000 | TUBE, SUMP | ||
| 5 | YM26106-080122 | BOLT | ||
| 6 | YM129900-32030 | O-RING | ||
| 7 | YM119260-34810 | GUIDE, DIPSTICK | ||
| 8 | YM24311-240100 | O-RING |
