| Item | Part No. | Part Name | Qty | Serial No. |

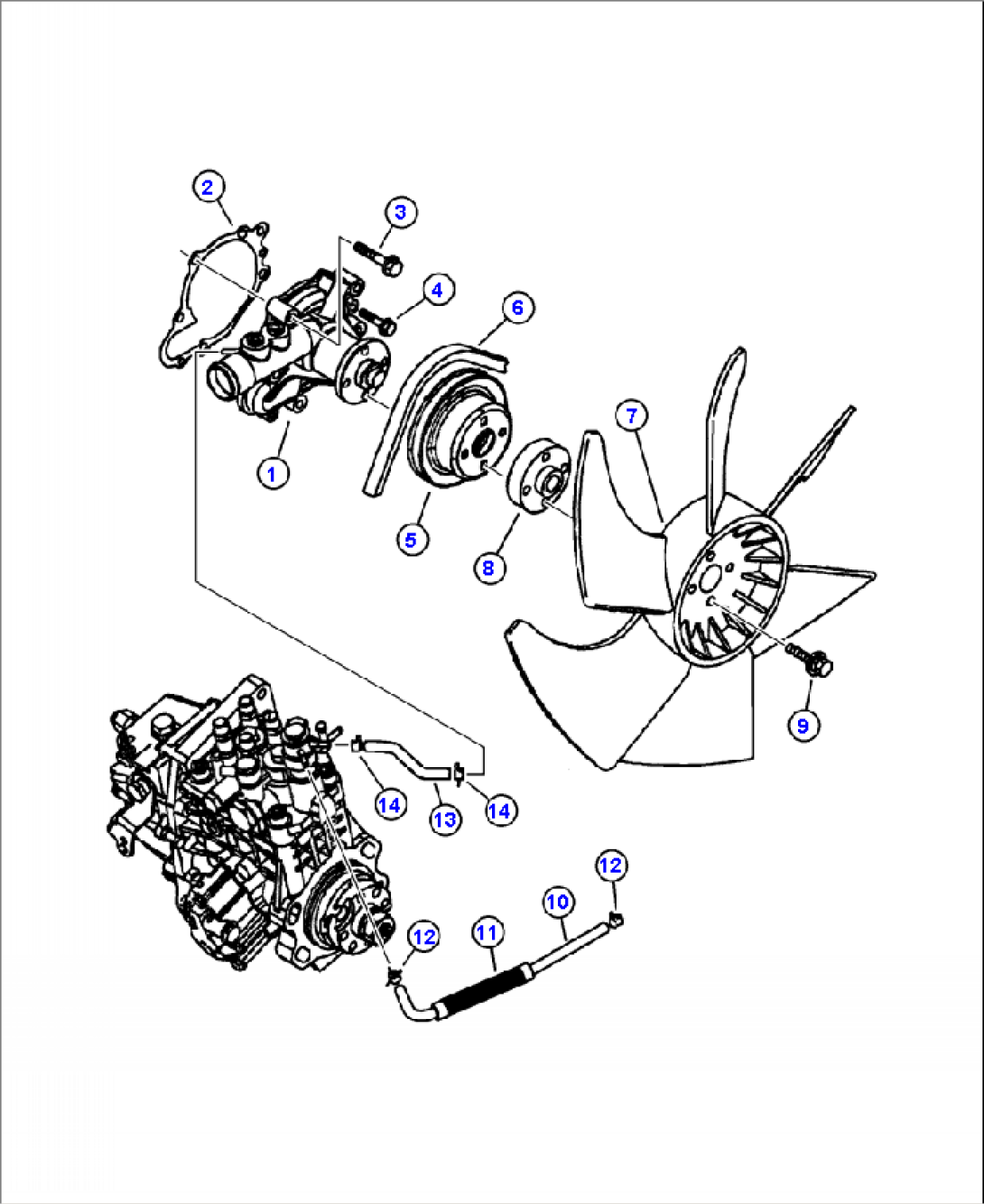

| ENGINE (SEE FIG. A0000-01A00) | ||||
| 1 | YM129907-42000 | PUMP, COOLANT | ||
| 2 | YM129900-42020 | GASKET | ||
| 3 | YM26106-060302 | BOLT | ||
| 4 | YM26106-080552 | BOLT | ||
| 5 | YM129930-42450 | PULLEY | ||
| 6 | YM25132-004100 | BELT, FAN | ||
| 7 | YM129916-44740 | FAN | ||
| 8 | YM109130-44760 | SPACER | ||
| 9 | YM26014-080352 | BOLT | ||
| YM129907-49610 | HOSE, COOLANT | |||
| 10 | YM129907-49710 | HOSE | ||
| 11 | YM129907-49750 | PROTECTION | ||
| 12 | YM124722-59050 | CLAMP | ||
| YM129907-49620 | HOSE, COOLANT | |||
| 13 | YM129907-49720 | HOSE | ||
| 14 | YM124722-59050 | CLAMP |
