| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE (SEE FIG. A0001-0100) | ||||

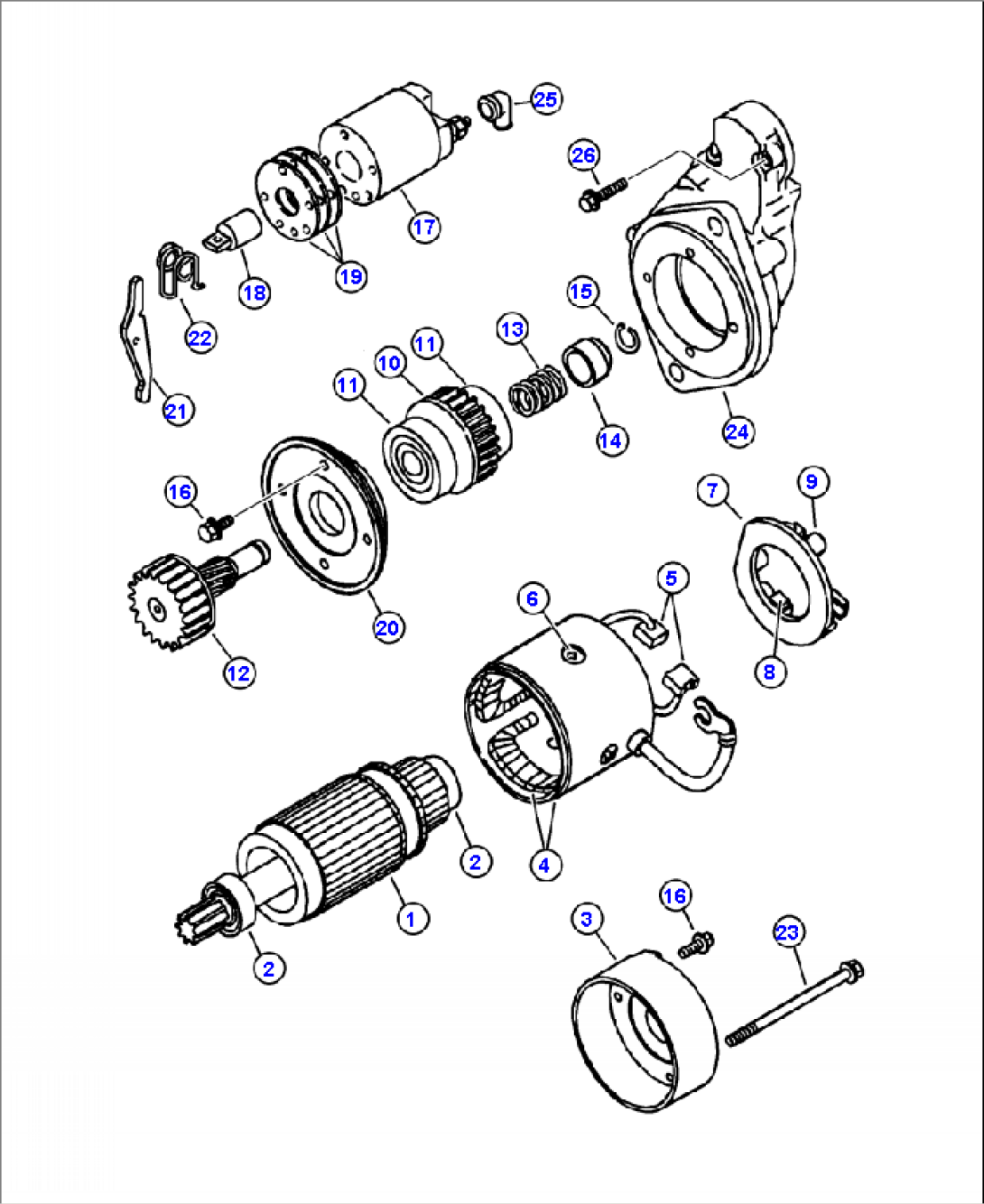

| YM123900-77010 | MOTOR, STARTER | |||
| YM123900-77400 | ROTOR WINDING | |||
| 1 | (NSS) | ROTOR | ||
| 2 | (NSS) | BEARING | ||
| 3 | YM129000-77460 | COVER, REAR | ||
| YM123900-77440 | FIELD COIL WINDING | |||
| 4 | (NSS) | COIL | ||
| 5 | YM123900-77450 | BRUSH | ||
| 6 | (NSS) | SCREW, BRUSH | ||
| YM123900-77480 | HOLDER, BRUSH | |||
| 7 | (NSS) | HOLDER | ||
| 8 | YM123900-77450 | BRUSH | ||
| 9 | YM121254-77590 | SPRING | ||
| YM123900-77510 | PINION | |||
| YM123900-77520 | CLUTCH, STARTER | |||
| 10 | (NSS) | CLUTCH | ||
| 11 | YMX2240610100 | BEARING | ||
| 12 | YM123900-77540 | SHAFT | ||
| YM119131-77550 | PINION STOP KIT | |||
| 13 | (NSS) | SPRING | ||
| 14 | (NSS) | BUSHING | ||
| 15 | (NSS) | CLIP | ||
| 16 | (NSS) | BOLT | ||
| YM129900-77591 | SWITCH, MAGNETIC | |||
| 17 | (NSS) | SWITCH | ||
| 18 | (NSS) | PLUNGER | ||
| 19 | YM123900-77650 | COVER, DUST | ||
| 20 | YM123900-77610 | COVER, END | ||
| YM129900-77620 | LEVER SET, SHIFT | |||
| 21 | (NSS) | LEVER | ||
| 22 | (NSS) | SPRING | ||
| 23 | YM123900-77640 | BOLT | ||
| 24 | YM123900-77710 | HOUSING, GEAR | ||
| 25 | YM171008-77750 | BOOT, CABLE | ||
| 26 | (NSS) | BOLT |
