| Item | Part No. | Part Name | Qty | Serial No. |

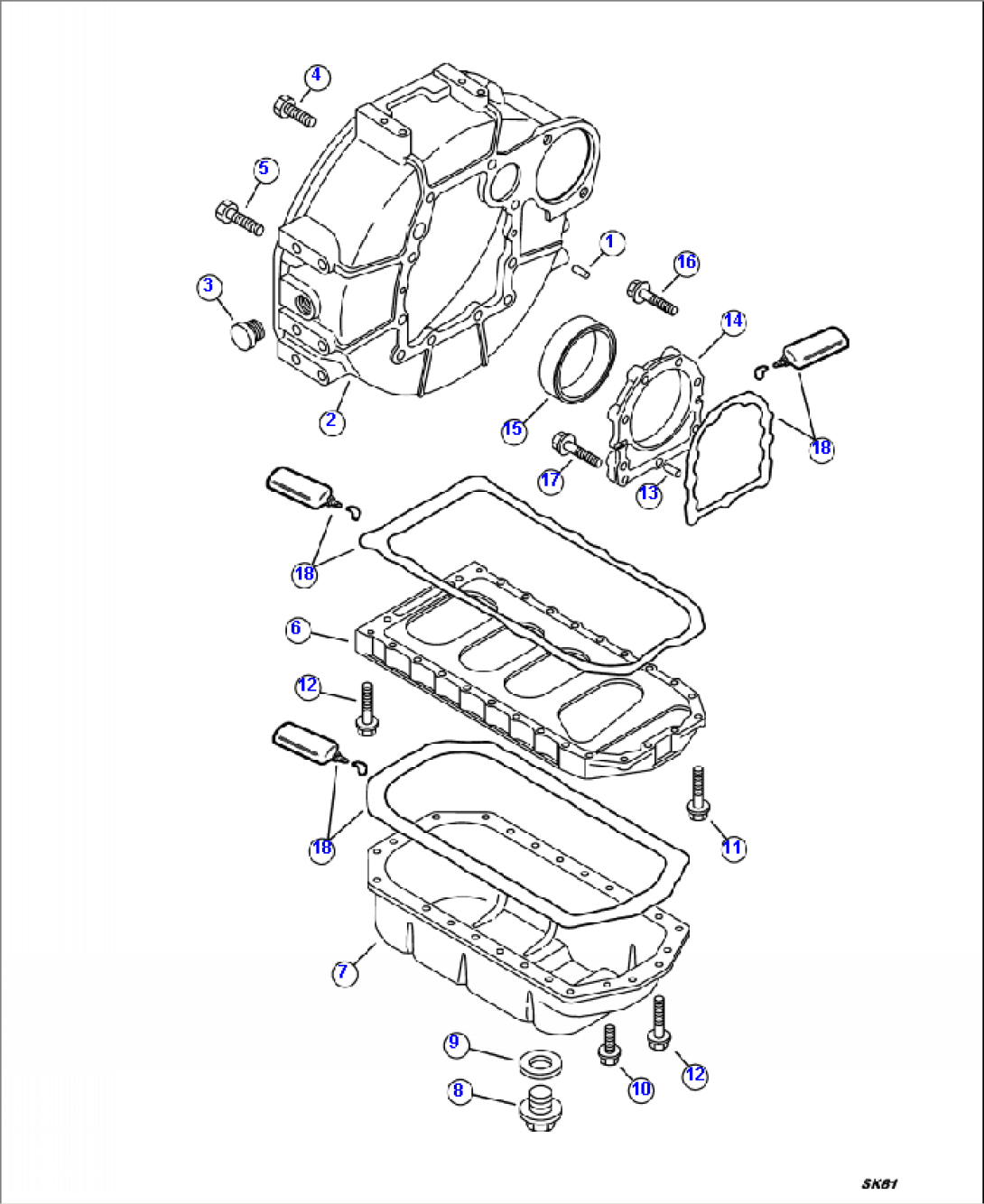

| ENGINE (SEE FIG. A0001-0100) | ||||
| ENGINE , TPEM (SEE FIG. A0001-0100) | ||||
| 1 | YM129100-01580 | SPRING PIN | ||
| 2 | YM129612-01600 | HOUSING, FLYWHEEL | ||
| 3 | YM119620-01750 | PLUG | ||
| 4 | YM26206-100252 | BOLT | ||
| 5 | YM26206-100302 | BOLT | ||
| 6 | YM129400-01730 | BAFFLE, OIL PAN | ||
| YM129436-01780 | OIL PAN | |||
| 7 | (NSS) | PAN | ||
| 8 | YM119640-01640 | PLUG | ||
| 9 | YM22190-220002 | GASKET | ||
| 10 | YM26106-080162 | BOLT | ||
| 11 | YM26106-080252 | BOLT | ||
| 12 | YM26106-080452 | BOLT | ||
| 13 | YM129100-01580 | SPRING PIN | ||
| YM129100-01640 | CASE, OIL SEAL | |||
| 14 | (NSS) | CASE | ||
| 15 | YM129795-01780 | SEAL, OIL | ||
| 16 | YM129486-01670 | BOLT | ||
| 17 | YM26106-080352 | BOLT | ||
| 18 | YM977770-01212 | GASKET, LIQUID |
