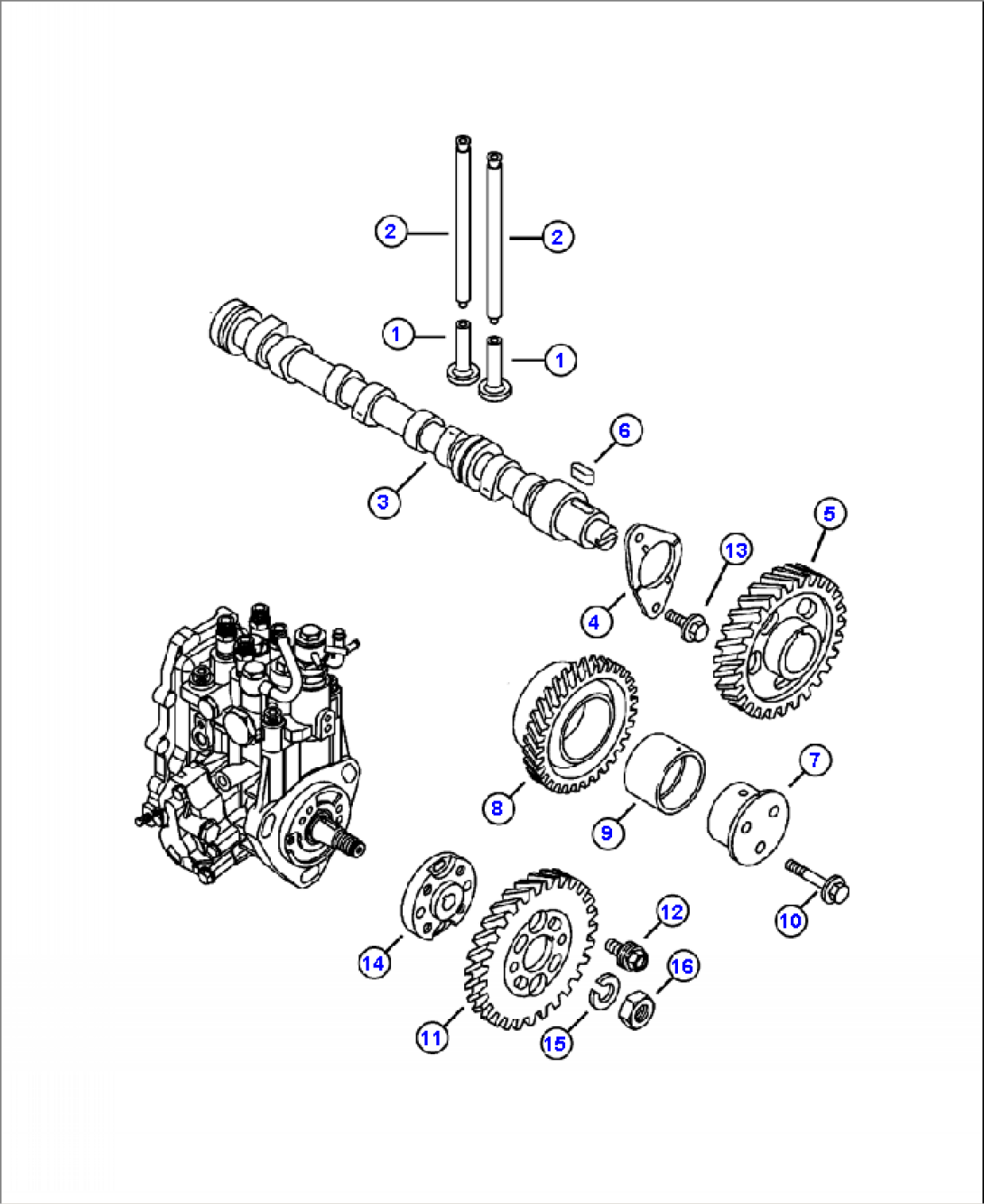

| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE (SEE FIG. A0001-0100) | ||||
| ENGINE , TPEM (SEE FIG. A0001-0100) | ||||
| 1 | YM129150-14200 | TAPPET | ||
| 2 | YM129150-14400 | PUSH-ROD | ||
| YM129508-14580 | CAMSHAFT | |||
| 3 | (NSS) | SHAFT | ||
| 4 | YM129150-02450 | PLATE, THRUST | ||
| 5 | YM129150-14101 | GEAR | ||
| 6 | YM22512-070140 | KEY | ||
| 7 | YM119802-25051 | SHAFT | ||
| YM119802-25100 | GEAR, IDLER | |||
| 8 | (NSS) | GEAR | ||
| 9 | YM119802-25070 | BUSHING | ||
| 10 | YM26106-080402 | BOLT | ||
| 11 | YM119802-25901 | GEAR, FUEL PUMP | ||
| 12 | YM129150-25301 | BOLT | ||
| 13 | YM26106-080142 | BOLT | ||
| YM158552-51151 | FLANGE, GEAR | |||
| 14 | (NSS) | FLANGE | ||
| 15 | YM22217-140000 | RING, SNAP | ||
| 16 | YM26776-140002 | NUT, STOP |
