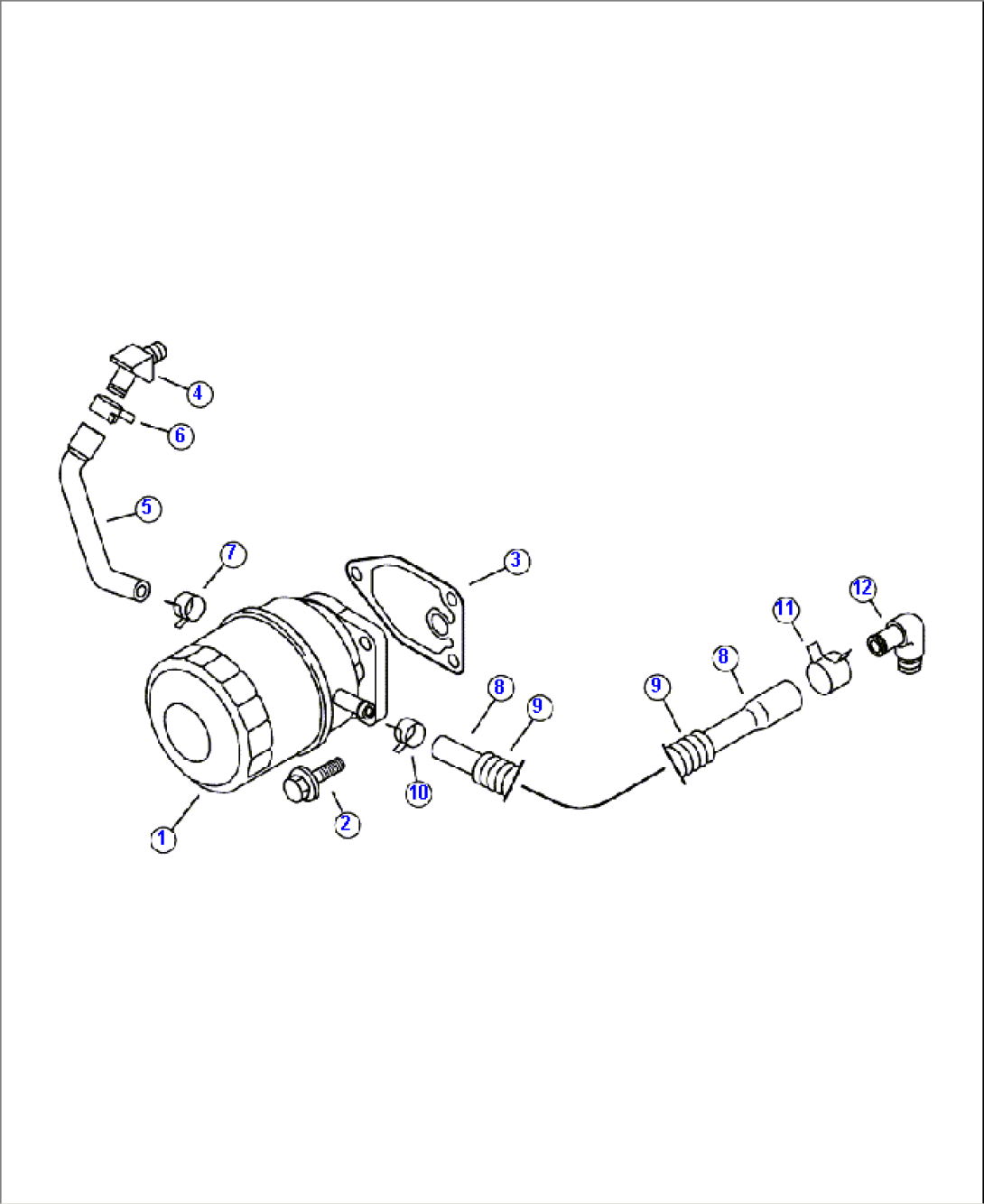

| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE (SEE FIG. A0001-0100 ) | A10001 and UP- | |||
| 1 | FILTER, OIL (SEE FIG. A0025-0100 ) | |||
| 2 | YM26106-080202 | BOLT | ||
| 3 | YM129150-35111 | GASKET | ||
| 4 | YM129648-44400 | JOINT | ||
| 5 | (NSS) | PIPE | ||
| 6 | YM171008-03990 | CLAMP | ||
| 7 | YM23080-015000 | CLAMP | ||
| YM129508-49040 | PIPE, FROM PUMP | |||
| 8 | (NSS) | PIPE | ||
| 9 | YM119940-59130 | PROTECTION | ||
| 10 | YM23080-015000 | CLAMP | ||
| 11 | YM23080-018000 | CLAMP | ||
| 12 | YM129103-49301 | UNION |
