| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE (SEE FIG. A0001-0100 ) | A10001 and UP- | |||

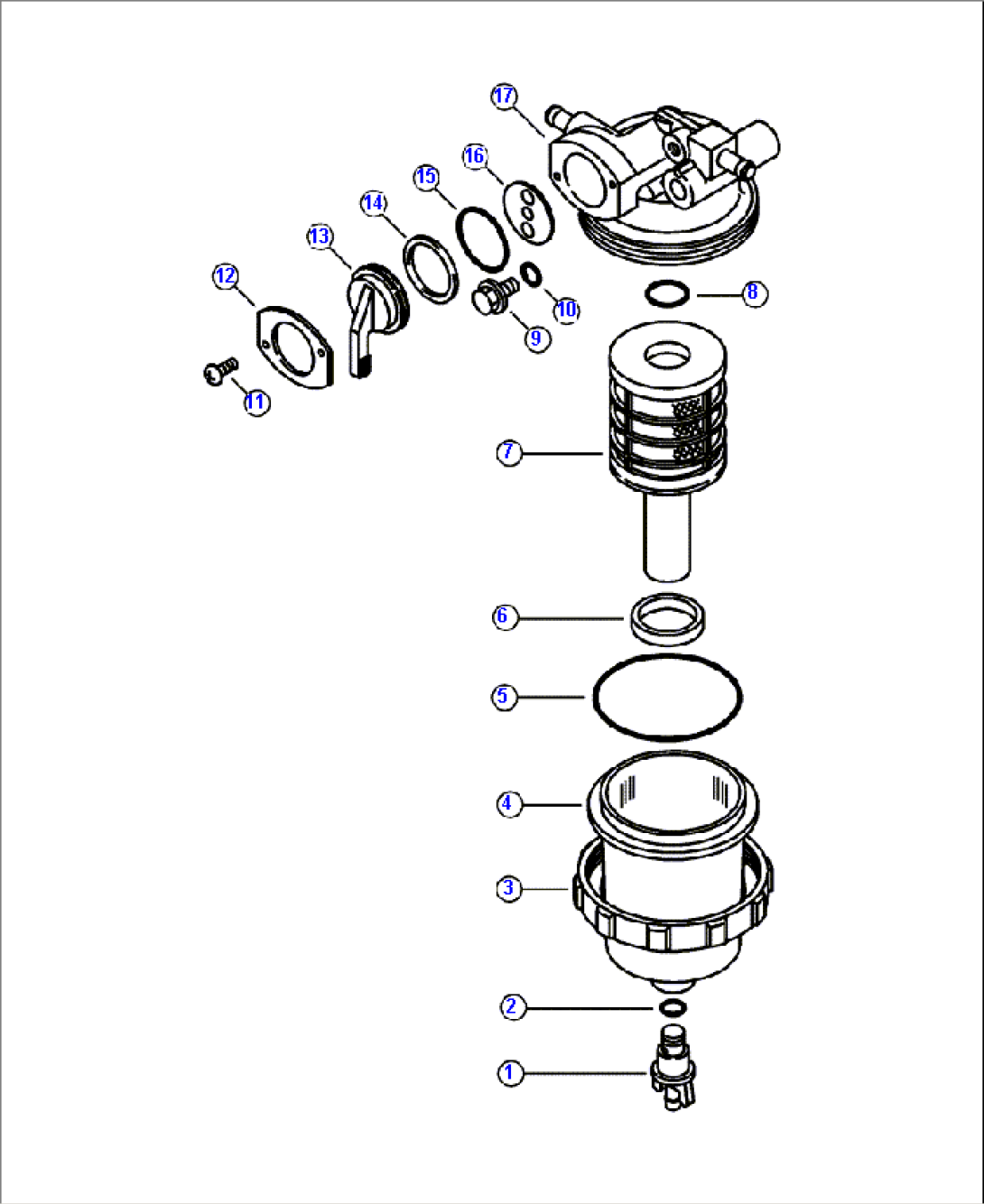

| YM119802-55700 | FILTER, WATER SEPARATOR | |||
| 1 | (NSS) | VALVE, DRAIN | ||
| 2 | (NSS) | O-RING | ||
| 3 | YM129100-55690 | RING, RETAINER | ||
| 4 | (NSS) | HOUSING, STRAINER | ||
| 5 | YM24321-000650 | O-RING | ||
| 6 | (NSS) | SEAL, SHAFT | ||
| 7 | YM119802-55710 | CARTRIDGE, FUEL FILTER | ||
| 8 | YM24311-000160 | O-RING | ||
| 9 | (NSS) | PLUG | ||
| 10 | (NSS) | O-RING | ||
| 11 | (NSS) | SCREW | ||
| 12 | (NSS) | PLATE, RETAINER | ||
| 13 | (NSS) | HANDLE, LEVER | ||
| 14 | (NSS) | SEAL, OUTER | ||
| 15 | (NSS) | SEAL, INNER | ||
| 16 | (NSS) | PLATE, ON OFF | ||
| 17 | (NSS) | HOUSING |
