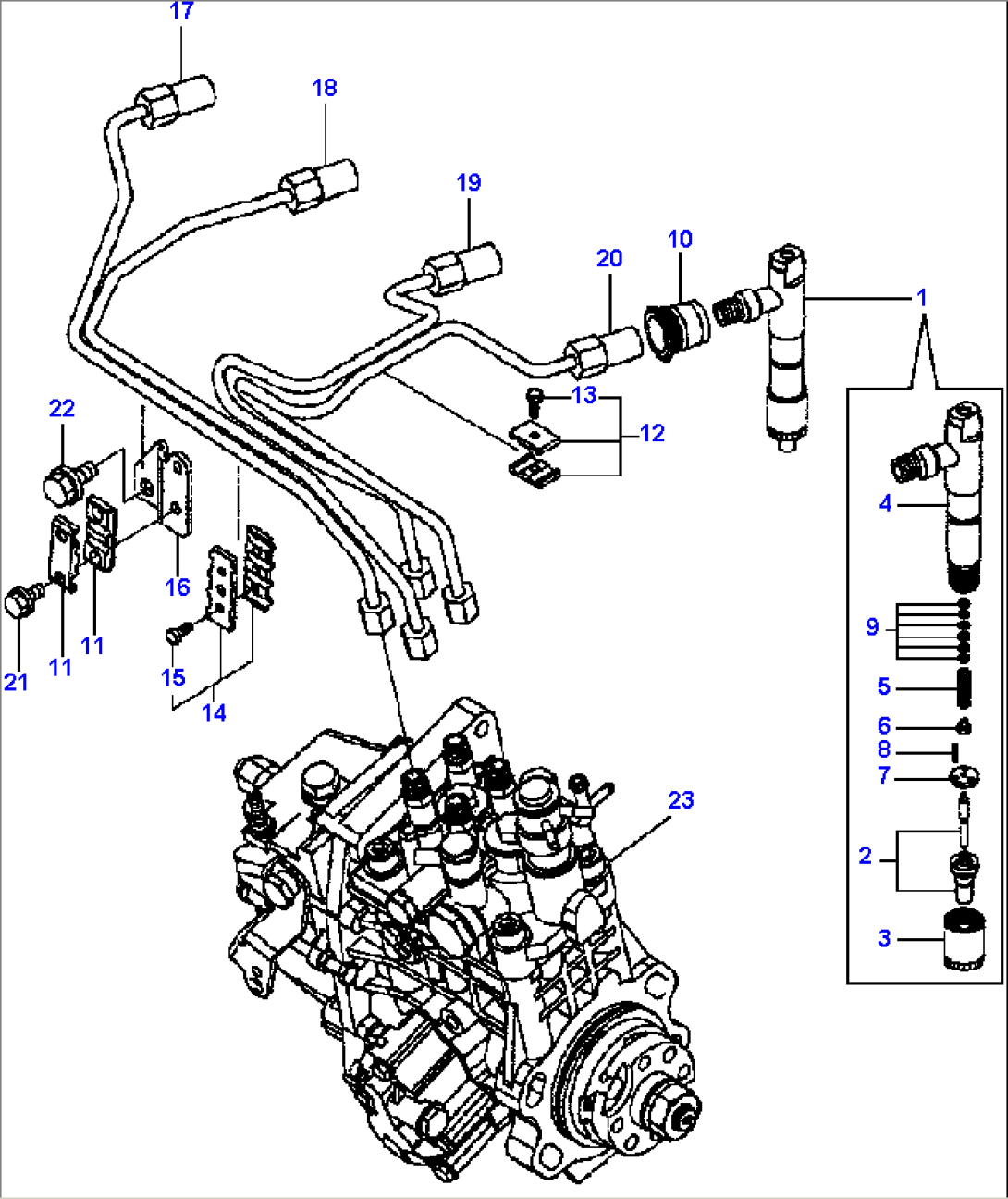

| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE ASSEMBLY (SEE FIG. A0010-0101) | ||||
| 1 | YM729908-53100 | INJECTOR ASSEMBLY | ||
| 2 | YM129908-53000 | NOZZLE ASSEMBLY | ||
| 3 | YM114250-53080 | PIPE | ||
| 4 | YM129907-53100 | FUEL INJECTION NOZZLE ASSEMBLY | ||
| 5 | YM114250-53120 | SPRING | ||
| 6 | YM114250-53130 | SEAT | ||
| 7 | YM114250-53140 | PLATE, STOP | ||
| 8 | YM114250-53210 | PIN | ||
| 9 | YM114250-53400 | KIT, SHIM | ||
| 10 | YM123907-11601 | PIPE | ||
| 11 | YM122780-59100 | RETAINER, PIPE | ||
| 12 | YM119305-59120 | RETAINER, PIPE | ||
| 13 | YM129150-59131 | BOLT | ||
| 14 | YM129550-59120 | RETAINER, PIPE | ||
| 15 | YM129150-59131 | BOLT | ||
| 16 | YM129907-59720 | SUPPORT | ||
| 17 | YM129908-59810 | PIPE | ||
| 18 | YM129908-59820 | PIPE | ||
| 19 | YM129908-59830 | PIPE | ||
| 20 | YM129908-59840 | PIPE | ||
| 21 | YM26106-060162 | BOLT | ||
| 22 | YM26106-080182 | SCREW | ||
| 23 | INJECTION PUMP ASSEMBLY (SEE FIG. A0140-0431) |
