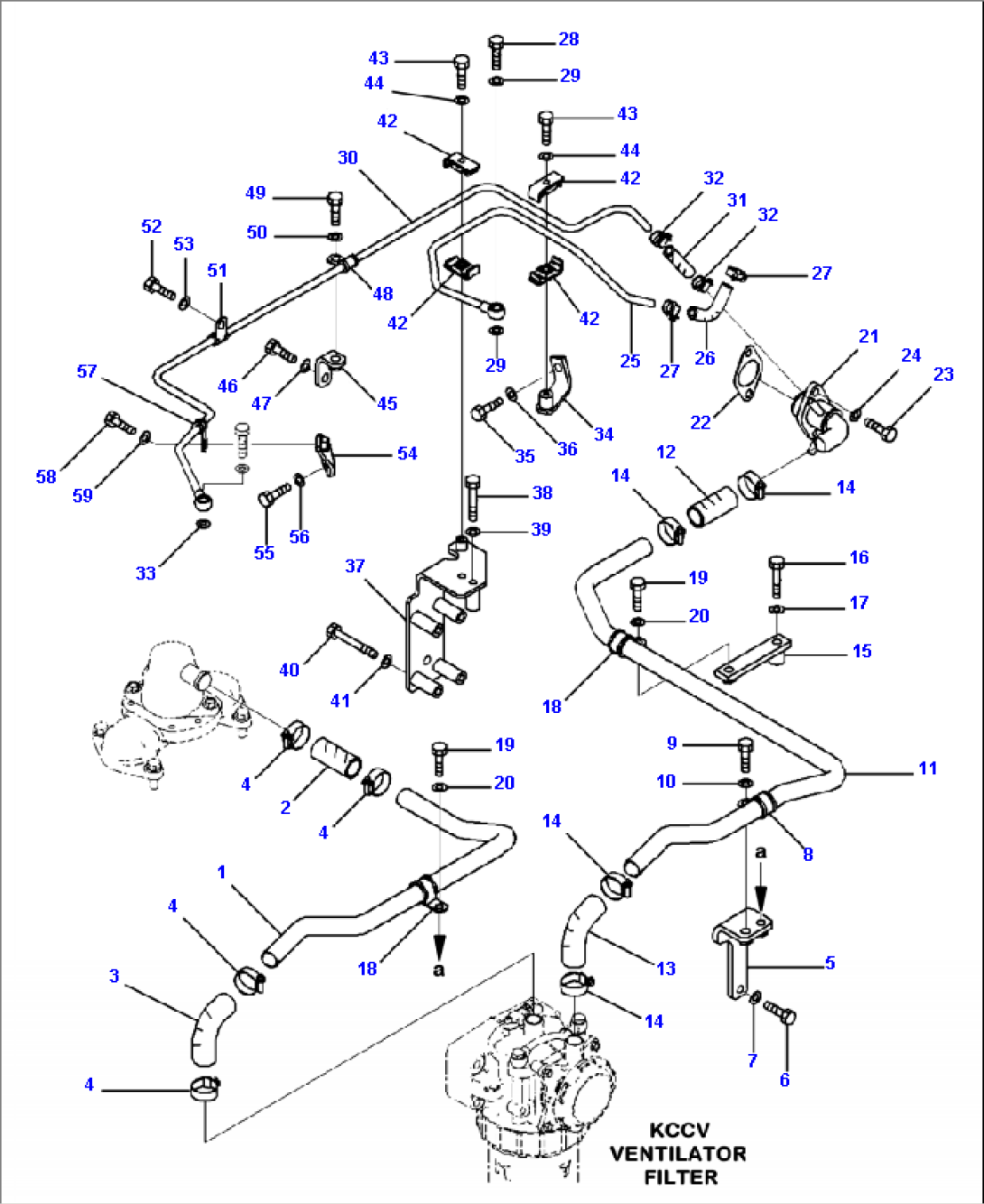

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-11-2410 | TUBE | ||
| 2 | 6252-21-7670 | HOSE | ||
| 3 | 6252-21-7160 | HOSE | ||
| 4 | 07281-00419 | CLAMP, HOSE | ||
| 5 | 6262-11-2440 | BRACKET | ||
| 6 | 01010-81025 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 6252-71-5780 | CLIP | ||
| 9 | 01010-81025 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 6262-11-2420 | TUBE | ||
| 12 | 6252-21-7670 | HOSE | ||
| 13 | 6252-21-7160 | HOSE | ||
| 14 | 07281-00419 | CLAMP, HOSE | ||
| 15 | 6262-11-2430 | BRACKET | ||
| 16 | 01010-81050 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 6252-71-5780 | CLIP | ||
| 19 | 01010-81025 | BOLT | ||
| 20 | 01643-31032 | WASHER | ||
| 21 | 6262-11-6850 | CONNECTOR | ||
| 22 | 6252-21-7290 | GASKET | ||
| 23 | 01010-81030 | BOLT | ||
| 24 | 01643-31032 | WASHER | ||
| 25 | 6262-11-6710 | TUBE | ||
| 26 | 6262-11-6860 | HOSE | ||
| 27 | 07281-00197 | CLAMP | ||
| 28 | 7700-45-1710 | BOLT, JOINT | ||
| 29 | 07005-01412 | GASKET | ||
| 30 | 6262-11-6720 | TUBE | ||
| 31 | 6262-11-6870 | HOSE | ||
| 32 | 07281-00197 | CLAMP | ||
| 33 | 07005-01412 | GASKET | ||
| 34 | 6262-11-6740 | BRACKET | ||
| 35 | 01010-81030 | BOLT | ||
| 36 | 01643-31032 | WASHER | ||
| 37 | 6262-11-6760 | BRACKET | ||
| 38 | 01010-80855 | BOLT | ||
| 39 | 01643-30823 | WASHER | ||
| 40 | 01010-80865 | BOLT | ||
| 41 | 01643-30823 | WASHER | ||
| 42 | 6166-75-6821 | CLAMP, HALF | ||
| 43 | 01010-80835 | BOLT | ||
| 44 | 01643-30823 | WASHER | ||
| 45 | 6262-11-6750 | BRACKET | ||
| 46 | 01010-81025 | BOLT | ||
| 47 | 01643-31032 | WASHER | ||
| 48 | 600-052-3100 | CLIP | ||
| 49 | 01010-81025 | BOLT | ||
| 50 | 01643-31032 | WASHER | ||
| 51 | 600-052-3100 | CLIP | ||
| 52 | 01010-81020 | BOLT | ||
| 53 | 01643-31032 | WASHER | ||
| 54 | 6262-11-6780 | BRACKET | ||
| 55 | 01010-E1025 | BOLT | ||
| 56 | 01643-31032 | WASHER | ||
| 57 | 600-052-3100 | CLIP | ||
| 58 | 01010-81025 | BOLT | ||
| 59 | 01643-31032 | WASHER |
