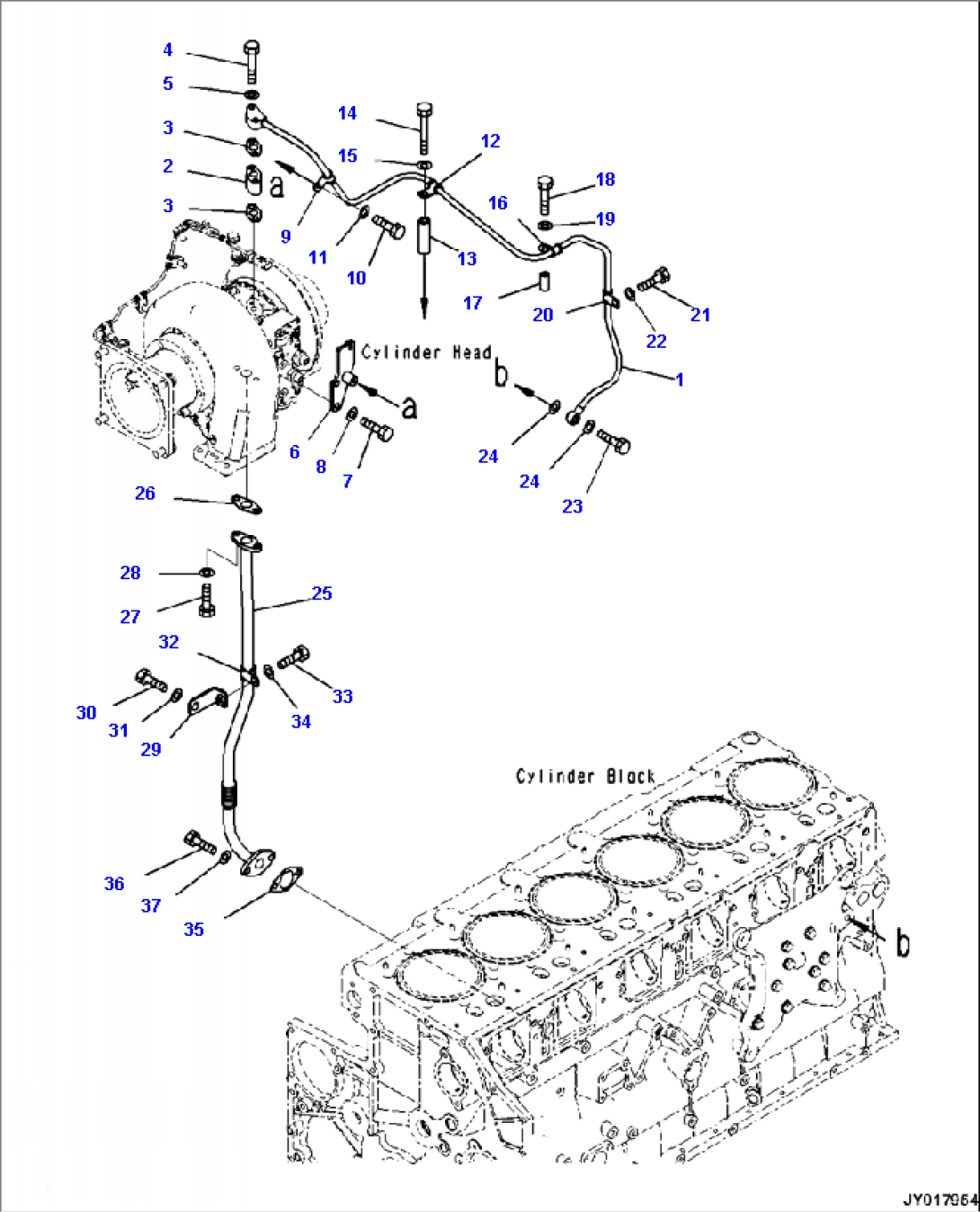

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-51-8110 | TUBE | ||
| 2 | 6262-51-8120 | SPACER | ||
| 3 | 6221-51-8160 | GASKET | ||
| 4 | 01010-80860 | BOLT | ||
| 5 | 01643-30823 | WASHER | ||
| 6 | 6262-51-8180 | BRACKET | ||
| 7 | 01010-80820 | BOLT | ||
| 8 | 01643-30823 | WASHER | ||
| 9 | 600-052-1100 | CLIP | ||
| 10 | 01010-80820 | BOLT | ||
| 11 | 01643-30823 | WASHER | ||
| 12 | 600-052-3100 | CLIP | ||
| 13 | 6136-11-5120 | SPACER | ||
| 14 | 01010-81090 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 600-052-1100 | CLIP | ||
| 17 | 207-62-32890 | COLLAR | ||
| 18 | 01010-80850 | BOLT | ||
| 19 | 01643-30823 | WASHER | ||
| 20 | 600-052-3100 | CLIP | ||
| 21 | 01010-81020 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 07206-31014 | BOLT, JOINT | ||
| 24 | 07005-01412 | GASKET | ||
| 25 | 6262-51-8130 | TUBE | ||
| 26 | 6151-51-8721 | GASKET | ||
| 27 | 01010-80820 | BOLT | ||
| 28 | 01643-30823 | WASHER | ||
| 29 | 6262-51-8170 | BRACKET | ||
| 30 | 01010-81225 | BOLT | ||
| 31 | 01643-31232 | WASHER | ||
| 32 | 6252-71-5670 | CLIP | ||
| 33 | 01010-81020 | BOLT | ||
| 34 | 01643-31032 | WASHER | ||
| 35 | 6127-51-6822 | GASKET | ||
| 36 | 01010-81025 | BOLT | ||
| 37 | 01643-31032 | WASHER |
