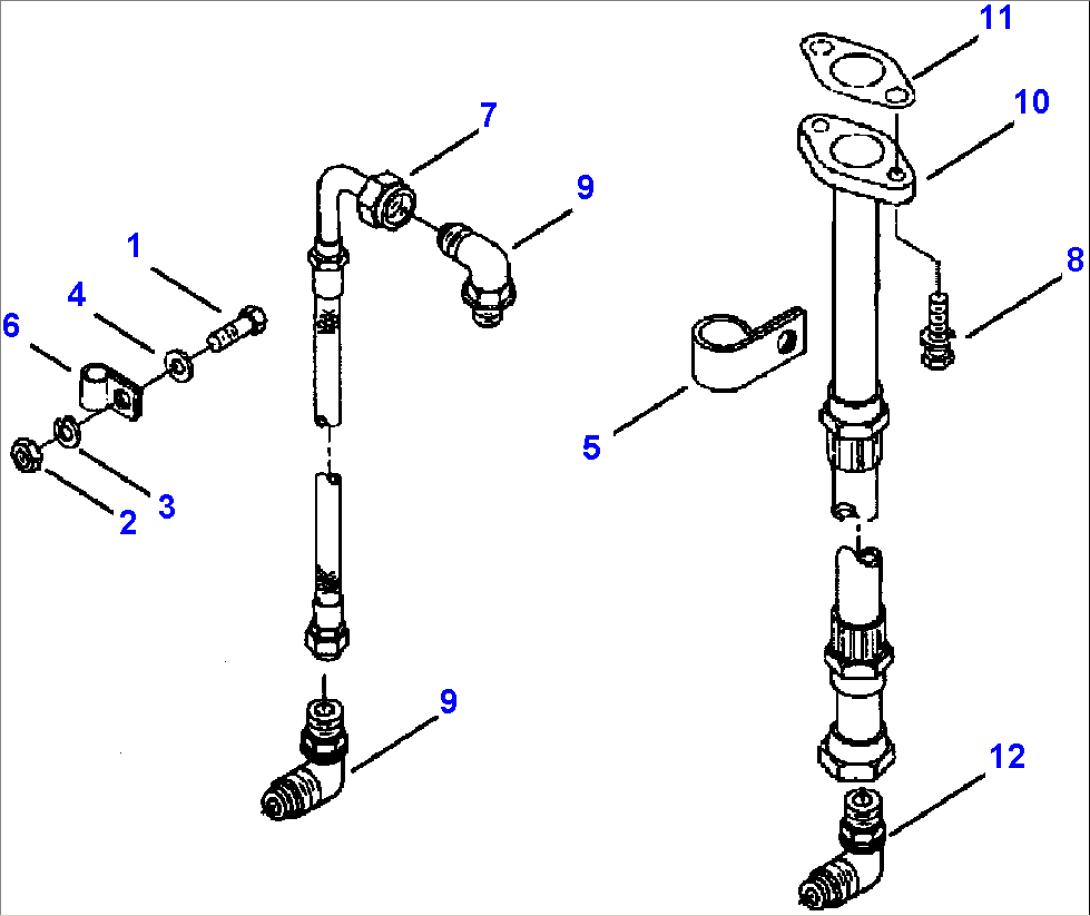

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1238 012 H1 | BOLT | ||
| 2 | 1238 081 H1 | NUT | ||
| 3 | 6216-84-5360 | WASHER, LOCK | ||
| 4 | 6216-64-3990 | WASHER, PLAIN | ||
| 5 | 6216-84-9510 | CLIP | ||
| 6 | 6735-71-8110 | CLIP | ||
| 7 | 1241 444 H1 | HOSE, FLEXIBLE | ||
| 8 | 6216-94-3790 | BOLT | ||
| 9 | 1246 526 H1 | ELBOW, MALE UNION | ||
| 10 | 1295 933 H1 | CONNECTION, TURBOCHARGER OIL DRAIN | ||
| 11 | GASKET, CONNECTION ( SEE FIG. A1203-A5A2 ) | |||
| 12 | 1295 932 H1 | UNION, MALE |
