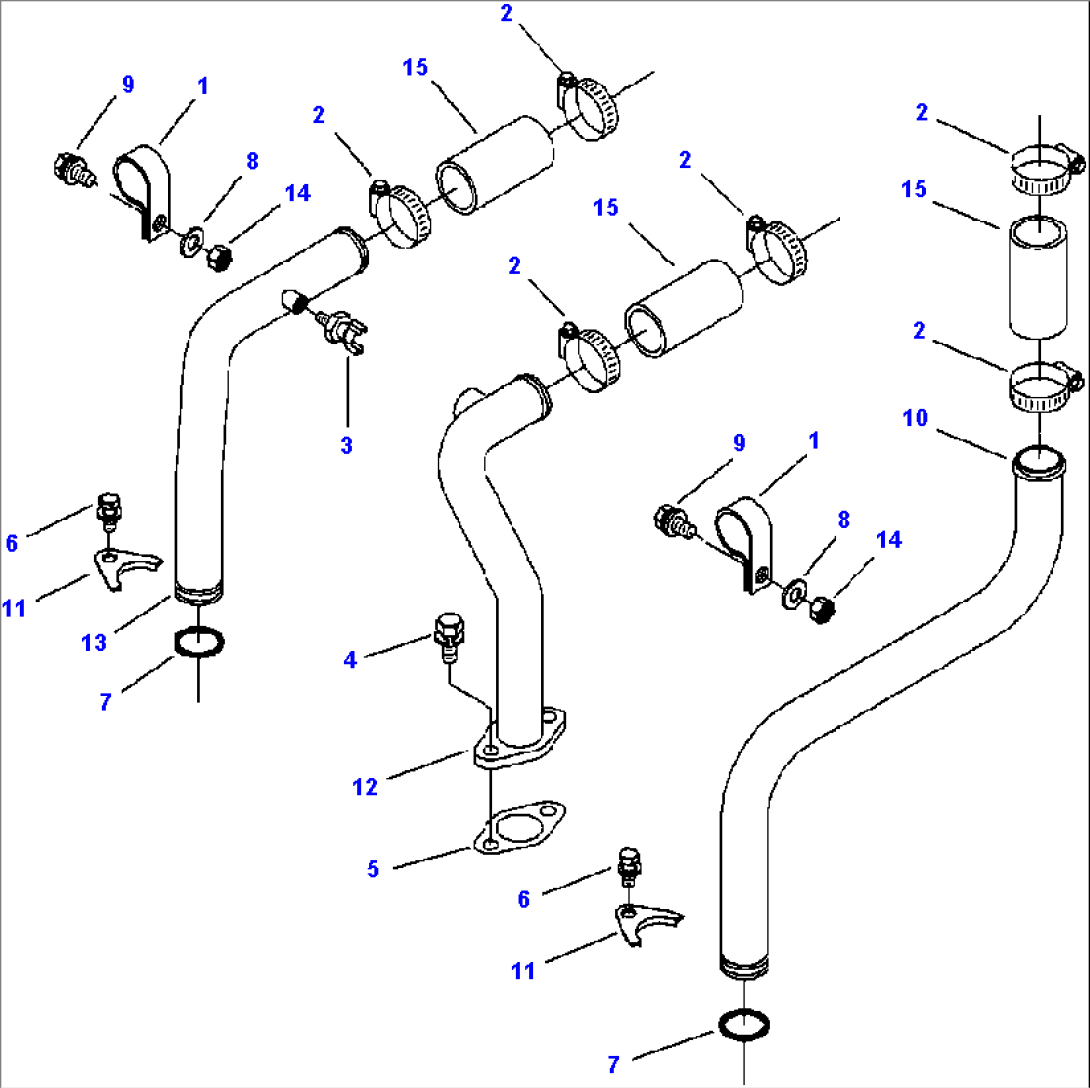

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1240 404 H1 | CLIP | ||
| 2 | 1246 345 H1 | CLAMP, HOSE (3/4-1 3/4 INCH) | ||
| 3 | 1267 720 H1 | DRAINCOCK | ||
| 4 | 6216-94-3780 | BOLT (3/8-16x1 INCH) | ||
| 5 | 1239 226 H1 | GASKET, FLANGE | ||
| 6 | 1239 332 H1 | BOLT (5/16-18x3/4 INCH) | ||
| 7 | 1310 073 H1 | SEAL, O-RING | ||
| 8 | 1267 715 H1 | WASHER, PLAIN (3/8 INCH) | ||
| 9 | 1310 074 H1 | BOLT (3/8-16x7/8 INCH) | ||
| 10 | 1310 075 H1 | TUBE, WATER TRANSFER | ||
| 11 | 1310 076 H1 | CLAMP, TUBE | ||
| 12 | 1310 077 H1 | TUBE, WATER TRANSFER | ||
| 13 | 1310 078 H1 | TUBE, WATER TRANSFER | ||
| 14 | 1239 902 H1 | NUT (3/8-16 UNC) | ||
| 15 | 1246 352 H1 | HOSE, PLAIN |
