| Item | Part No. | Part Name | Qty | Serial No. |

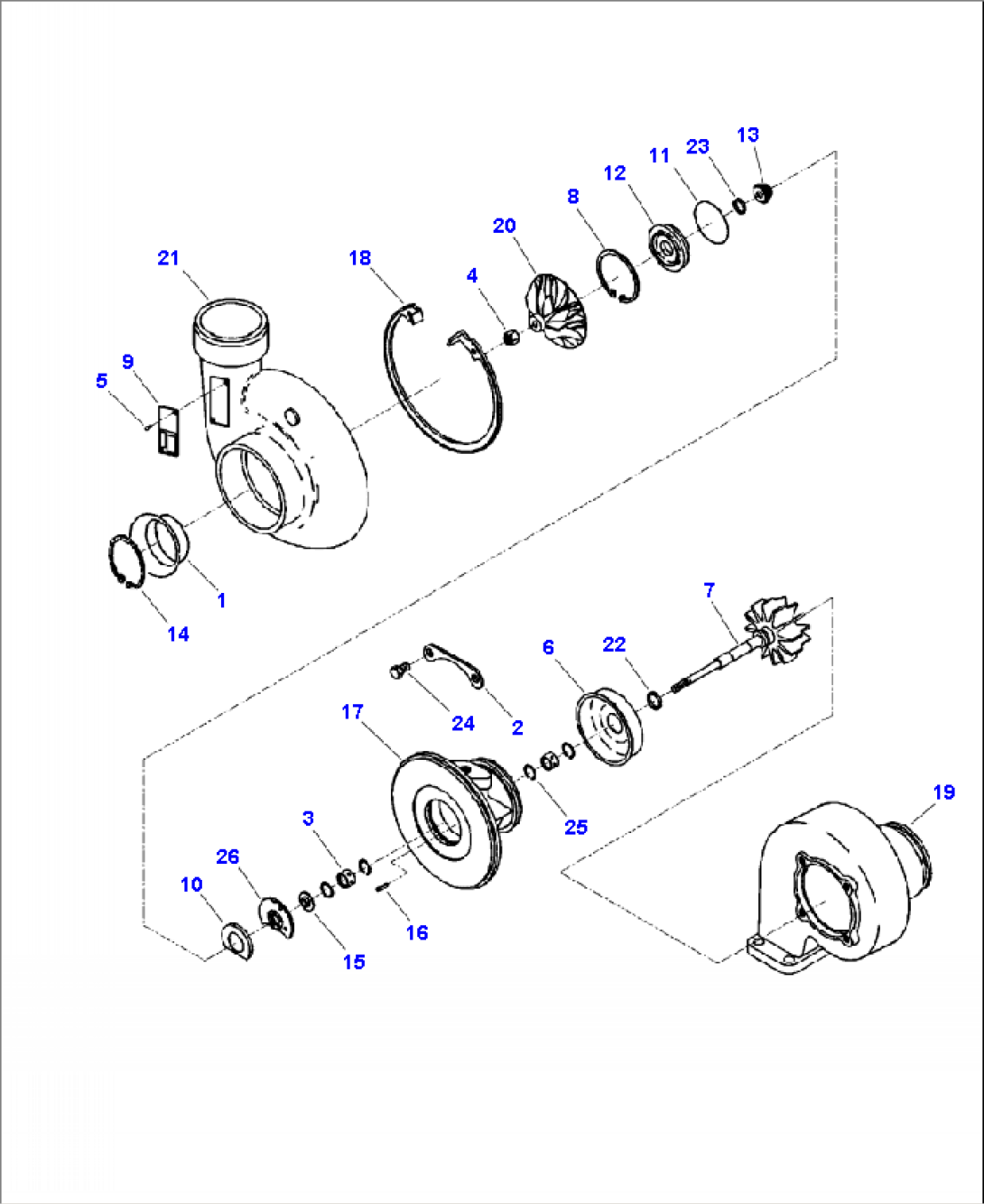

| TURBOCHARGER ( SEE FIG. A1120-A2C8 ) | ||||
| (NSS) | TURBOCHARGER | |||
| 1 | (NSS) | BAFFLE, TURBOCHARGER NOISE | ||
| 2 | 1304 920 H1 | PLATE, CLAMPING | ||
| 3 | 6736-81-8370 | BEARING, TURBOCHARGER | ||
| 4 | 6731-82-8210 | NUT, LOCK | ||
| 5 | 6736-81-8480 | SCREW, DRIVE | ||
| 6 | 6736-81-8430 | SHIELD, TURBOCHARGER HEAT | ||
| 7 | 6736-81-8280 | SHAFT & WHEEL | ||
| 8 | 6733-81-8360 | RING, RETAINING | ||
| 9 | (NSS) | DATAPLATE | ||
| 10 | 6733-81-8330 | BAFFLE, OIL | ||
| 11 | 6733-81-8460 | SEAL, O-RING | ||
| 12 | 6733-81-8270 | PLATE, OIL SEAL | ||
| 13 | 6733-81-8260 | SLINGER, OIL | ||
| 14 | 6743-82-8140 | RING, RETAINING | ||
| 15 | 6735-81-8620 | COLLAR, THRUST | ||
| 16 | 6733-81-8480 | PIN, ROLL | ||
| 17 | (NSS) | HOUSING, TUR BEARING | ||
| 18 | 6735-81-8310 | RING, RETAINING | ||
| 19 | (NSS) | HOUSING TURBINE | ||
| 20 | (NSS) | IMPELLER, TUR COMPRESSOR | ||
| 21 | (NSS) | HOUSING, COMPRESSOR | ||
| 22 | 6736-81-8440 | SEAL, SPLIT RING | ||
| 23 | 6736-81-8320 | SEAL, SPLIT RING | ||
| 24 | 6736-81-8380 | BOLT (M8-1.25x12) | ||
| 25 | 6736-81-8360 | RING, RETAINING | ||
| 26 | 6735-82-8220 | BEARING, TUR THRUST |
