| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-11-4410 | CONNECTOR | ||
| 2 | 6262-11-4430 | BRACKET | ||
| 3 | 01010-81230 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 01010-81030 | BOLT | ||
| 6 | 01643-31032 | WASHER | ||
| 7 | 6152-12-4410 | HOSE | ||
| 8 | 07299-00080 | CLAMP | ||
| 9 | 07042-A0108 | PLUG |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 7 s/n a94001 up
- Engine
- A1205 a2a1 air transfer connection
Поиск по каталогу

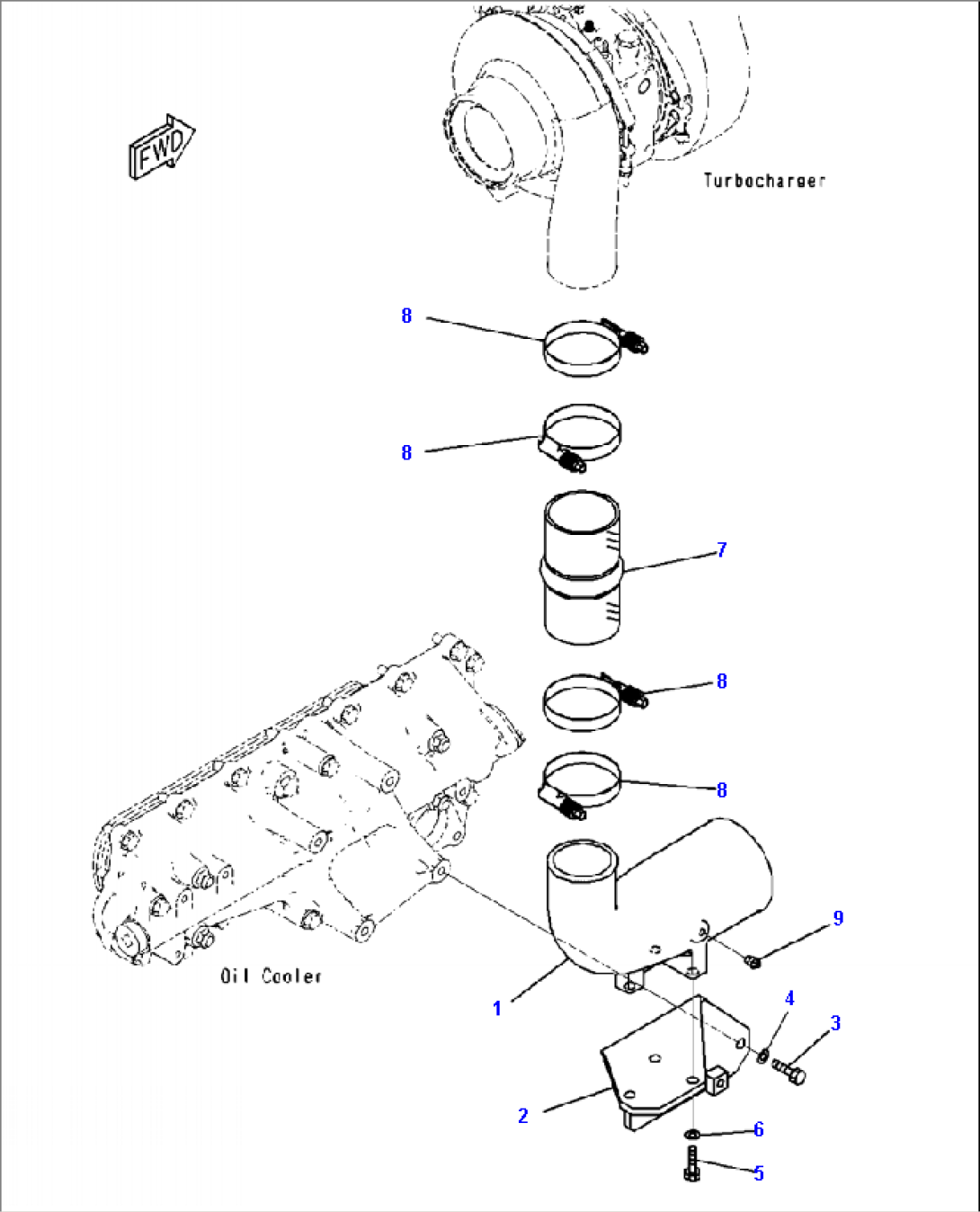

A1205-A2A1 AIR TRANSFER CONNECTION
