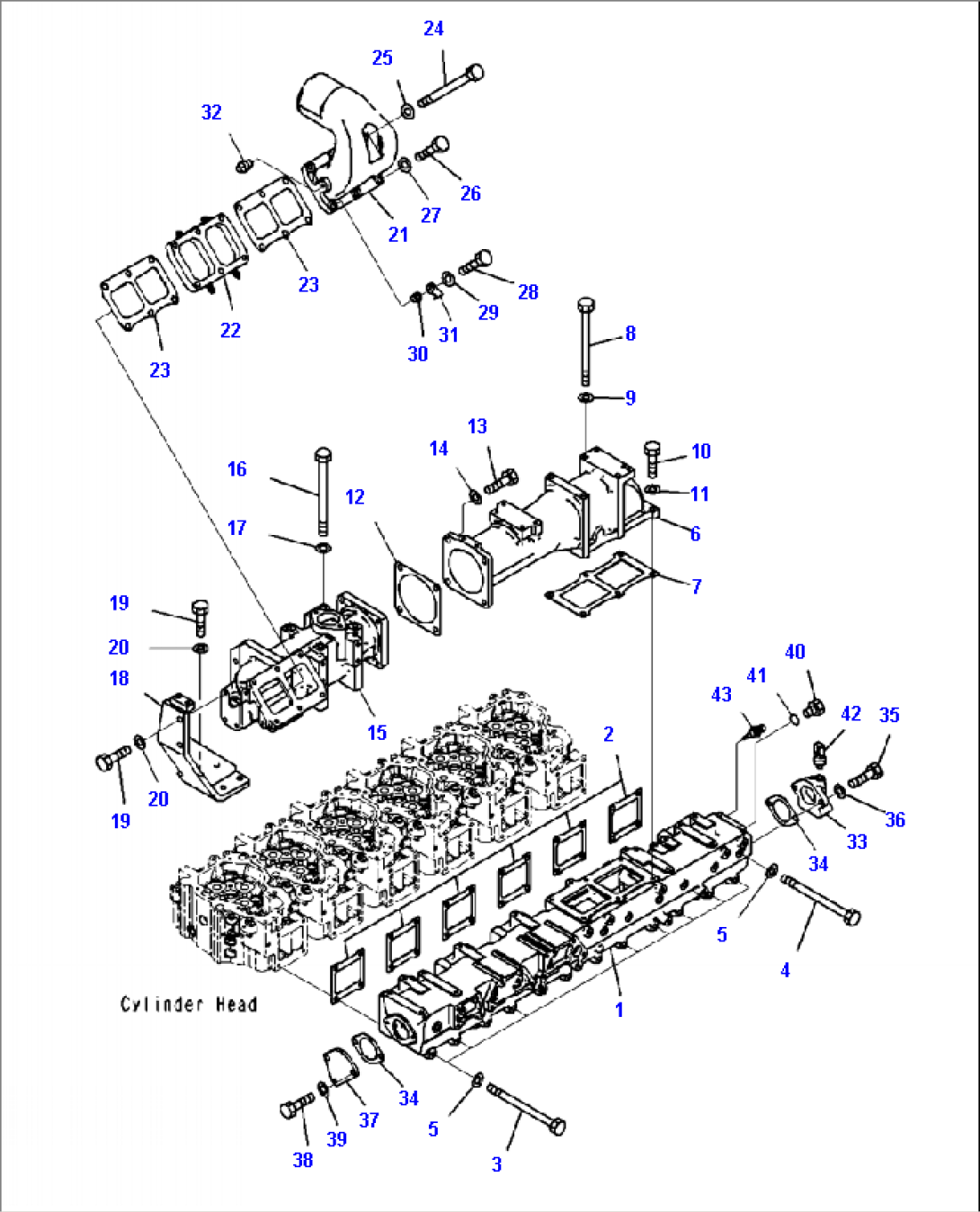

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-11-4110 | MANIFOLD | ||
| 2 | 6210-11-4811 | GASKET | ||
| 3 | 01011-81075 | BOLT | ||
| 4 | 01011-81090 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 6262-11-7410 | CONNECTOR | ||
| 7 | 6211-11-4821 | GASKET | ||
| 8 | 01011-81085 | BOLT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 01010-81040 | BOLT | ||
| 11 | 01643-31032 | WASHER | ||
| 12 | 6261-11-7450 | GASKET | ||
| 13 | 01010-81240 | BOLT | ||
| 14 | 01643-31232 | WASHER | ||
| 15 | 6262-11-7210 | HOUSING | ||
| 16 | 01011-81085 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 6262-11-7270 | BRACKET | ||
| 19 | 01010-81030 | BOLT | ||
| 20 | 01643-31032 | WASHER | ||
| 21 | 6262-11-4320 | CONNECTOR | ||
| 22 | 600-815-3812 | HEATER | ||
| 23 | 6150-11-4821 | GASKET | ||
| 24 | 01011-81095 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 01010-81065 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 01010-81080 | BOLT | ||
| 29 | 01643-31032 | WASHER | ||
| 30 | 6131-12-5920 | SPACER | ||
| 31 | 6251-81-4811 | BRACKET | ||
| 32 | 07042-A0108 | PLUG | ||
| 33 | 6262-11-4120 | BLOCK | ||
| 34 | 6212-61-6662 | GASKET | ||
| 35 | 01010-81035 | BOLT | ||
| 36 | 01643-31032 | WASHER | ||
| 37 | 6262-11-4191 | PLATE | ||
| 38 | 01010-81030 | BOLT | ||
| 39 | 01643-31032 | WASHER | ||
| 40 | 07040-11409 | PLUG | ||
| 41 | 07002-21423 | O-RING | ||
| 6219-81-1971 | SENSOR ASSEMBLY | |||
| 42 | (NSS) | SENSOR | ||
| N/I | 6219-81-1991 | O-RING | ||
| 6560-61-7300 | SENSOR ASSEMBLY | |||
| 43 | (NSS) | SENSOR | ||
| N/I | 6735-21-1930 | O-RING |
