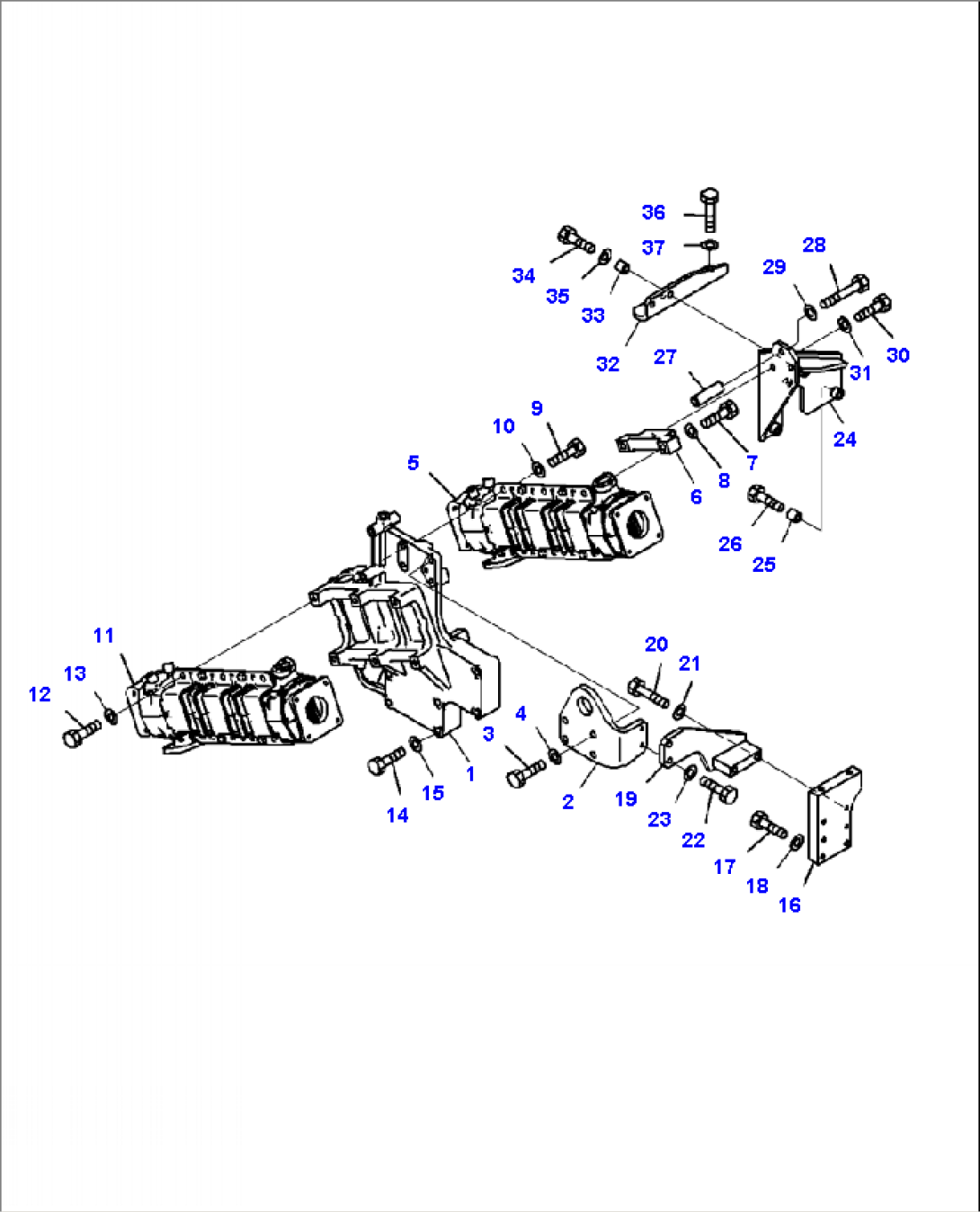

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-21-6110 | BRACKET | ||
| 2 | 6262-21-6940 | PLATE | ||
| 3 | 01010-81240 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 6252-61-7100 | COOLER ASSEMBLY | ||
| 6 | 6262-61-7520 | BRACKET | ||
| 7 | 01010-81255 | BOLT | ||
| 8 | 01643-31232 | WASHER | ||
| 9 | 01010-81230 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 6252-61-7100 | COOLER ASSEMBLY | ||
| 12 | 01010-81230 | BOLT | ||
| 13 | 01643-31232 | WASHER | ||
| 14 | 01010-81275 | BOLT | ||
| 15 | 01643-31232 | WASHER | ||
| 16 | 6262-61-7540 | PLATE | ||
| 17 | 01010-81045 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 6262-21-7590 | BRACKET | ||
| 20 | 01010-81080 | BOLT | ||
| 21 | 01643-31032 | WASHER | ||
| 22 | 01010-81035 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 6262-61-7510 | BRACKET | ||
| 25 | 6631-11-5630 | SPACER | ||
| 26 | 01010-E1055 | BOLT | ||
| 27 | 6262-61-7530 | SPACER | ||
| 28 | 01011-81000 | BOLT | ||
| 29 | 01643-31032 | WASHER | ||
| 30 | 01010-81025 | BOLT | ||
| 31 | 01643-31032 | WASHER | ||
| 32 | 6262-21-7580 | BRACKET | ||
| 33 | 6631-11-5630 | SPACER | ||
| 34 | 01010-81055 | BOLT | ||
| 35 | 01643-31032 | WASHER | ||
| 36 | 01011-E1005 | BOLT | ||
| 37 | 01643-31032 | WASHER |
