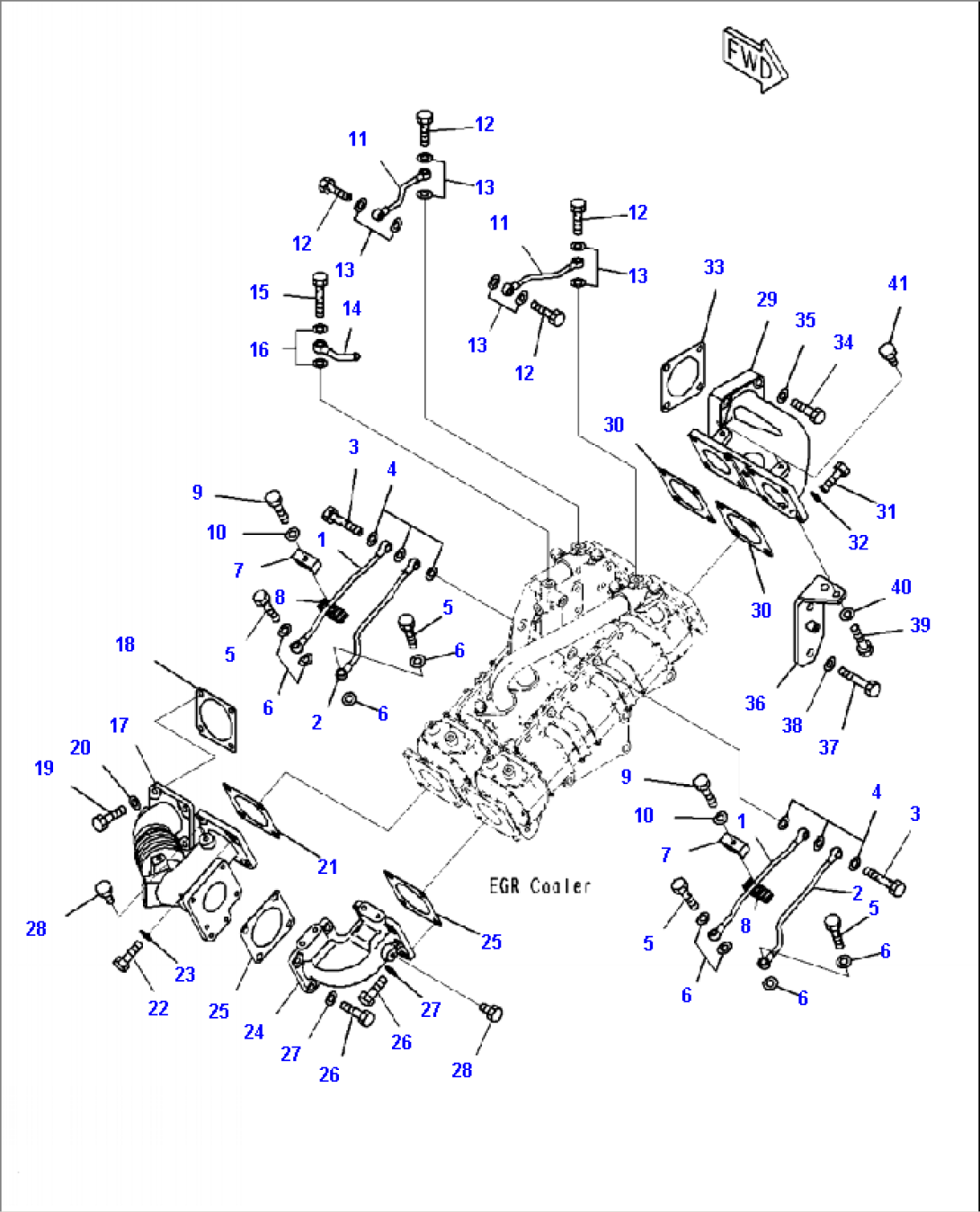

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-61-9220 | TUBE | ||
| 2 | 6262-61-9230 | TUBE | ||
| 3 | 6354-71-5560 | BOLT, JOINT | ||
| 4 | 07005-01212 | GASKET | ||
| 5 | 07206-30812 | BOLT, JOINT | ||
| 6 | 07005-01212 | GASKET | ||
| 7 | 6166-85-6721 | CLAMP | ||
| 8 | 6246-61-9290 | CLAMP | ||
| 9 | 01010-80835 | BOLT | ||
| 10 | 01643-30823 | WASHER | ||
| 11 | 6262-61-9210 | TUBE | ||
| 12 | 07206-30812 | BOLT, JOINT | ||
| 13 | 07005-01212 | GASKET | ||
| 14 | 6262-61-9250 | JOINT | ||
| 15 | 7700-45-1710 | BOLT, JOINT | ||
| 16 | 07005-01412 | GASKET | ||
| 17 | 6262-11-9110 | CONNECTOR | ||
| 18 | 6138-13-4240 | GASKET | ||
| 19 | 01020-11030 | BOLT, STAINLESS | ||
| 20 | 01643-31032 | WASHER | ||
| 21 | 6207-11-5390 | GASKET | ||
| 22 | 01020-11030 | BOLT, STAINLESS | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 6262-11-9160 | CONNECTOR | ||
| 25 | 6207-11-5390 | GASKET | ||
| 26 | 01020-11030 | BOLT, STAINLESS | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 6215-11-5920 | PLUG | ||
| 29 | 6262-11-9170 | CONNECTOR | ||
| 30 | 6207-11-5390 | GASKET | ||
| 31 | 01010-E1030 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | 6207-11-5390 | GASKET | ||
| 34 | 01010-E1050 | BOLT | ||
| 35 | 01643-31032 | WASHER | ||
| 36 | 6262-11-9180 | BRACKET | ||
| 37 | 01010-81280 | BOLT | ||
| 38 | 01643-31232 | WASHER | ||
| 39 | 01010-81025 | BOLT | ||
| 40 | 01643-31032 | WASHER | ||
| 41 | 6215-11-5920 | PLUG |
