| Item | Part No. | Part Name | Qty | Serial No. |

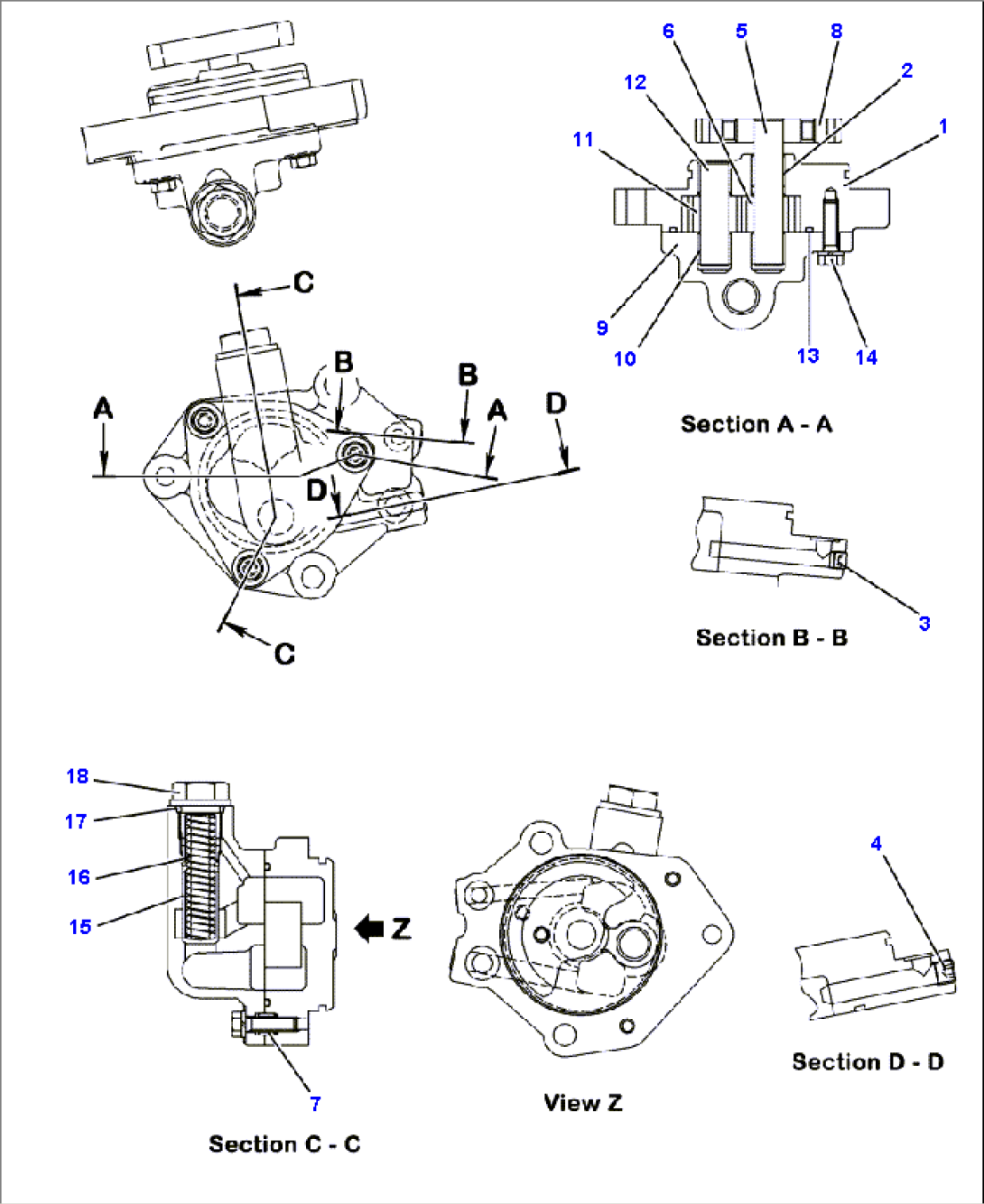

| 6251-51-9100 | OIL PUMP ASSEMBLY | |||
| PML160-12400 | CASE ASSEMBLY, GEAR | |||
| (NSS) | CASE ASSEMBLY | |||
| 1 | (NSS) | CASE | ||
| 2 | (NSS) | BUSHING | ||
| 3 | (NSS) | PLUG | ||
| 4 | (NSS) | PLUG | ||
| (NSS) | GEAR ASSEMBLY, DRIVE | |||
| 5 | (NSS) | SHAFT, DRIVE | ||
| 6 | (NSS) | GEAR, DRIVE | ||
| 7 | (NSS) | PIN, DOWEL | ||
| 8 | (NSS) | GEAR, HEAD | ||
| PML152-07801 | COVER ASSEMBLY | |||
| 9 | (NSS) | COVER | ||
| 10 | (NSS) | BUSHING | ||
| 6261-51-9200 | GEAR ASSEMBLY, DRIVEN | |||
| 11 | (NSS) | GEAR, DRIVEN | ||
| 12 | (NSS) | SHAFT, DRIVEN | ||
| 13 | 6261-51-9230 | O-RING | ||
| 14 | PML199-00210 | BOLT | ||
| 15 | 6261-51-2140 | VALVE | ||
| 16 | PML137-05901 | SPRING | ||
| 17 | 07002-22434 | O-RING | ||
| 18 | PML139-01700 | PLUG |
