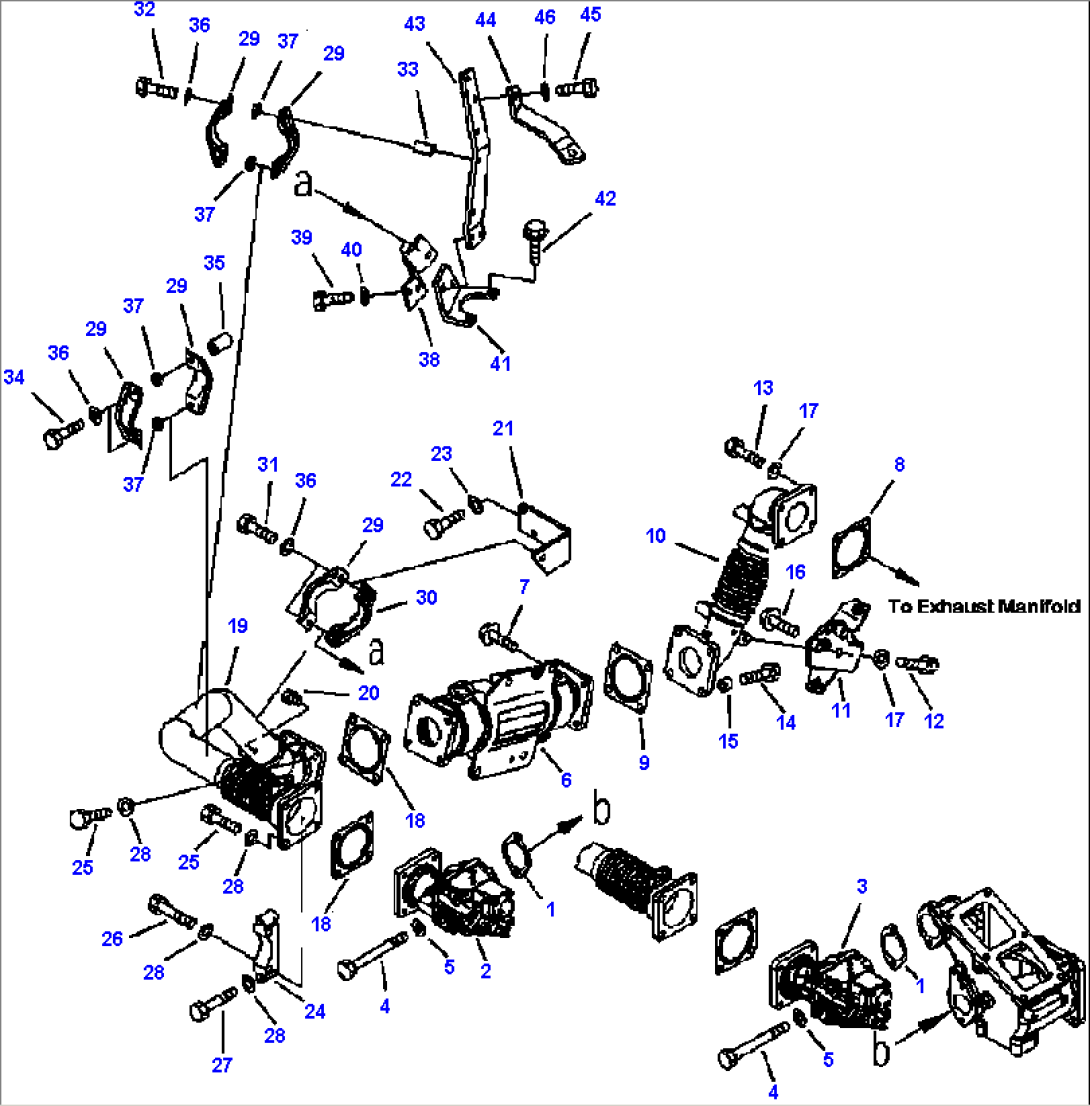

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6166-61-6341 | GASKET | ||
| 2 | 6261-41-4900 | VALVE ASSEMBLY | ||
| 3 | 6261-41-9500 | VALVE ASSEMBLY | ||
| 4 | 01011-E1005 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 6261-61-7110 | COOLER ASSEMBLY | ||
| 7 | 01435-01220 | BOLT | ||
| 8 | 6138-13-4240 | GASKET | ||
| 9 | 6207-11-5390 | GASKET | ||
| 10 | 6261-11-9120 | TUBE | ||
| 11 | 6261-11-9150 | BRACKET | ||
| 12 | 01010-E1025 | BOLT, STAINLESS | ||
| 13 | 01020-11040 | BOLT, STAINLESS | ||
| 14 | 01010-E1050 | BOLT, STAINLESS | ||
| 15 | 6631-11-5630 | SPACER | ||
| 16 | 01435-01035 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 6207-11-5390 | GASKET | ||
| 19 | 6261-11-9422 | TUBE, BYPASS | ||
| 20 | 6215-11-5920 | PLUG | ||
| 21 | 6261-11-9950 | BRACKET | ||
| 22 | 01010-E1020 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 6251-11-9150 | PLATE | ||
| 25 | 01010-E1030 | BOLT | ||
| 26 | 01010-E1060 | BOLT | ||
| 27 | 01010-E1050 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 6261-11-9870 | CLAMP | ||
| 30 | 6261-11-9880 | CLAMP | ||
| 31 | 01010-E1025 | BOLT | ||
| 32 | 01010-E1060 | BOLT | ||
| 33 | 203-54-11170 | SPACER | ||
| 34 | 01010-E1085 | BOLT | ||
| 35 | 6261-11-9270 | SPACER | ||
| 36 | 01643-31032 | WASHER | ||
| 37 | 22D-62-12120 | SPACER | ||
| 38 | 6261-11-2490 | BRACKET | ||
| 39 | 01010-E1030 | BOLT | ||
| 40 | 01643-31032 | WASHER | ||
| 41 | 6261-11-6841 | BRACKET | ||
| 42 | 01435-01035 | BOLT | ||
| 43 | 6261-11-6810 | BRACKET | ||
| 44 | 6261-11-6820 | BRACKET | ||
| 45 | 01010-E1025 | BOLT | ||
| 46 | 01643-31032 | WASHER | ||
| F1 - FOR MACHINES WITH ENGINE SERIAL NUMBERS 532432 AND UP. | ||||
| F2 - FOR MACHINES WITH ENGINE SERIAL NUMBERS 530699 AND UP. | ||||
| F3 - FOR MACHINES WITH ENGINE SERIAL NUMBERS 533487 AND UP. |
