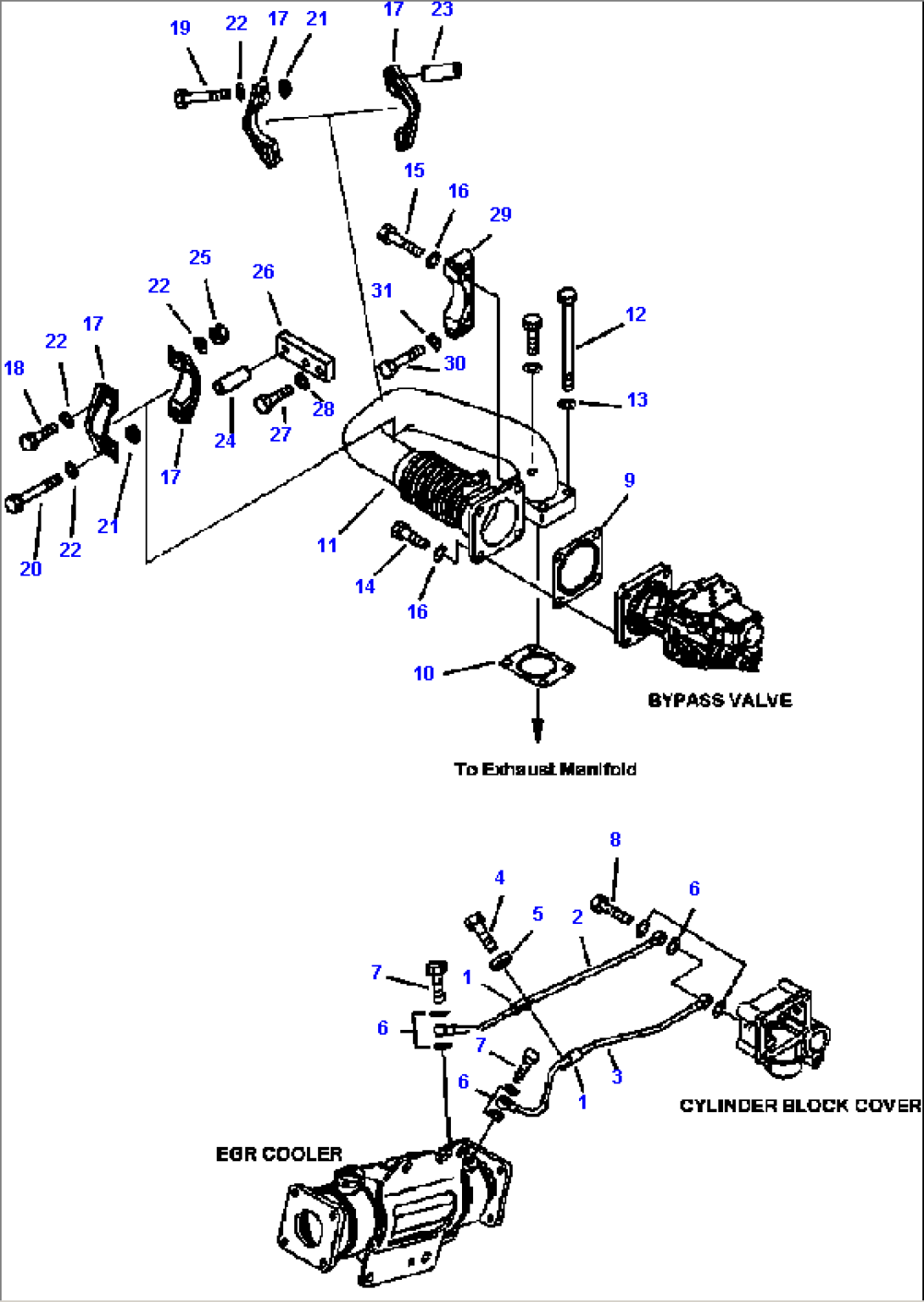

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6210-51-8320 | CLIP | ||
| 2 | 6261-61-7310 | TUBE | ||
| 3 | 6261-61-7320 | TUBE | ||
| 4 | 01435-01025 | BOLT | ||
| 5 | 6162-73-5940 | SPACER | ||
| 6 | 07005-01212 | SEAL, WASHER | ||
| 7 | 07206-30812 | BOLT, JOINT | ||
| 8 | 6354-71-5560 | JOINT | ||
| 9 | 6207-11-5390 | GASKET | ||
| 10 | 6261-11-9520 | GASKET | ||
| 11 | 6261-11-9412 | TUBE, BYPASS VALVE | ||
| 12 | 01020-11050 | BOLT | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 01010-E1030 | BOLT | ||
| 15 | 01010-E1060 | BOLT | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 6261-11-9870 | CLAMP | ||
| 18 | 01010-E1025 | BOLT | ||
| 19 | 01010-E1080 | BOLT | ||
| 20 | 01010-E1075 | BOLT | ||
| 21 | 22D-62-12120 | SPACER | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 6150-81-6940 | SPACER | ||
| 24 | 6261-11-9070 | SPACER | ||
| 25 | 01580-01008 | NUT | ||
| 26 | 6261-21-3990 | PLATE | ||
| 27 | 01010-81035 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 6251-11-9150 | PLATE | ||
| 30 | 01010-E1050 | BOLT | ||
| 31 | 01643-31032 | WASHER |
