| Item | Part No. | Part Name | Qty | Serial No. |

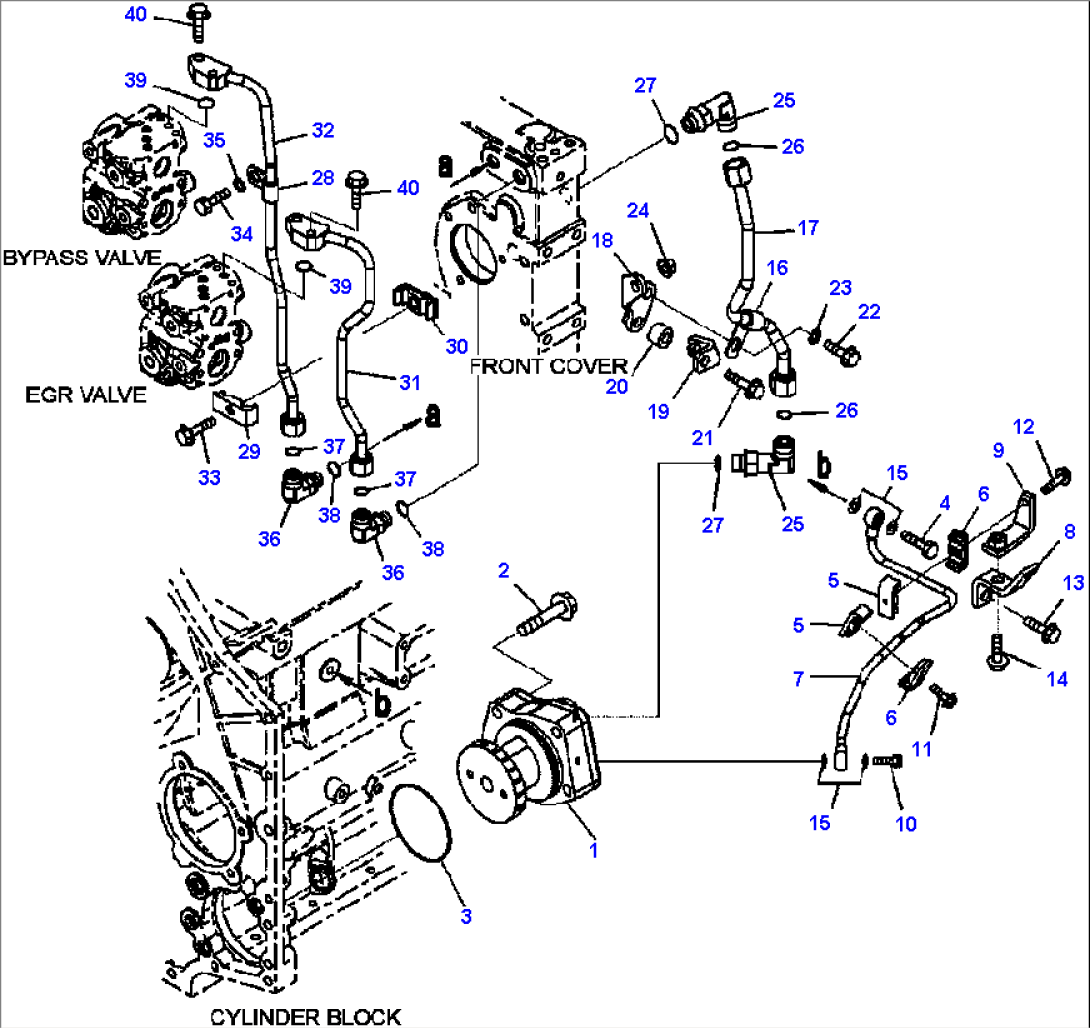

| 1 | PUMP ASSEMBLY (SEE FIG. A1216-B8C2) | |||
| 2 | 01435-01255 | BOLT | ||
| 3 | 07000-72085 | O-RING | ||
| 4 | 6215-11-6560 | BOLT, JOINT | ||
| 5 | 6217-71-6640 | CLAMP | ||
| 6 | 6217-71-6650 | CLAMP | ||
| 7 | 6261-51-9210 | TUBE | ||
| 8 | 6261-71-5420 | BRACKET | ||
| 9 | 6261-71-5430 | BRACKET | ||
| 10 | 6934-72-7190 | BOLT | ||
| 11 | 01435-00625 | BOLT | ||
| 12 | 01435-00630 | BOLT | ||
| 13 | 01435-01020 | BOLT | ||
| 14 | 01435-01025 | BOLT | ||
| 15 | 07005-01012 | GASKET | ||
| 16 | 6162-63-8820 | CLIP | ||
| 17 | 6261-51-9310 | TUBE | ||
| 18 | 6261-51-9450 | BRACKET | ||
| 19 | 6261-51-9460 | BRACKET | ||
| 20 | 195-01-14540 | COLLAR | ||
| 21 | 01435-01040 | BOLT | ||
| 22 | 01435-01025 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 01584-01008 | NUT | ||
| 25 | 02782-1042A | ELBOW | ||
| 26 | 02896-21012 | O-RING | ||
| 27 | 07002-21823 | O-RING | ||
| 28 | 6151-51-8540 | CLIP | ||
| 29 | 6166-75-6821 | CLAMP | ||
| 30 | 6261-51-9481 | CLAMP | ||
| 31 | 6261-51-9320 | TUBE | ||
| 32 | 6261-51-9410 | TUBE | ||
| 33 | 01435-00835 | BOLT | ||
| 34 | 01010-81030 | BOLT | ||
| 35 | 01643-31032 | WASHER | ||
| 36 | 02782-10311 | ELBOW | ||
| 37 | 02896-21009 | O-RING | ||
| 38 | 07002-21423 | O-RING | ||
| 39 | 07000-E2012 | O-RING | ||
| 40 | 01435-00825 | BOLT | ||
| F1 - FOR MACHINES WITH ENGINE SERIAL NUMBERS 535887 AND UP. |
