| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1307 682 H1 | PIPE, AIR TRANSFER | ||
| 2 | 1240 101 H1 | PLUG | ||
| 3 | 6738-11-4370 | O-RING, SEAL | ||
| 4 | 6738-11-4390 | NUT, LOCK | ||
| 5 | 1307 683 H1 | CLAMP |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc300ll 7l s/n a85001 up
- Engine
- A153w 01a0 air transfer connection
Поиск по каталогу

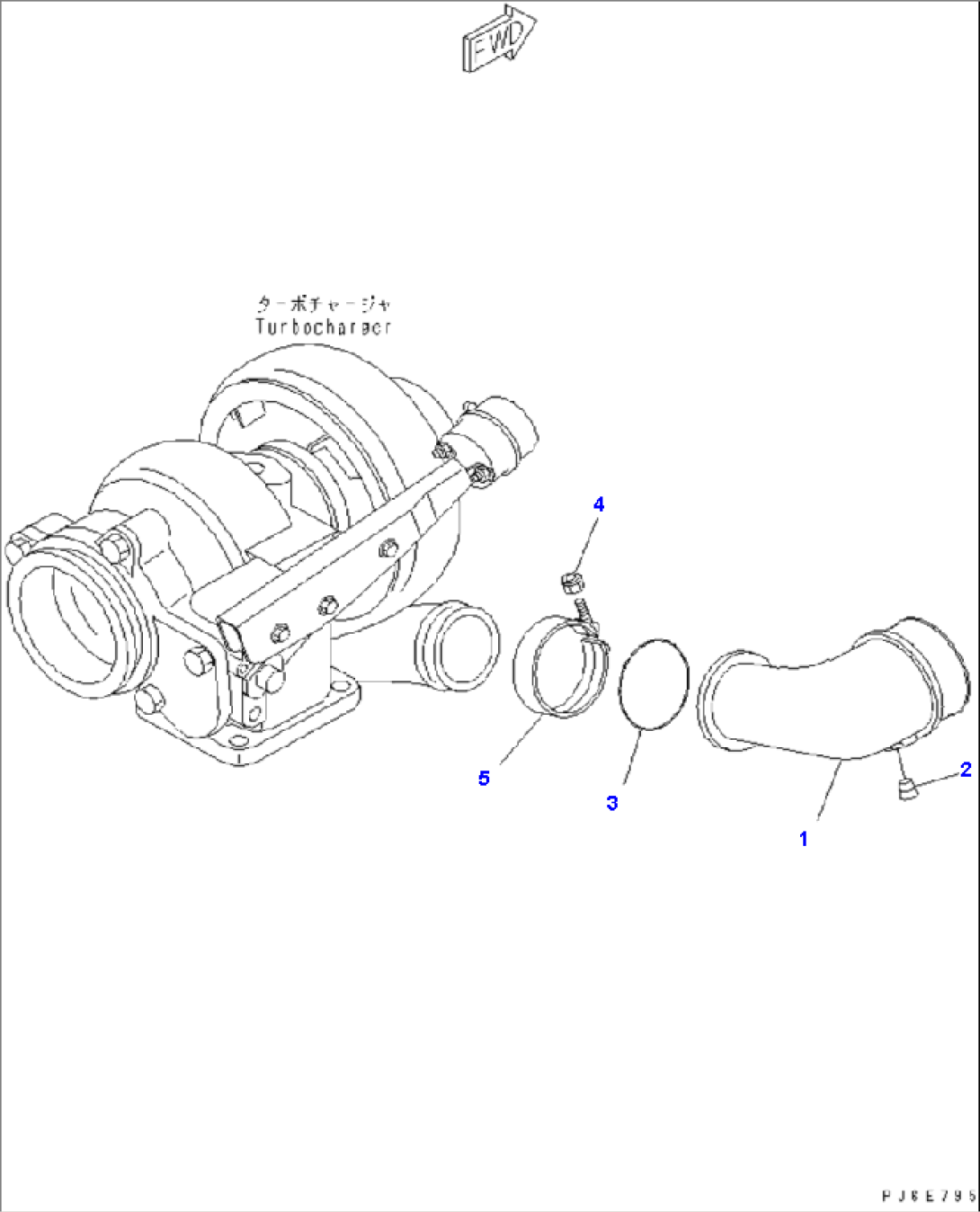

A153W-01A0 AIR TRANSFER CONNECTION
