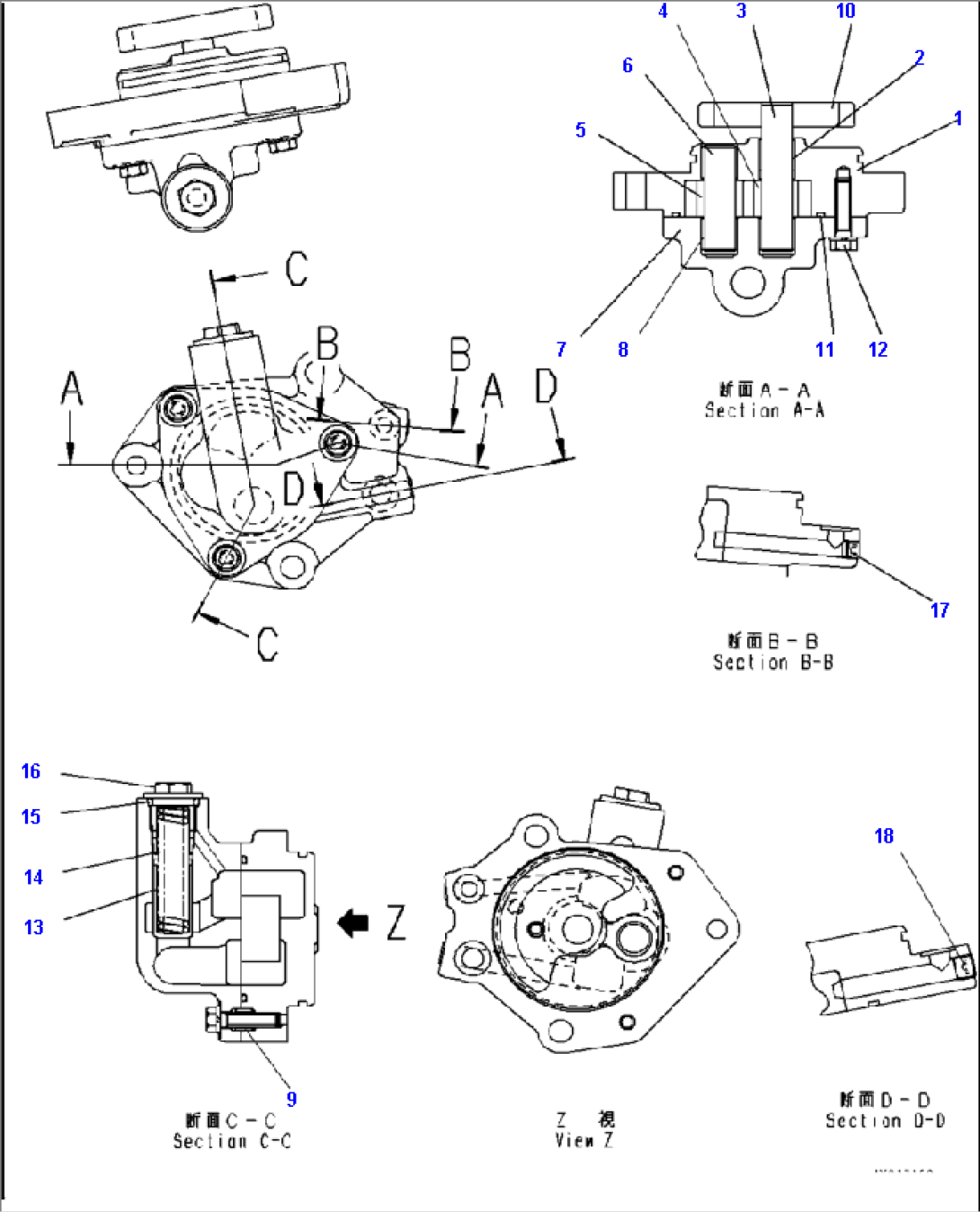

| Item | Part No. | Part Name | Qty | Serial No. |
| 6252-51-9100 | PUMP ASSEMBLY | |||
| PML160-12420 | PUMP ASSEMBLY | |||
| (NSS) | CASE ASSEMBLY | |||
| 1 | (NSS) | CASE | ||
| 2 | (NSS) | BUSHING | ||
| (NSS) | GEAR ASSEMBLY | |||
| 3 | (NSS) | SHAFT | ||
| 4 | (NSS) | GEAR | ||
| PML156-07220 | GEAR ASSEMBLY | |||
| 5 | (NSS) | GEAR | ||
| 6 | (NSS) | SHAFT | ||
| PML152-07810 | COVER ASSEMBLY | |||
| 7 | (NSS) | COVER | ||
| 8 | (NSS) | BUSHING | ||
| 9 | (NSS) | PIN, DOWEL | ||
| 10 | (NSS) | GEAR | ||
| 11 | PML172-00900 | O-RING | ||
| 12 | PMJ199-16200 | BOLT | ||
| 13 | PML136-00201 | VALVE | ||
| 14 | PML137-05901 | SPRING | ||
| 15 | 07002-22434 | O-RING | ||
| 16 | PML139-01710 | PLUG | ||
| 17 | (NSS) | PLUG | ||
| 18 | (NSS) | PLUG |
