| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6261-61-3842 | BRACKET | ||
| 2 | 6261-21-3920 | PLATE, HANGER | ||
| 3 | 01010-81235 | BOLT | ||
| 4 | 01010-81030 | BOLT | ||
| 5 | 01010-81045 | BOLT | ||
| 6 | 01643-31232 | WASHER | ||
| 7 | 6261-21-3970 | GASKET |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 6 s/n a92001 a93000
- Engine
- A1550 f4a4 exhaust gas recirculation (egr) valve engine front hanger
Поиск по каталогу

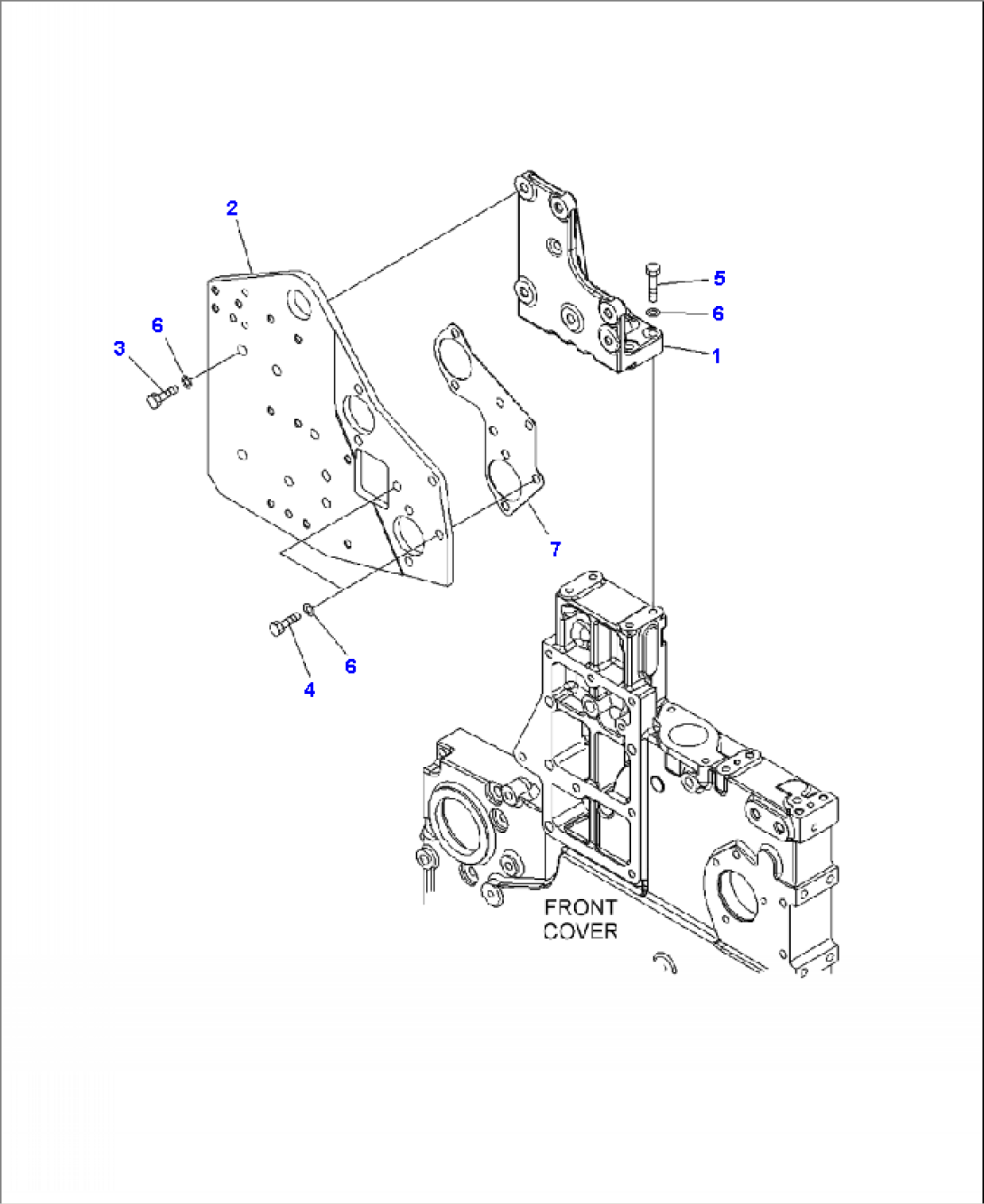

A1550-F4A4 EXHAUST GAS RECIRCULATION (EGR) VALVE ENGINE FRONT HANGER
