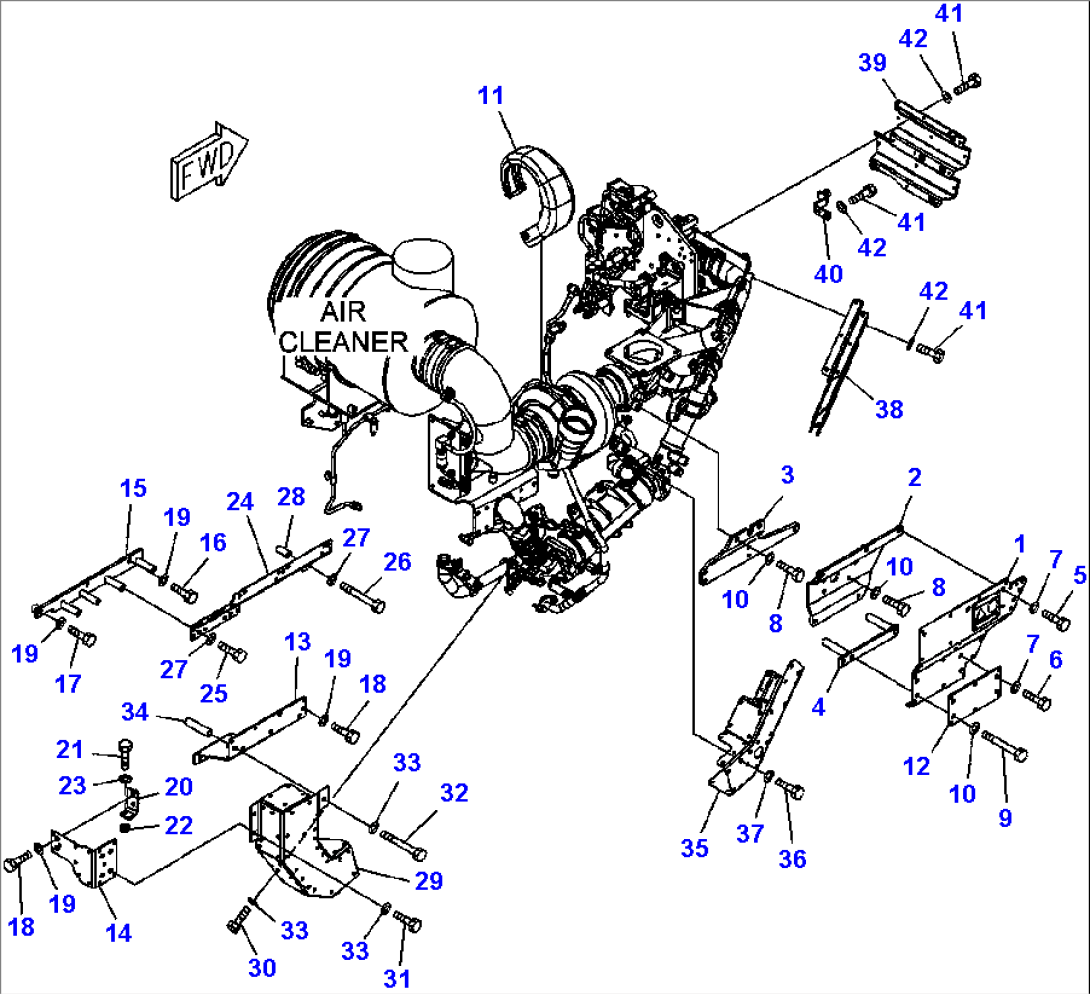

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6261-11-8571 | COVER | ||
| 2 | 6261-11-8220 | BRACKET | ||
| 3 | 6261-11-8640 | BRACKET | ||
| 4 | 6261-11-8650 | BRACKET | ||
| 5 | 01010-81025 | BOLT | ||
| 6 | 01010-81035 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 01010-E1025 | BOLT | ||
| 9 | 01011-81040 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 6261-11-8430 | COVER | ||
| 12 | 6261-11-8230 | COVER | ||
| 13 | 6261-11-8410 | COVER | ||
| 14 | 6261-11-8880 | COVER | ||
| 15 | 6261-11-8420 | BRACKET | ||
| 16 | 01010-81025 | BOLT | ||
| 17 | 01010-81045 | BOLT | ||
| 18 | 01010-81025 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 6261-11-8490 | BRACKET | ||
| 21 | 01010-81040 | BOLT | ||
| 22 | 6132-21-4630 | SPACER | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 6261-11-8620 | COVER | ||
| 25 | 01010-81025 | BOLT | ||
| 26 | 01011-81020 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 6143-11-4290 | SPACER | ||
| 29 | 6261-11-8510 | COVER | ||
| 30 | 01010-81025 | BOLT | ||
| 31 | 01010-81030 | BOLT | ||
| 32 | 01011-81020 | BOLT | ||
| 33 | 01643-31032 | WASHER | ||
| 34 | 6215-71-6190 | SPACER | ||
| 35 | 6261-11-8710 | COVER | ||
| 36 | 01010-81025 | BOLT | ||
| 37 | 01643-31032 | WASHER | ||
| 38 | 6261-11-8770 | COVER | ||
| 39 | 6261-11-8330 | COVER | ||
| 40 | 6261-11-8740 | BRACKET | ||
| 41 | 01010-81025 | BOLT | ||
| 42 | 01643-31032 | WASHER |
