| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6755-11-5210 | BRACKET | ||
| 2 | 6215-11-5920 | PLUG | ||
| 3 | 6755-11-5230 | BRACKET | ||
| 4 | 01435-01025 | BOLT | ||
| 5 | 01435-01075 | BOLT | ||
| 6 | 6755-11-5300 | TUBE | ||
| 7 | 6746-11-5330 | PLUG |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa270 7 s/n a27001 up
- Engine
- A1610 002002 komatsu diesel particulate filter (kdpf) bracket
Поиск по каталогу

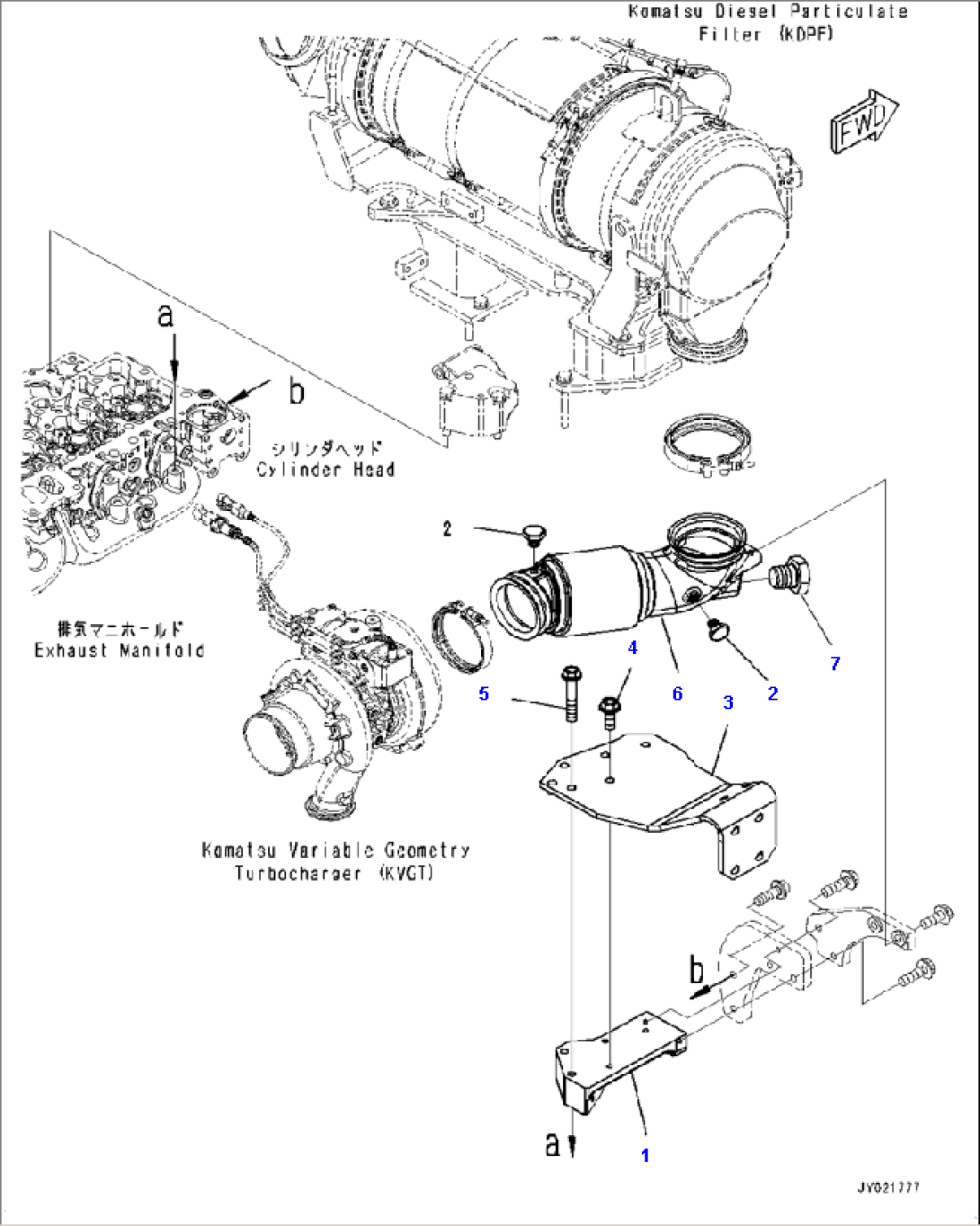

A1610-002002 KOMATSU DIESEL PARTICULATE FILTER (KDPF) BRACKET
