| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6735-21-5530 | PLUG, EXPANSION | ||
| 2 | 6732-21-3190 | COVER, ACCESS HOLE | ||
| 3 | 6732-21-3220 | SEAL, RECTANGULAR RING | ||
| 4 | 6745-21-7210 | CONNECTOR | ||
| 5 | 6736-21-3360 | SEAL, RECTANGULAR RING | ||
| 6 | 6732-11-1720 | BOLT (M12-1.75x30) |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc300hd 8 s/n a87001 up
- Engine
- A2102 a3a0 cylinder block access hole cover and oil drain connection
Поиск по каталогу

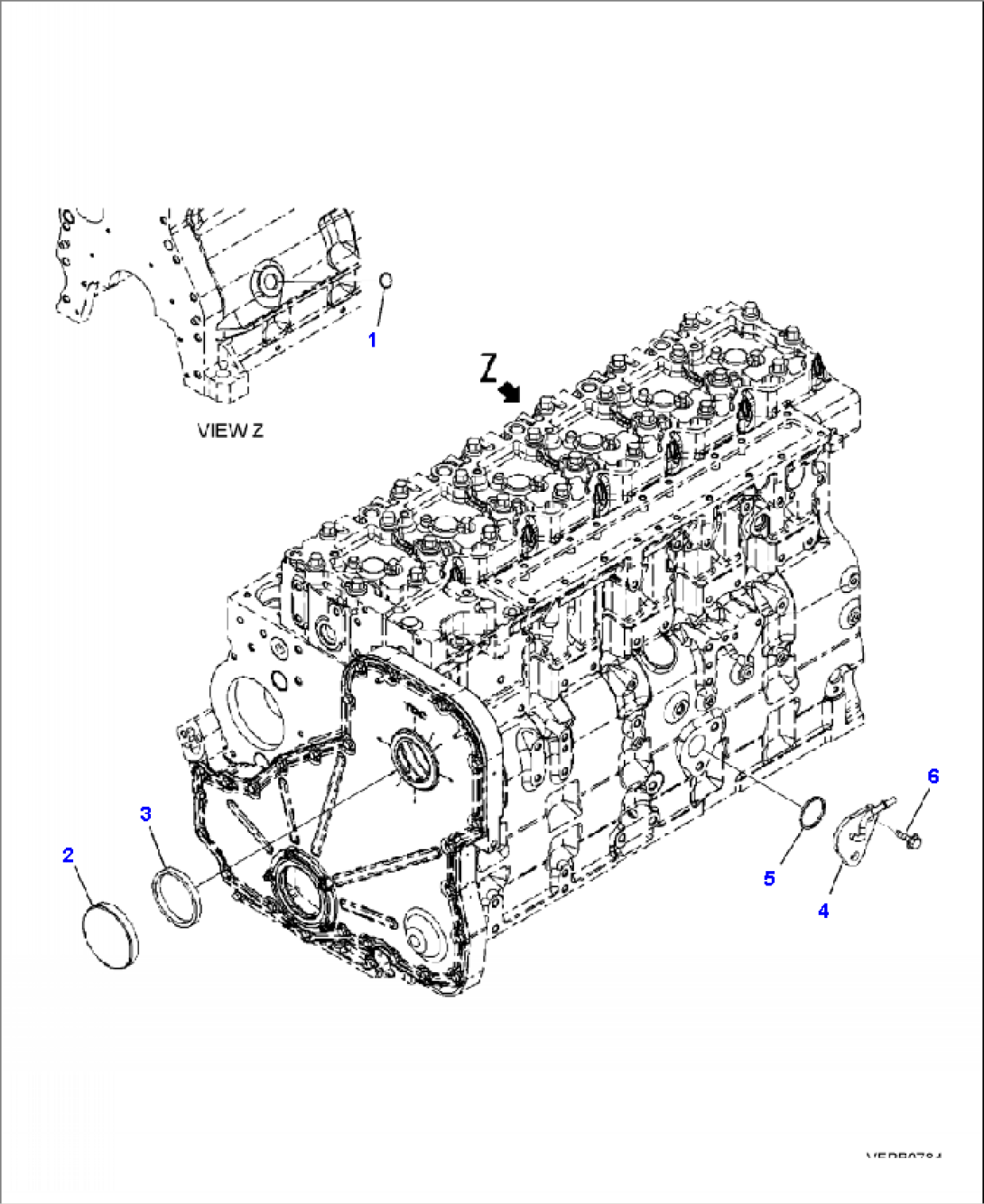

A2102-A3A0 CYLINDER BLOCK ACCESS HOLE COVER AND OIL DRAIN CONNECTION
