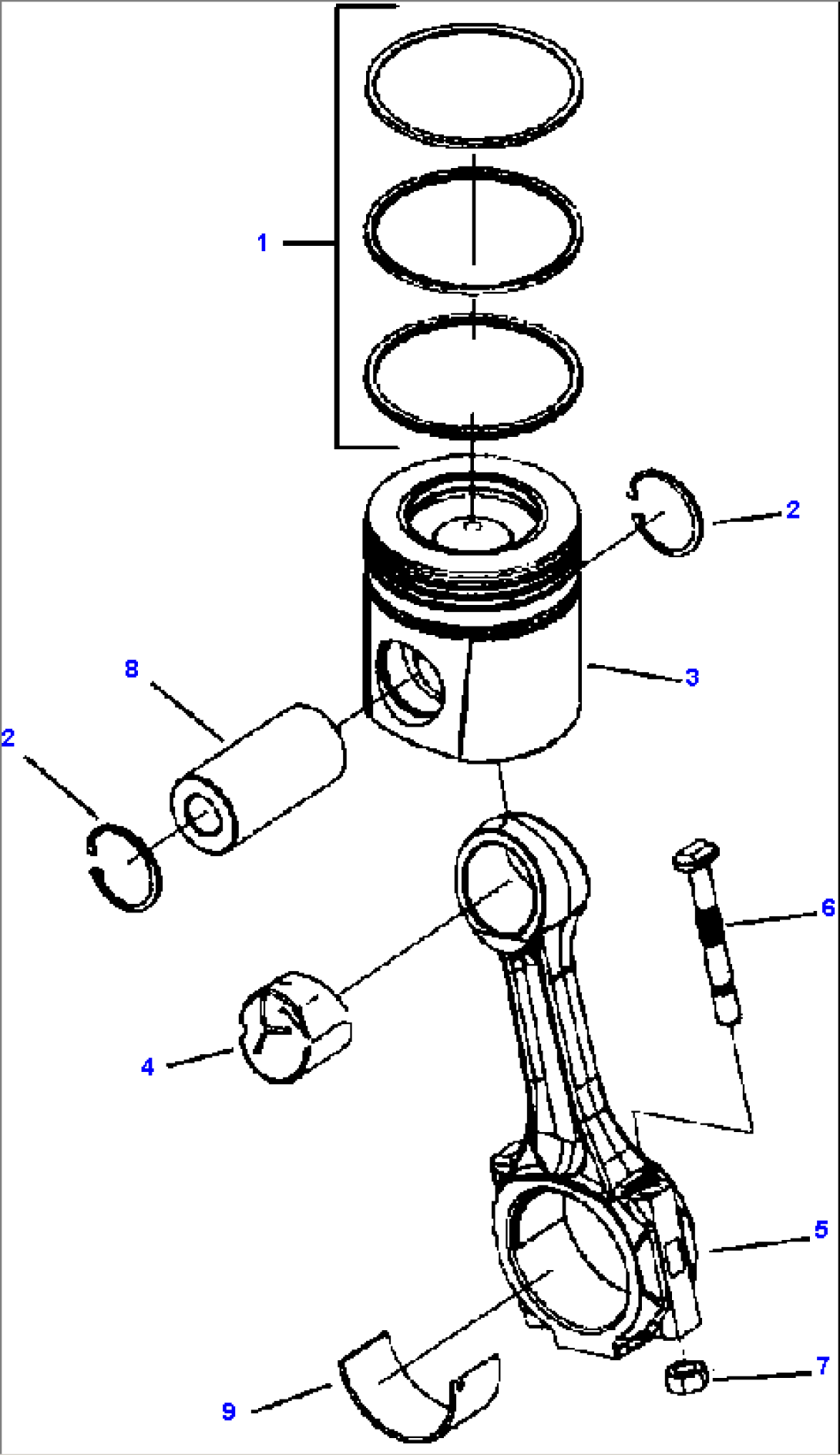

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6745-31-2010 | SET, PISTON RING | ||
| (NSS) | RING, OIL PISTON | |||
| (NSS) | RING, COMPRESSION PISTON | |||
| (NSS) | RING, COMPRESSION PISTON | |||
| 2 | 6742-01-5309 | RING, RETAINING | ||
| 3 | 6745-32-2100 | PISTON, ENGINE | ||
| 6743-31-3101 | ROD, ENGINE CONNECTING | |||
| 4 | 6743-31-3121 | BUSHING | ||
| 5 | (NSS) | ROD, ENGINE CONNECTING | ||
| 6 | 1304 869 H1 | BOLT | ||
| 7 | 6742-01-4340 | NUT | ||
| 8 | 6745-31-2140 | PIN | ||
| 9 | 6743-31-3210 | BEARING |
