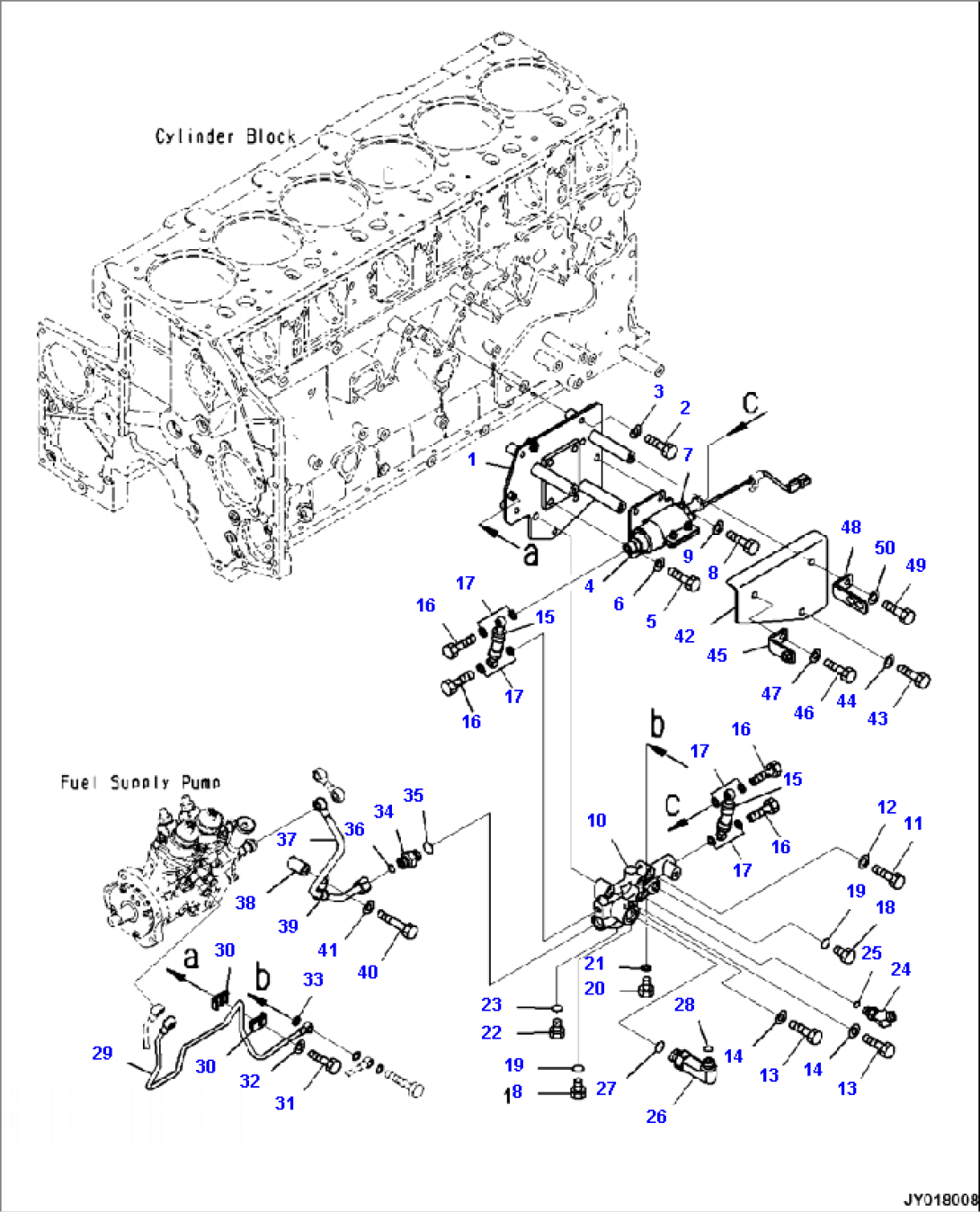

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-71-6310 | BRACKET | ||
| 2 | 01010-81050 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 600-815-9180 | PUMP ASSEMBLY | ||
| 5 | 01010-81035 | BOLT | ||
| 6 | 01643-31032 | WASHER | ||
| 7 | 600-051-2060 | CLIP | ||
| 8 | 01010-81020 | BOLT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 6262-71-6330 | BLOCK | ||
| 11 | 01010-81080 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 01010-81055 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 6251-71-7710 | HOSE, INLET | ||
| 16 | 07206-30812 | BOLT, JOINT | ||
| 17 | 07005-01212 | GASKET | ||
| 18 | 07040-11409 | PLUG | ||
| 19 | 07002-11423 | O-RING | ||
| 20 | 07040-11209 | PLUG | ||
| 21 | 07005-01212 | GASKET | ||
| 22 | 07040-12012 | PLUG | ||
| 23 | 07002-12034 | O-RING | ||
| 24 | 11Y-62-12510 | ELBOW | ||
| 25 | 07002-11423 | O-RING | ||
| 26 | 02782-10426 | ELBOW | ||
| 27 | 07002-12434 | O-RING | ||
| 28 | 02896-21012 | O-RING | ||
| 29 | 6262-71-6250 | TUBE | ||
| 30 | 6217-71-6650 | CLAMP | ||
| 31 | 01010-80630 | BOLT | ||
| 32 | 01643-30623 | WASHER | ||
| 33 | 07005-01212 | GASKET | ||
| 34 | 02781-00422 | UNION | ||
| 35 | 07002-12034 | O-RING | ||
| 36 | 02896-21012 | O-RING | ||
| 37 | 6262-71-6230 | TUBE | ||
| 38 | 6150-81-6920 | SPACER | ||
| 39 | 600-052-3120 | CLIP | ||
| 40 | 01010-81065 | BOLT | ||
| 41 | 01643-31032 | WASHER | ||
| 42 | 6262-71-6420 | COVER | ||
| 43 | 01010-81020 | BOLT | ||
| 44 | 01643-31032 | WASHER | ||
| 45 | 6262-71-6460 | BRACKET | ||
| 46 | 01010-81025 | BOLT | ||
| 47 | 01643-31032 | WASHER | ||
| 48 | 6262-71-6480 | PLATE | ||
| 49 | 01010-81025 | BOLT | ||
| 50 | 01643-31032 | WASHER |
