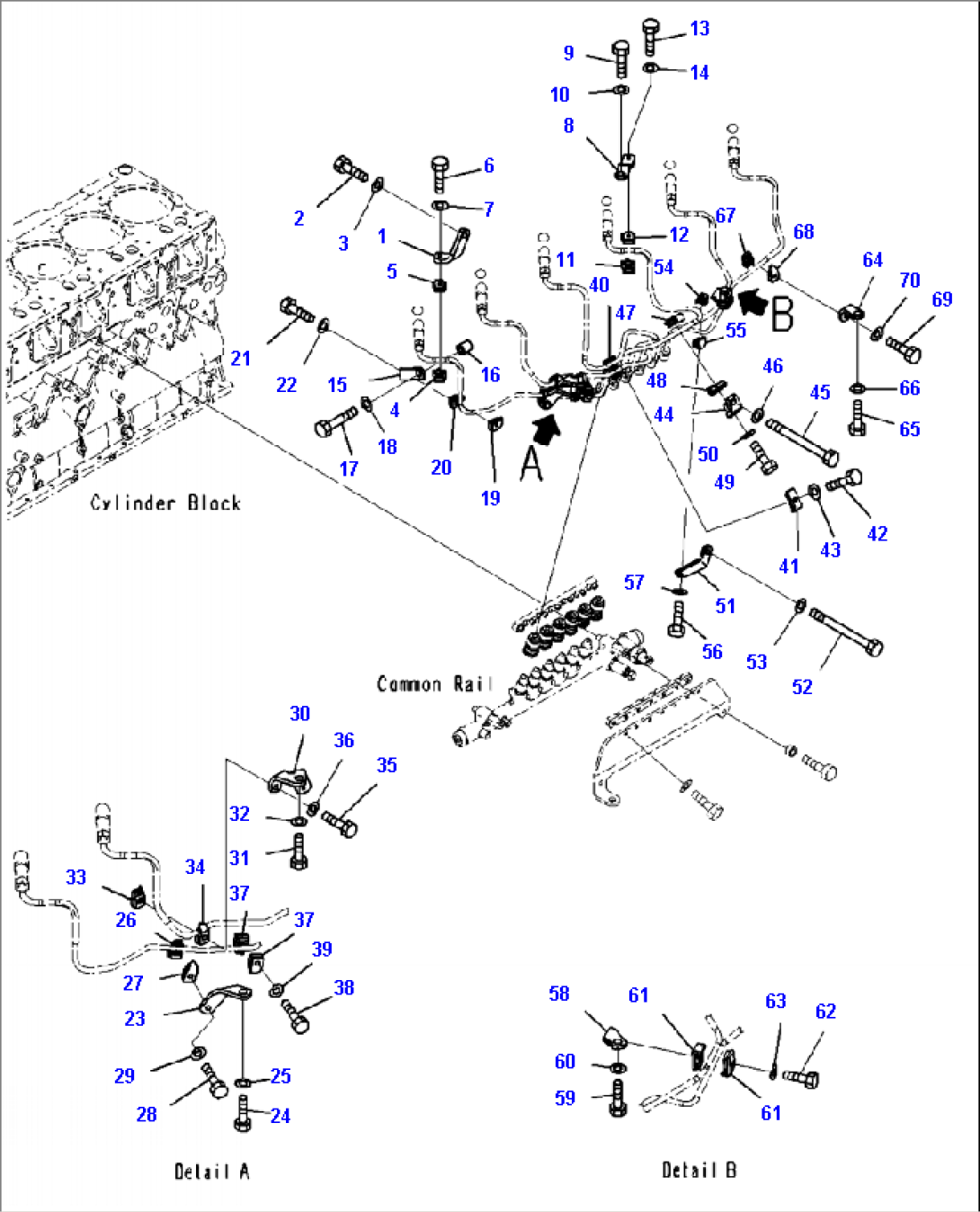

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6262-71-5730 | BRACKET | ||
| 2 | 01010-81025 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 6261-71-6660 | CLAMP | ||
| 5 | 6261-71-6670 | CLAMP | ||
| 6 | 01010-80635 | BOLT | ||
| 7 | 01643-30623 | WASHER | ||
| 8 | 6261-71-5650 | BRACKET | ||
| 9 | 01010-81025 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 6261-71-6660 | CLAMP | ||
| 12 | 6261-71-6670 | CLAMP | ||
| 13 | 01010-80630 | BOLT | ||
| 14 | 01643-30623 | WASHER | ||
| 15 | 6261-71-5710 | BRACKET | ||
| 16 | 175-79-83760 | SPACER | ||
| 17 | 01010-81055 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 6217-71-6660 | CLAMP | ||
| 20 | 6217-71-6670 | CLAMP | ||
| 21 | 01010-80630 | BOLT | ||
| 22 | 01643-30623 | WASHER | ||
| 23 | 6262-71-5790 | BRACKET | ||
| 24 | 01010-81025 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 6217-71-6660 | CLAMP | ||
| 27 | 6217-71-6670 | CLAMP | ||
| 28 | 01010-80630 | BOLT | ||
| 29 | 01643-30623 | WASHER | ||
| 30 | 6262-71-5760 | PLATE | ||
| 31 | 01010-81025 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | 6217-71-6660 | CLAMP | ||
| 34 | 6217-71-6670 | CLAMP | ||
| 35 | 01010-80630 | BOLT | ||
| 36 | 01643-30623 | WASHER | ||
| 37 | 6217-71-6670 | CLAMP | ||
| 38 | 01010-80630 | BOLT | ||
| 39 | 01643-30623 | WASHER | ||
| 40 | 6217-71-6640 | CLAMP | ||
| 41 | 6217-71-6650 | CLAMP | ||
| 42 | 01010-80625 | BOLT | ||
| 43 | 01643-30623 | WASHER | ||
| 44 | 6261-71-5660 | BRACKET | ||
| 45 | 01011-81080 | BOLT | ||
| 46 | 01643-31032 | WASHER | ||
| 47 | 6217-71-6640 | CLAMP | ||
| 48 | 6217-71-6650 | CLAMP | ||
| 49 | 01010-80650 | BOLT | ||
| 50 | 01643-30623 | WASHER | ||
| 51 | 6261-71-5741 | BRACKET | ||
| 52 | 01011-81080 | BOLT | ||
| 53 | 01643-31032 | WASHER | ||
| 54 | 6217-71-6660 | CLAMP | ||
| 55 | 6217-71-6670 | CLAMP | ||
| 56 | 01010-80630 | BOLT | ||
| 57 | 01643-30623 | WASHER | ||
| 58 | 6261-71-5760 | BRACKET | ||
| 59 | 01010-81025 | BOLT | ||
| 60 | 01643-31032 | WASHER | ||
| 61 | 6217-71-6650 | CLAMP | ||
| 62 | 01010-80630 | BOLT | ||
| 63 | 01643-30623 | WASHER | ||
| 64 | 6261-71-5630 | BRACKET | ||
| 65 | 01010-81025 | BOLT | ||
| 66 | 01643-31032 | WASHER | ||
| 67 | 6217-71-6660 | CLAMP | ||
| 68 | 6217-71-6670 | CLAMP | ||
| 69 | 01010-80630 | BOLT | ||
| 70 | 01643-30623 | WASHER |
