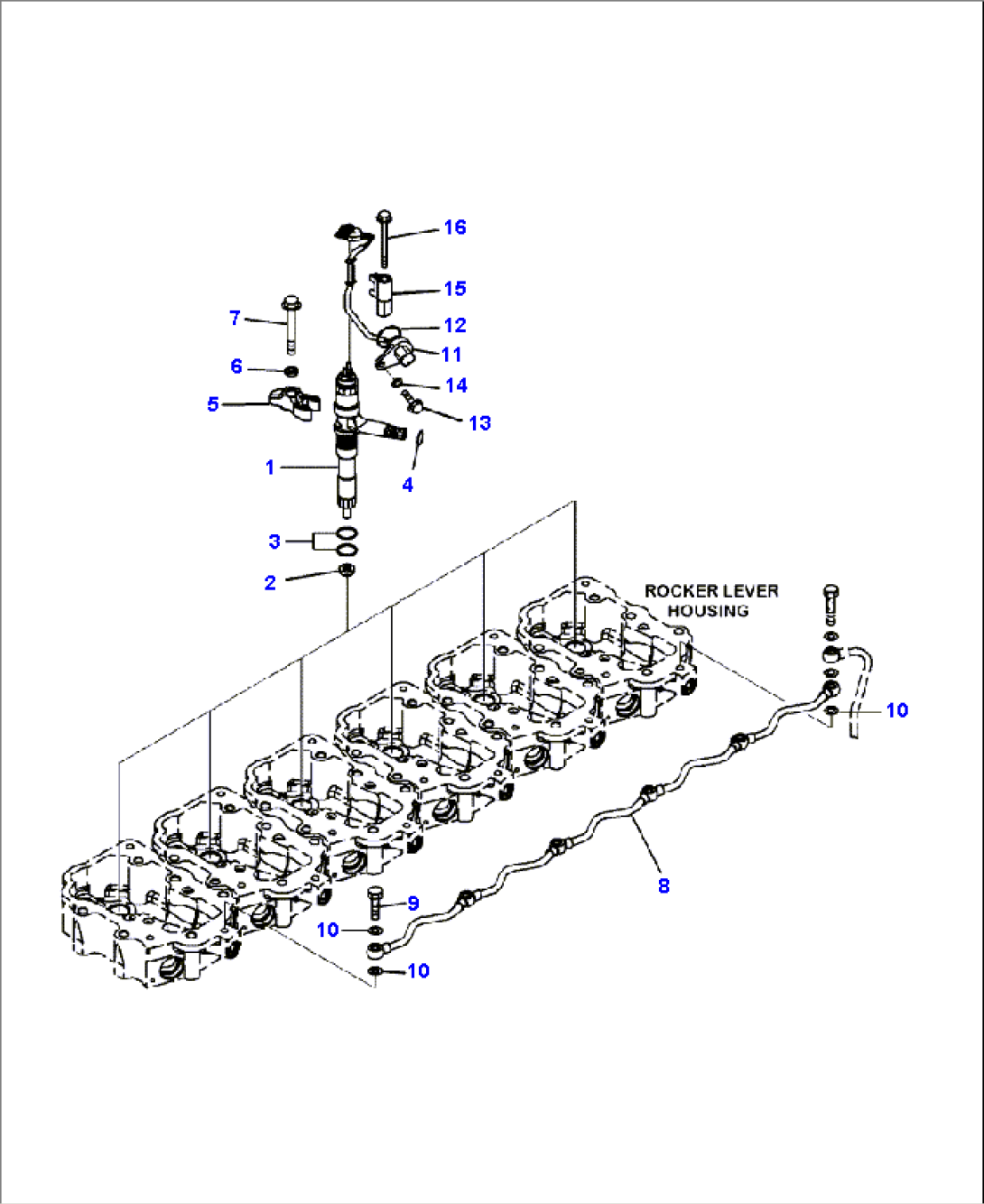

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6251-11-3100 | INJECTOR ASSEMBLY | ||
| N/I | (NSS) | HOLDER | ||
| N/I | (NSS) | NOZZLE | ||
| 2 | 6217-71-6112 | GASKET | ||
| 3 | 6219-71-1150 | O-RING | ||
| 4 | 6219-71-1160 | O-RING | ||
| 5 | 6156-71-1161 | HOLDER | ||
| 6 | 6217-71-1140 | WASHER | ||
| 7 | 01437-01075 | BOLT | ||
| 8 | 6251-71-5340 | TUBE | ||
| 9 | 6934-72-7190 | BOLT | ||
| 10 | 07005-01012 | GASKET | ||
| 11 | 6156-81-9110 | WIRE HARNESS | ||
| 12 | 07000-E3024 | O-RING | ||
| 13 | 6156-81-9130 | BOLT | ||
| 14 | 01640-20610 | WASHER | ||
| 15 | 6156-81-9150 | HOLDER | ||
| 16 | 01435-00870 | BOLT |
