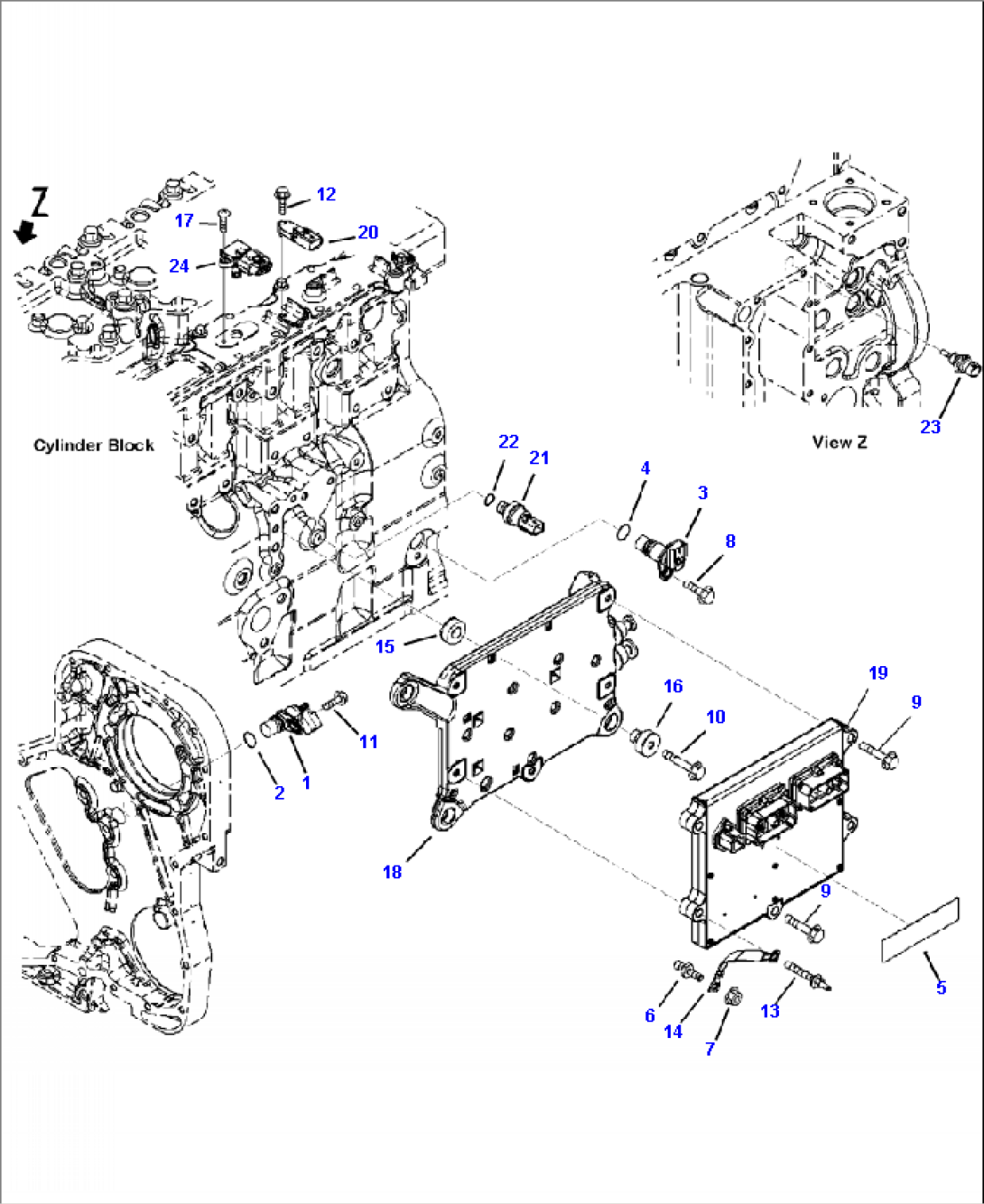

| Item | Part No. | Part Name | Qty | Serial No. |
| 6754-81-9200 | SENSOR ASSEMBLY, POSITION | | |
| 1 | 6261-81-2902 | SENSOR, POSITION | | |
| 2 | 6271-81-8220 | SEAL, O-RING | | |
| 6261-81-2901 | SENSOR ASSEMBLY, POSITION | | |
| 3 | (NSS) | SENSOR, POSITION | | |
| 4 | 6271-81-9220 | SEAL, O-RING | | |
| 5 | 6216-84-2130 | DATAPLATE | | |
| 6 | 6745-81-9440 | BOLT (M8-1.25x15) | | |
| 7 | 6732-71-3210 | NUT (M8-1.25) | | |
| 8 | 6732-71-3220 | BOLT (M8-1.25x20) | | |
| 9 | 6732-61-3110 | BOLT (M8-1.25x40) | | |
| 10 | 6735-61-2120 | BOLT (M8-1.25x45) | | |
| 11 | 6732-21-4180 | BOLT (M6-1.00x16) | | |
| 12 | 6734-71-5520 | BOLT (M5-0.80x20) | | |
| 13 | 6745-81-9560 | BOLT | | |
| 14 | 6745-81-9570 | WIRE, GROUND | | |
| 15 | 6754-81-9110 | ISOLATOR, VIBRATION | | |
| 16 | 6754-81-9130 | ISOLATOR, VIBRATION | | |
| 17 | 6754-81-9180 | BOLT, SOCKET HEAD CAP | | |
| 18 | 6745-81-9510 | COOLER, ELECTRIC CONTROL | | |
| 19 | (NSS) | CONTROLLER, ELECTRONIC CONTROL | | |
| 20 | 6261-81-1900 | SENSOR, PRESSURE | | |
| 6744-81-4010 | SWITCH ASSEMBLY, PRESSURE | | |
| 21 | (NSS) | SWITCH, PRESSURE | | |
| 22 | 6216-84-9740 | SEAL, O-RING | | |
| 6261-81-6900 | SENSOR, TEMPERATURE | | |
| 23 | (NSS) | SENSOR, TEMPERATURE | | |
| 6216-84-9740 | SEAL, O-RING | | |
| 24 | 6754-81-2701 | SENSOR ASSEMBLY, PRS TEMPERATURE | | |
| N/I | 6754-81-2710 | SEAL, O-RING | | |
| | | | |
| | F2 - CONTACT RIPLEY PARTS SUPPLY CENTER WITH ENGINE SERIAL NUMBER TO ORDER PROPER ENGINE CONTROLLER. | | |
| | F2 - CONTACT RIPLEY PARTS SUPPLY CENTER WITH ENGINE SERIAL NUMBER TO ORDER PROPER ENGINE CONTROLLER. | | |
