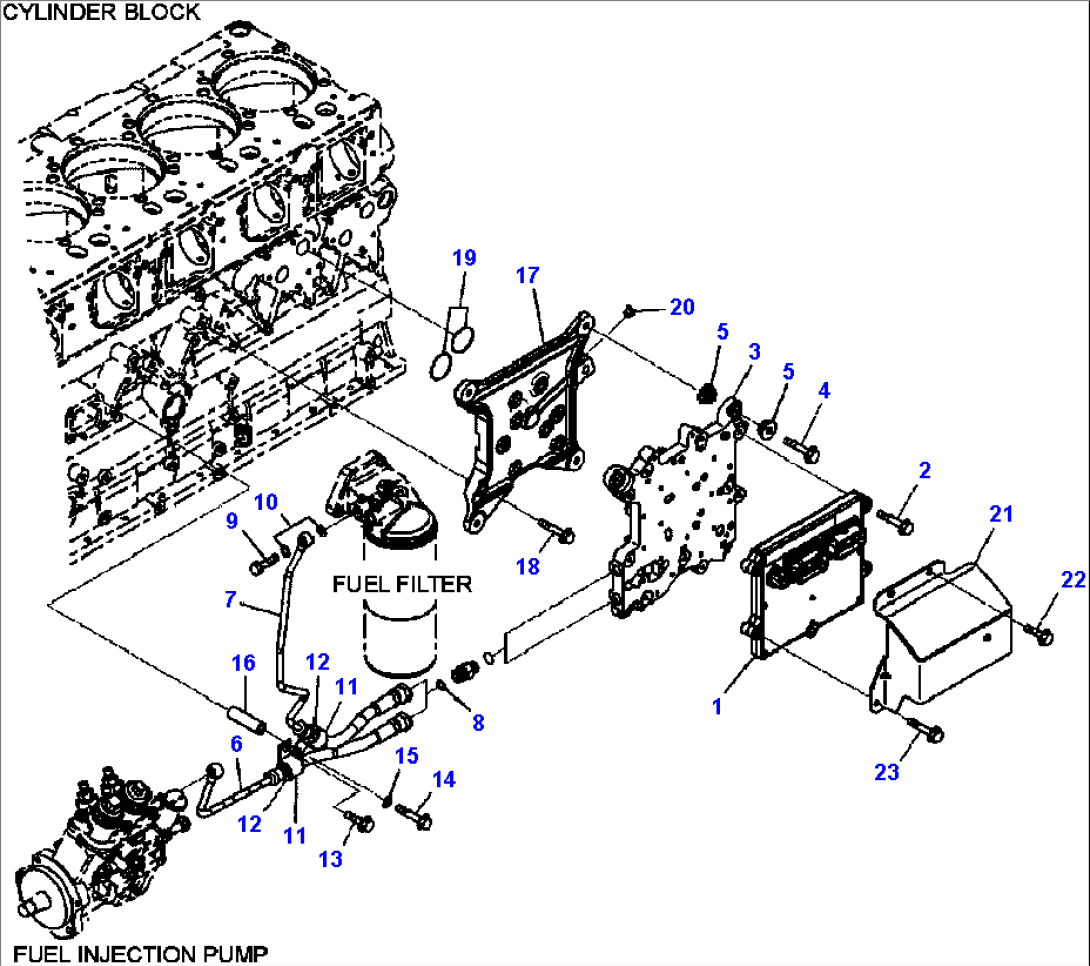

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CONTROLLER ASSEMBLY | |||
| 2 | 01435-00840 | BOLT | ||
| 3 | 6261-81-7100 | COOLER | ||
| 4 | 01435-01045 | BOLT | ||
| 5 | 6251-81-7210 | CUSHION | ||
| 6 | 6261-71-5540 | HOSE | ||
| 7 | 6261-71-5580 | HOSE | ||
| 8 | 02896-21012 | O-RING | ||
| 9 | 07206-31014 | BOLT, JOINT | ||
| 10 | 07005-01412 | GASKET | ||
| 11 | 04434-52511 | CLIP | ||
| 12 | 07095-30318 | CUSHION | ||
| 13 | 01435-01020 | BOLT | ||
| 14 | 01435-01090 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 6136-11-5120 | SPACER | ||
| 17 | 6261-81-7310 | BRACKET | ||
| 18 | 01435-01045 | BOLT | ||
| 19 | 07000-73038 | O-RING | ||
| 20 | 07043-70211 | PLUG | ||
| 21 | 6261-81-7330 | COVER | ||
| 22 | 01435-00820 | BOLT | ||
| 23 | 01435-00845 | BOLT | ||
| F1 - CONTACT RIPLEY PARTS SUPPLY CENTER WITH ENGINE SERIAL NUMBER TO ORDER PROPER ENGINE CONTROLLER. |
