| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1239 980 H1 | WASHER, PLAIN | ||
| 2 | 6732-11-1910 | PLUG, PIPE | ||
| 3 | 6742-01-1460 | PLUG, PIPE | ||
| 4 | 6216-94-3780 | BOLT | ||
| 5 | 1239 265 H1 | BOLT | ||
| 6 | 1239 506 H1 | GASKET, CONNECTION | ||
| 7 | 1307 536 H1 | CONNECTION, WATER INLET |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3l s/n a70001 up
- Engine
- A5106 a5a1 water inlet connection
Поиск по каталогу

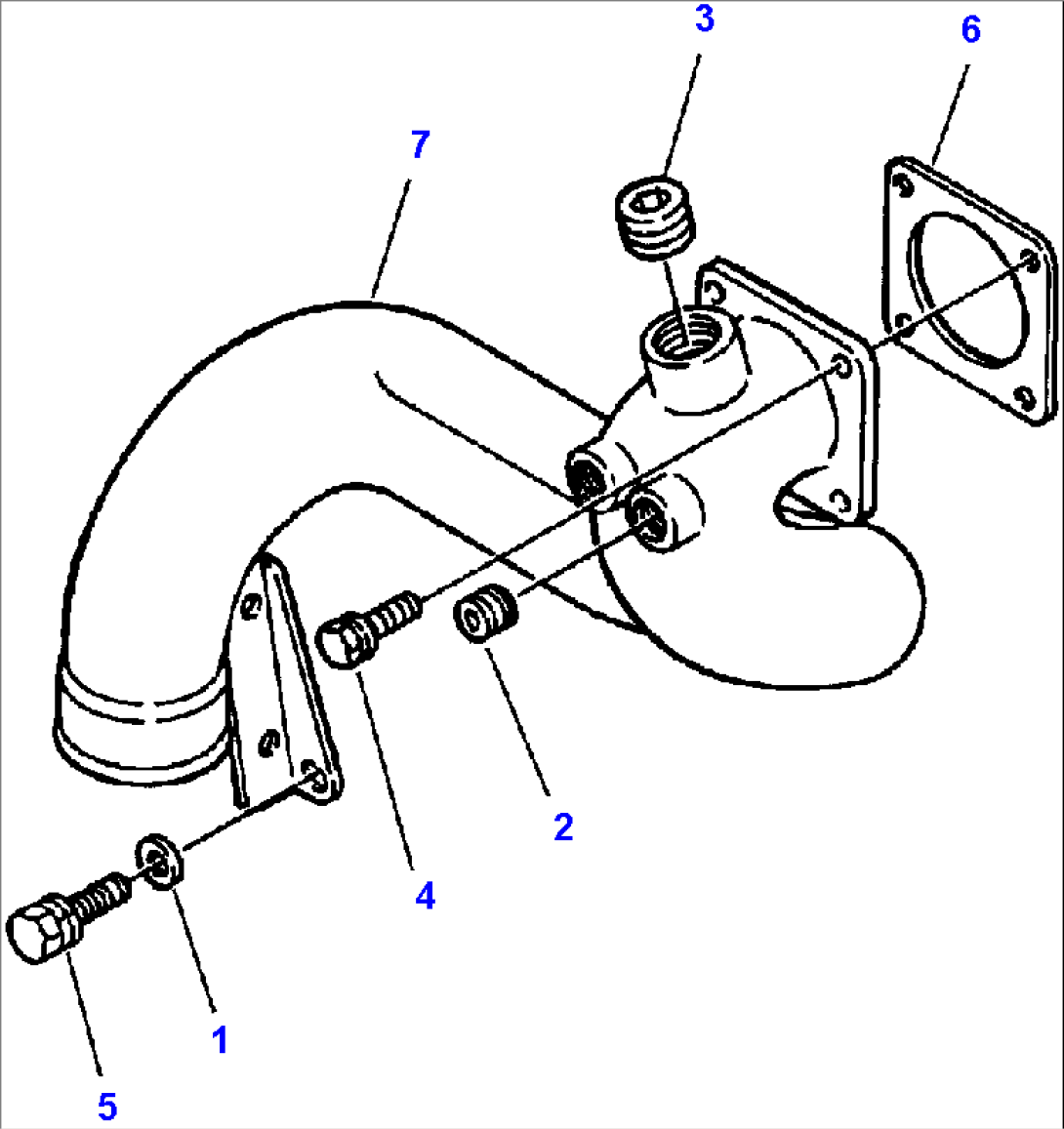

A5106-A5A1 WATER INLET CONNECTION
