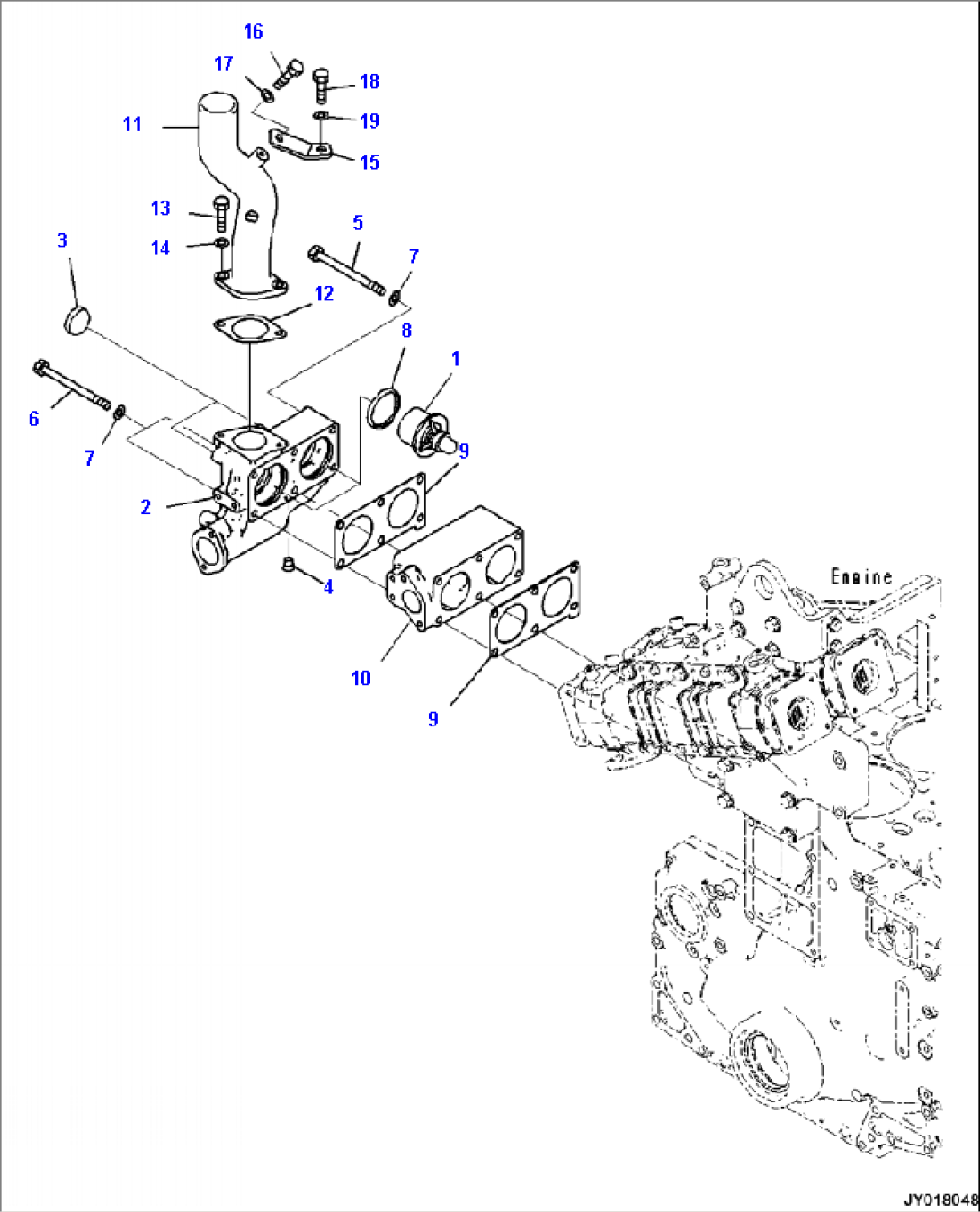

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-421-6630 | THERMOSTAT | ||
| 6262-11-6100 | HOUSING ASSEMBLY, THERMOSTAT | |||
| 2 | 6262-11-6110 | HOUSING | ||
| 3 | 07046-44516 | PLUG | ||
| 4 | 02720-20204 | PLUG | ||
| 5 | 01011-81075 | BOLT | ||
| 6 | 01011-81095 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 6162-13-6440 | SEAL | ||
| 9 | 6262-61-6420 | GASKET | ||
| 10 | 6262-11-6150 | SPACER | ||
| 11 | 6262-61-6240 | CONNECTOR | ||
| 12 | 6210-61-6441 | GASKET | ||
| 13 | 01010-81030 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 6262-61-6290 | BRACKET | ||
| 16 | 01010-81025 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 01010-E1025 | BOLT | ||
| 19 | 01643-31032 | WASHER |
