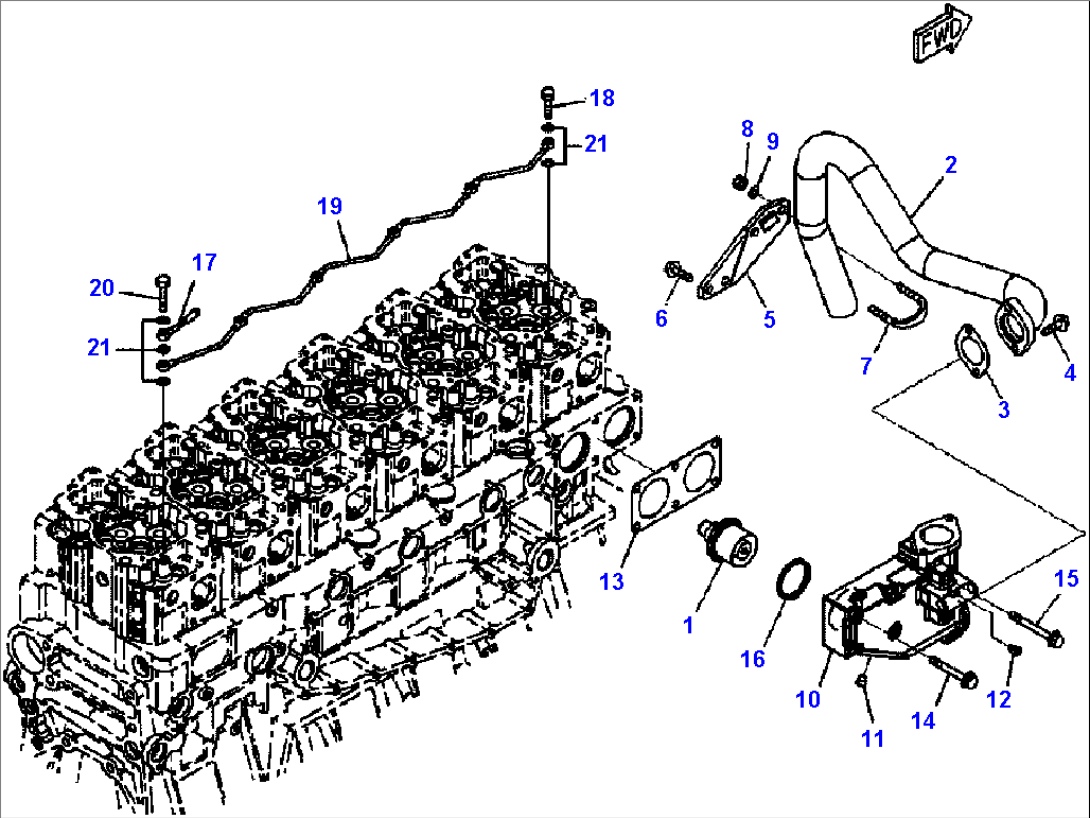

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-421-6630 | THERMOSTAT | ||
| 2 | 6261-61-6840 | TUBE | ||
| 3 | 6210-61-6870 | GASKET | ||
| 4 | 01435-01030 | BOLT | ||
| 5 | 6261-61-6850 | BRACKET | ||
| 6 | 01435-01225 | BOLT | ||
| 7 | 07283-34957 | CLIP, PIPE | ||
| 8 | 01597-01009 | NUT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 6211-61-6410 | HOUSING, THERMOSTAT | ||
| 11 | 1240 021 H1 | PLUG, TAPERED | ||
| 12 | 07043-00108 | PLUG | ||
| 13 | 6210-61-6421 | GASKET | ||
| 14 | 01437-01065 | BOLT | ||
| 15 | 01438-01005 | BOLT | ||
| 16 | 6162-13-6440 | SEAL | ||
| 17 | 6261-11-6610 | TUBE | ||
| 18 | 07206-30710 | BOLT, JOINT | ||
| 19 | 6217-11-6520 | TUBE | ||
| 20 | 6215-11-6560 | BOLT, JOINT | ||
| 21 | 07003-01015 | GASKET |
