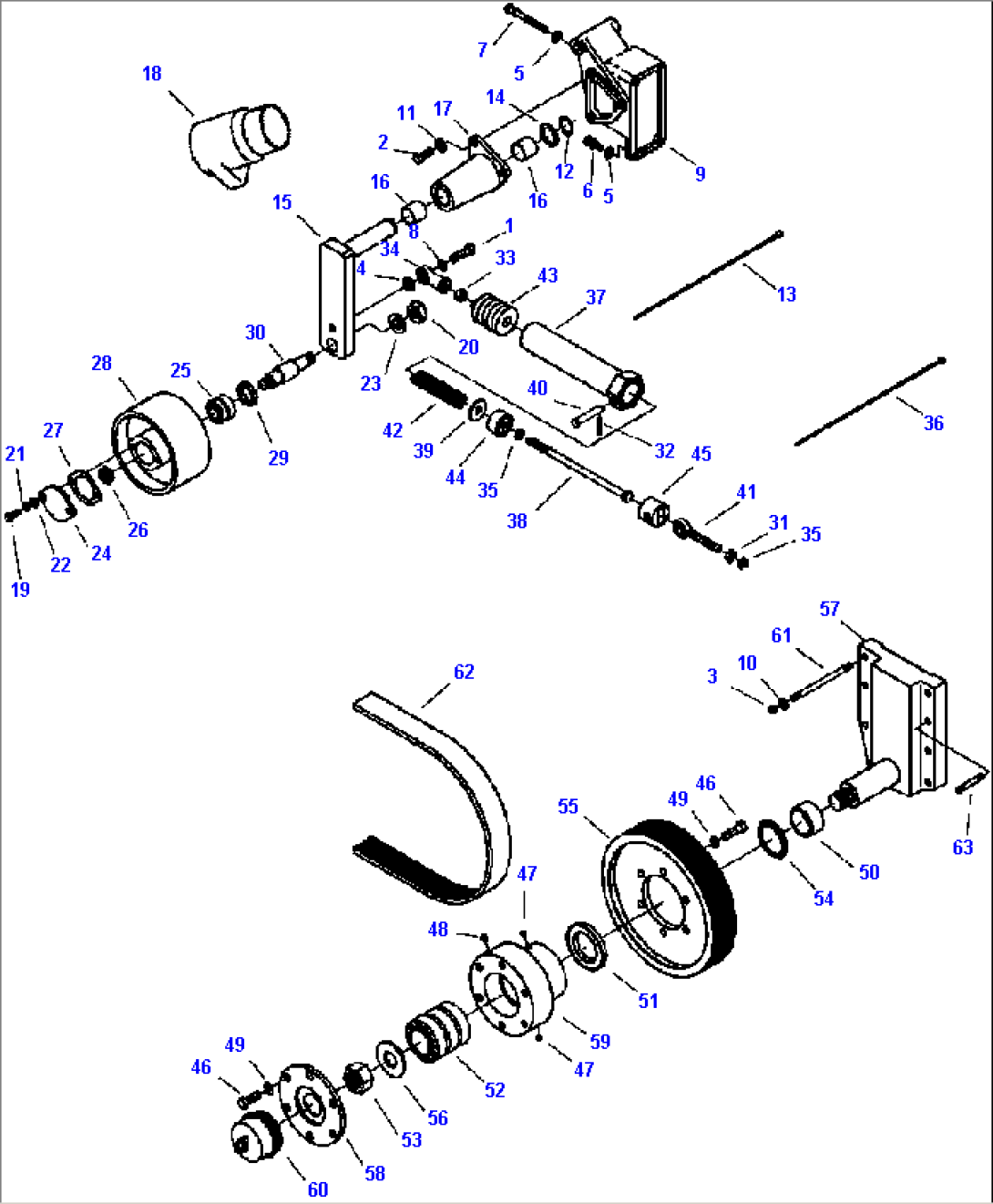

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6216-84-6220 | BOLT (1/2-13x1 1/2 IN) | ||
| 2 | 1307 754 H1 | BOLT | ||
| 3 | 103 026 | NUT (3/8-24 UNF) | ||
| 4 | 1307 756 H1 | WASHER, PLAIN (1/2 IN) | ||
| 5 | 1238 237 H1 | WASHER, PLAIN (3/8 IN) | ||
| 6 | 6216-94-3790 | BOLT (3/8-16x1 1/4 IN) | ||
| 7 | 1239 213 H1 | BOLT (3/8-16x3 3/4 IN) | ||
| 8 | 6216-64-4410 | WASHER, PLAIN (1/2 IN) | ||
| 9 | 1239 765 H1 | SUPPORT, ALTERNATOR | ||
| 10 | 1267 715 H1 | WASHER, PLAIN (3/8 IN) | ||
| 11 | 1307 758 H1 | WASHER, PLAIN (3/8 IN) | ||
| 1307 759 H91 | LEVER, IDLER | |||
| 12 | 6216-64-4540 | RING, RETAINING | ||
| 13 | 6216-64-4420 | CLAMP, WIRE TIRE | ||
| 14 | 6216-64-4550 | WASHER, PLAIN | ||
| 15 | 6216-64-4610 | LEVER, IDLER | ||
| 6216-64-4620 | SUPPORT, PIVOT SHAFT | |||
| 16 | 6216-64-4580 | BUSHING | ||
| 17 | (NSS) | SUPPORT, PIVOT SHAFT | ||
| 18 | 1315 166 H1 | SEAL, DUST | ||
| 1307 767 H91 | PULLEY, IDLER | |||
| 19 | 1241 567 H1 | BOLT (5/16-18x1 IN) | ||
| 20 | 6216-64-3980 | NUT (3/4-16 UNF) | ||
| 21 | 6216-84-5360 | WASHER, LOCK (5/16 IN) | ||
| 22 | 6216-64-3990 | WASHER, PLAIN (5/16 IN) | ||
| 23 | 6216-64-4110 | WASHER, PLAIN (3/4 IN) | ||
| 24 | 6216-64-4120 | COVER, WATER CONNECTION | ||
| 25 | 6216-64-4130 | BEARING, ROLLER | ||
| 26 | 6216-64-4140 | NUT, LOCK (3/4-16 UNF) | ||
| 27 | 6216-64-4150 | GASKET, FLANGE | ||
| 1316 774 H91 | PULLEY, IDLER | |||
| 28 | 1307 768 H1 | PULLEY, IDLER | ||
| 29 | 6216-64-4180 | SEAL, OIL | ||
| 30 | 1307 769 H1 | SHAFT, IDLER | ||
| 6216-64-4370 | TENSIONER, BELT | |||
| 31 | 6216-84-6330 | NUT (1/2-20 UNF) | ||
| 32 | 6216-64-4380 | PIN, COTTER | ||
| 33 | 6216-64-4390 | NUT (1/2-20 UNF) | ||
| 34 | 6216-64-3680 | END, CONTROL ROD | ||
| 35 | 6216-64-4410 | WASHER, PLAIN (1/2 IN) | ||
| 36 | 6216-64-4420 | CLAMP, WIRE TIE | ||
| 37 | 6216-64-4430 | HOUSING, BELT TENSIONER | ||
| 38 | 6216-64-4450 | BOLT | ||
| 39 | 6216-64-4470 | RETAINER, SPRING | ||
| 40 | 6216-64-4480 | PIN, CLEVIS | ||
| 41 | 6216-64-4490 | END, CONTROL ROD | ||
| 42 | 6216-64-4510 | SPRING, COMPRESSION | ||
| 43 | 6216-64-4520 | SEAL, DUST | ||
| 44 | 6216-64-3410 | GUIDE, SPRING | ||
| 45 | 6216-64-4730 | RETAINER, CONTROL ROD | ||
| 1310 194 H1 | HUB, FAN | |||
| 46 | 6216-84-6220 | BOLT (1/2-13x1 1/2 IN) | ||
| 47 | 6216-64-5810 | PLUG, PIPE (1/8 NPT) | ||
| 48 | 6216-24-3910 | FITTING, GREASE | ||
| 49 | 6216-64-4410 | WASHER, PLAIN (1/2 IN) | ||
| 50 | 1307 784 H1 | SLEEVE, WEAR | ||
| 51 | 1307 785 H1 | SEAL, OIL | ||
| 52 | 1307 786 H1 | BEARING, ROLLER | ||
| 53 | 1307 787 H1 | NUT, LOCK | ||
| 54 | 1307 790 H1 | SEAL, DUST | ||
| 55 | 1310 148 H1 | PULLEY, FAN | ||
| 56 | 1307 791 H1 | WASHER, PLAIN | ||
| 57 | 1310 195 H1 | SPINDLE, FAN | ||
| 58 | 1310 192 H1 | ADAPTER, PILOT | ||
| 59 | 1310 191 H1 | HUB, FAN | ||
| 60 | (NSS) | COVER, PROTECTIVE | ||
| 61 | 1239 898 H1 | STUD | ||
| 62 | 1310 149 H1 | BELT, V-RIBBED | ||
| 63 | 1310 187 H1 | STUD |
