| Item | Part No. | Part Name | Qty | Serial No. |

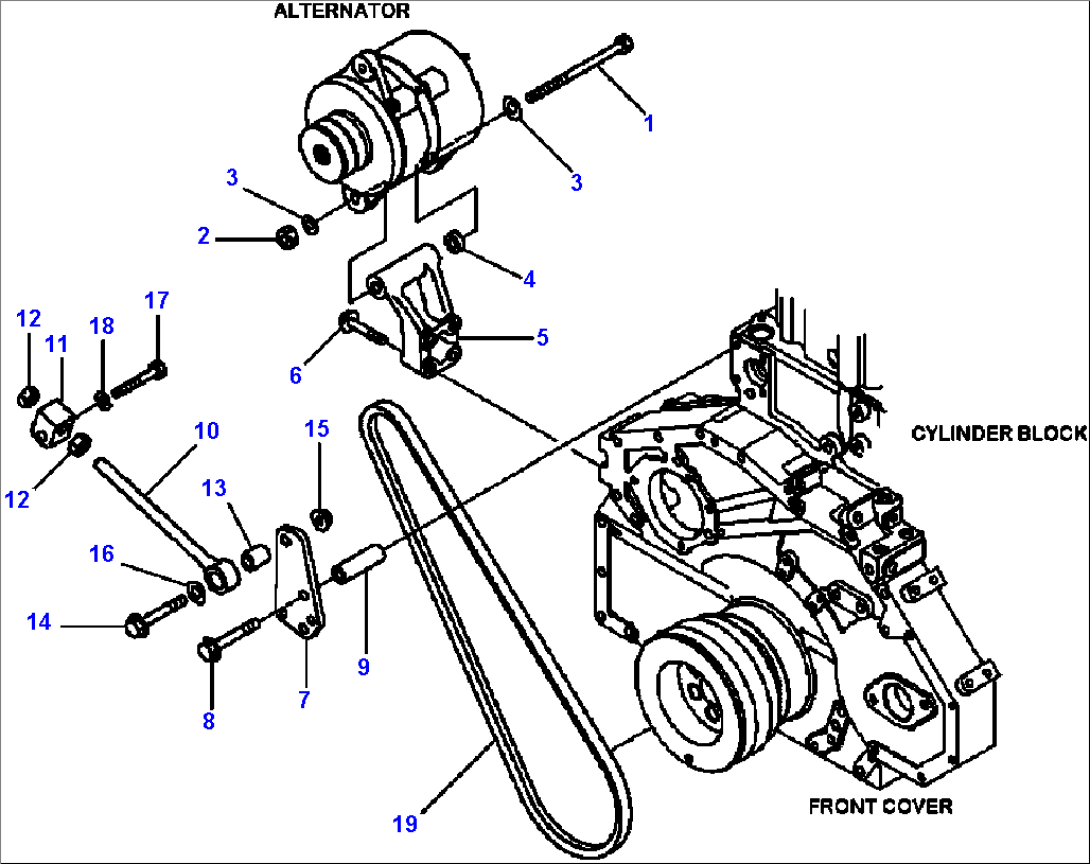

| ALTERNATOR ( SEE FIG. A6010-B3W5 ) | ||||
| 1 | 6128-21-6780 | BOLT | ||
| 2 | 02205-10812 | NUT | ||
| 3 | 01640-21323 | WASHER | ||
| 4 | 205-62-54561 | SPACER | ||
| 5 | 6154-81-6411 | BRACKET | ||
| 6 | 01435-01055 | BOLT | ||
| 7 | 6150-82-8650 | PLATE | ||
| 8 | 01435-01090 | BOLT | ||
| 9 | 6211-11-9790 | SPACER | ||
| 10 | 6150-82-8610 | ROD, ADJUSTING | ||
| 11 | 6150-82-8690 | PLATE | ||
| 12 | 01580-11411 | NUT | ||
| 13 | 6215-81-6150 | PIN | ||
| 14 | 01435-01255 | BOLT | ||
| 15 | 01584-01210 | NUT | ||
| 16 | 01643-31232 | WASHER | ||
| 17 | 01050-51255 | BOLT | ||
| 18 | 01643-31232 | WASHER | ||
| 19 | 04120-21754 | V-BELT |
