| Item | Part No. | Part Name | Qty | Serial No. |

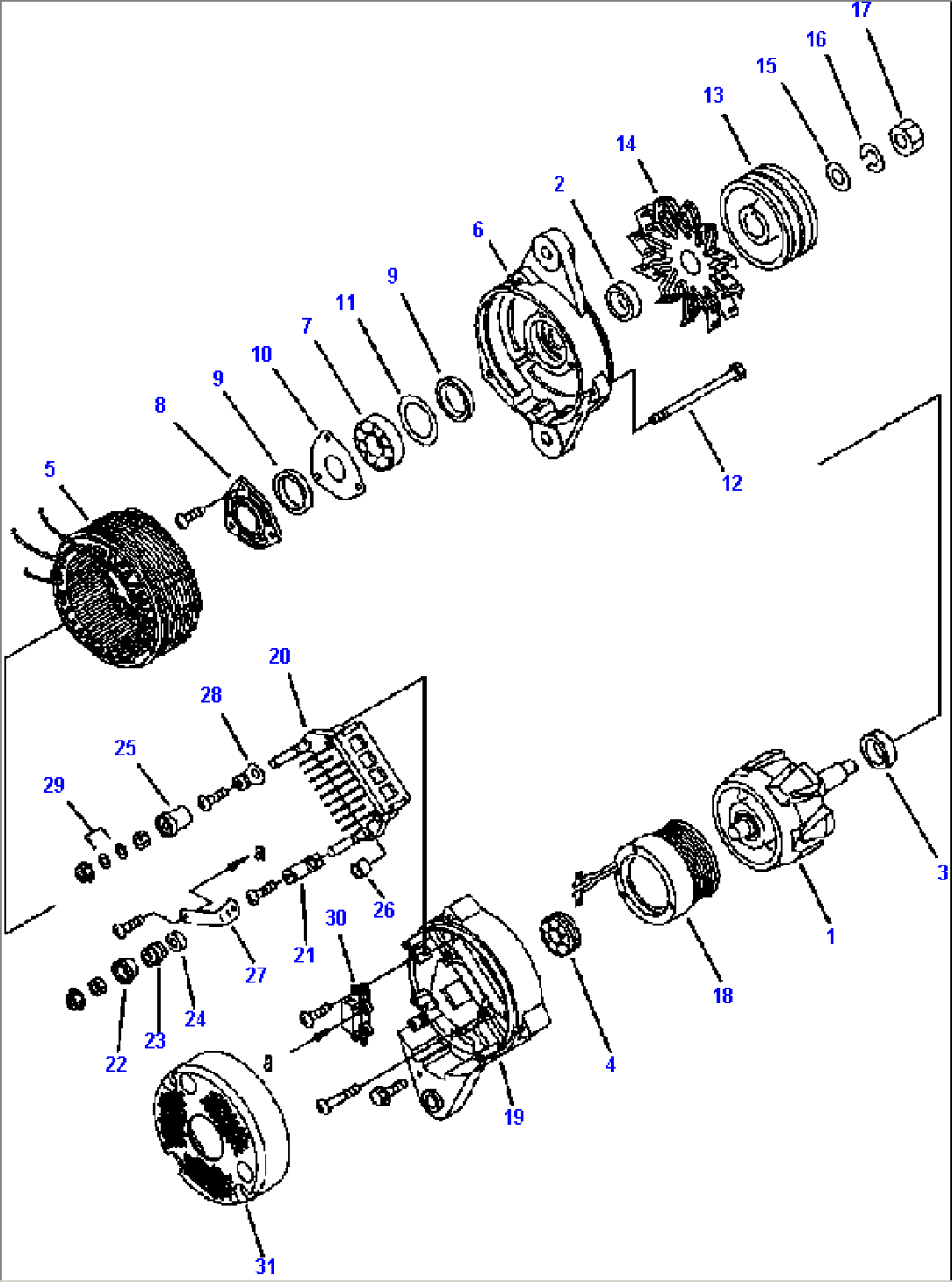

| 600-825-6110 | ALTERNATOR, 50 A | |||
| 1 | KD0-35100-0300 | ROTOR ASSEMBLY | ||
| 2 | KD1-33923-0790 | COLLAR | ||
| 3 | KD0-35923-0160 | COLLAR | ||
| 4 | KD0-09201-1130 | BALL, BEARING | ||
| 5 | KD0-35200-0460 | STATOR ASSEMBLY | ||
| 6 | KD0-35300-0380 | FRONT BRACKET ASSEMBLY | ||
| 7 | KD0-09201-1160 | BALL, BEARING | ||
| 8 | KD0-35926-0070 | RETAINER | ||
| 9 | KD0-35951-0060 | PACKING | ||
| 10 | KD0-35926-0090 | RETAINER | ||
| 11 | KD1-33926-0730 | RETAINER | ||
| 12 | KD0-0275-06802 | BOLT | ||
| 13 | KD0-35411-0630 | PULLEY | ||
| 14 | KD0-35421-0230 | FAN | ||
| 15 | KD0-09057-0230 | WASHER, HARD | ||
| 16 | KD1-0335-16002 | WASHER, SPRING | ||
| 17 | KD0-0280-16022 | NUT | ||
| 18 | KD0-35120-0290 | FIELD COIL ASSEMBLY | ||
| KD0-35700-0921 | REAR BRACKET ASSEMBLY | |||
| 19 | KD0-35710-1010 | BRACKET, REAR | ||
| 20 | KD0-35730-0700 | RECTIFIER ASSEMBLY | ||
| 21 | KD0-09170-2501 | CONDENSER | ||
| 22 | KD0-35943-0140 | BUSHING, INSULATE | ||
| 23 | KD0-35943-0150 | BUSHING, INSULATE | ||
| 24 | KD0-35943-0160 | BUSHING, INSULATE | ||
| 25 | KD0-35943-0170 | BUSHING, INSULATE | ||
| 26 | KD0-35923-0130 | COLLAR | ||
| 27 | KD0-35784-0210 | BAR, CONNECT | ||
| 28 | KD0-35784-0290 | BAR, PLATE | ||
| 29 | KD0-09057-0220 | WASHER | ||
| 30 | KD7-35719-0211 | REGULATOR ASSEMBLY | ||
| 31 | KD0-35761-0250 | COVER |
