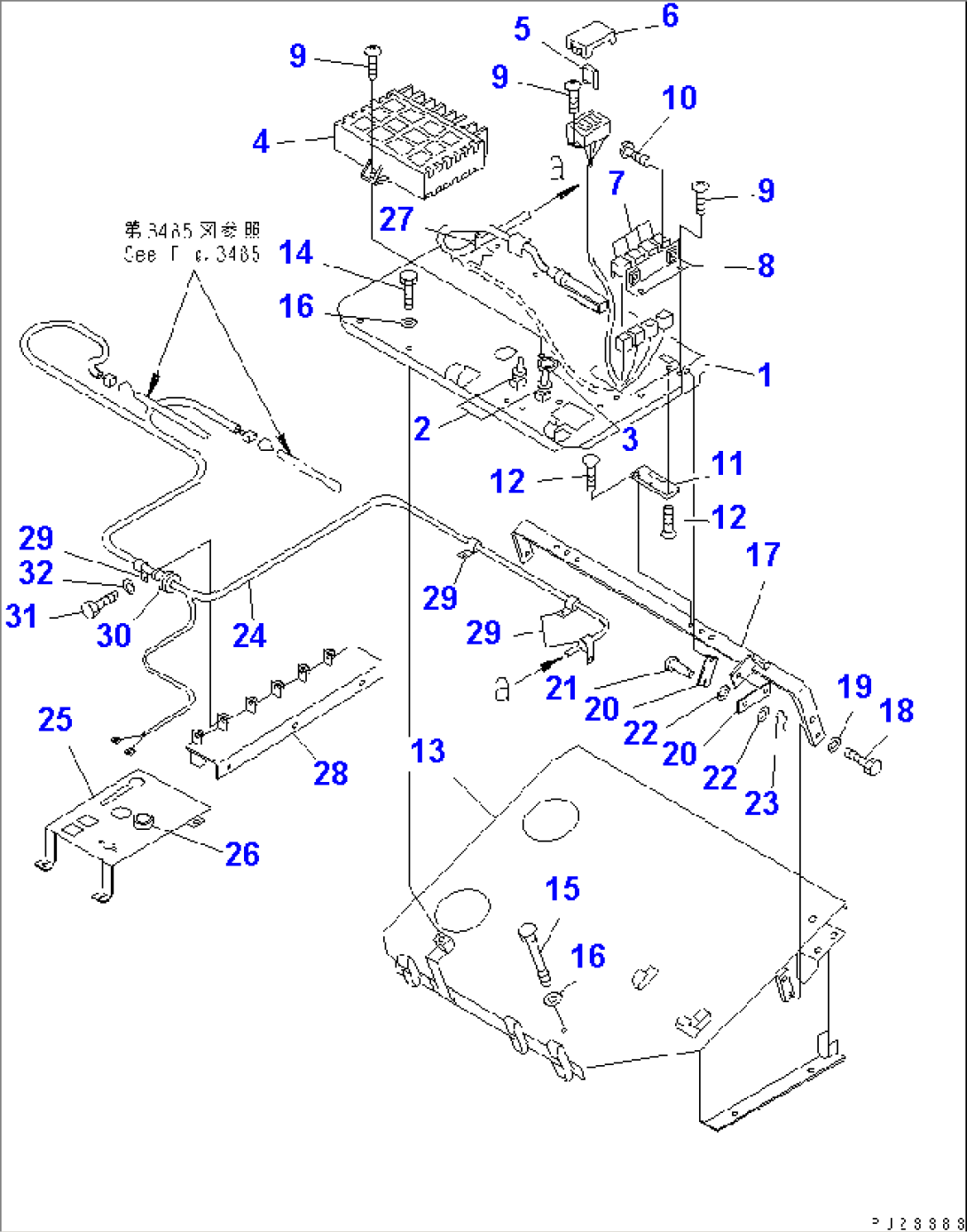

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-88-66610 | BRACKET | 5485- | |
| 2 | 08501-03004 | SWITCH | 5485- | |
| 3 | 08147-42402 | LAMP ASS'Y | 5485- | |
| 4 | 561-88-66121 | CONTROLLER | 5485- | |
| 5 | 283-06-16190 | FUSE¤ 10A | 5485- | |
| 6 | 569-06-61720 | COVER | 5485- | |
| 7 | 561-88-66161 | RELAY | 5485- | |
| 8 | 561-88-66650 | BRACKET | 5485- | |
| 9 | 01023-10620 | SCREW | 5485- | |
| 10 | 01023-10512 | SCREW | 5485- | |
| 11 | 09455-03016 | HINGE | 5485- | |
| 12 | 01224-40410 | SCREW | 5485- | |
| 13 | 561-88-66830 | BRACKET | 5485- | |
| 14 | 01010-51025 | BOLT | 5485- | |
| 15 | 01011-81000 | BOLT | 5485- | |
| 16 | 01643-31032 | WASHER | 5485- | |
| 17 | 561-88-66620 | BRACKET | 5485- | |
| 18 | 01010-81025 | BOLT | 5485- | |
| 19 | 01643-31032 | WASHER | 5485- | |
| 20 | 20Y-26-12290 | PLATE | 5485- | |
| 21 | 04205-31022 | PIN | 5485- | |
| 22 | 01643-51032 | WASHER | 5485- | |
| 23 | 04052-01038 | PIN,SNAP | 5485- | |
| 24 | 561-88-66261 | WIRING HARNESS | 5485- | |
| 25 | 561-88-6G160 | PLATE | 5485- | |
| 26 | 08147-42400 | LAMP | 5485- | |
| 27 | 08036-03014 | CLIP | 5485- | |
| 28 | 569-54-63450 | BRACKET | 5485- | |
| 29 | 08036-02514 | CLIP | 5485- | |
| 30 | 08037-12536 | GROMMET | 5485- | |
| 31 | 01010-51020 | BOLT | 5485- | |
| 32 | 01643-31032 | WASHER | 5485- |
