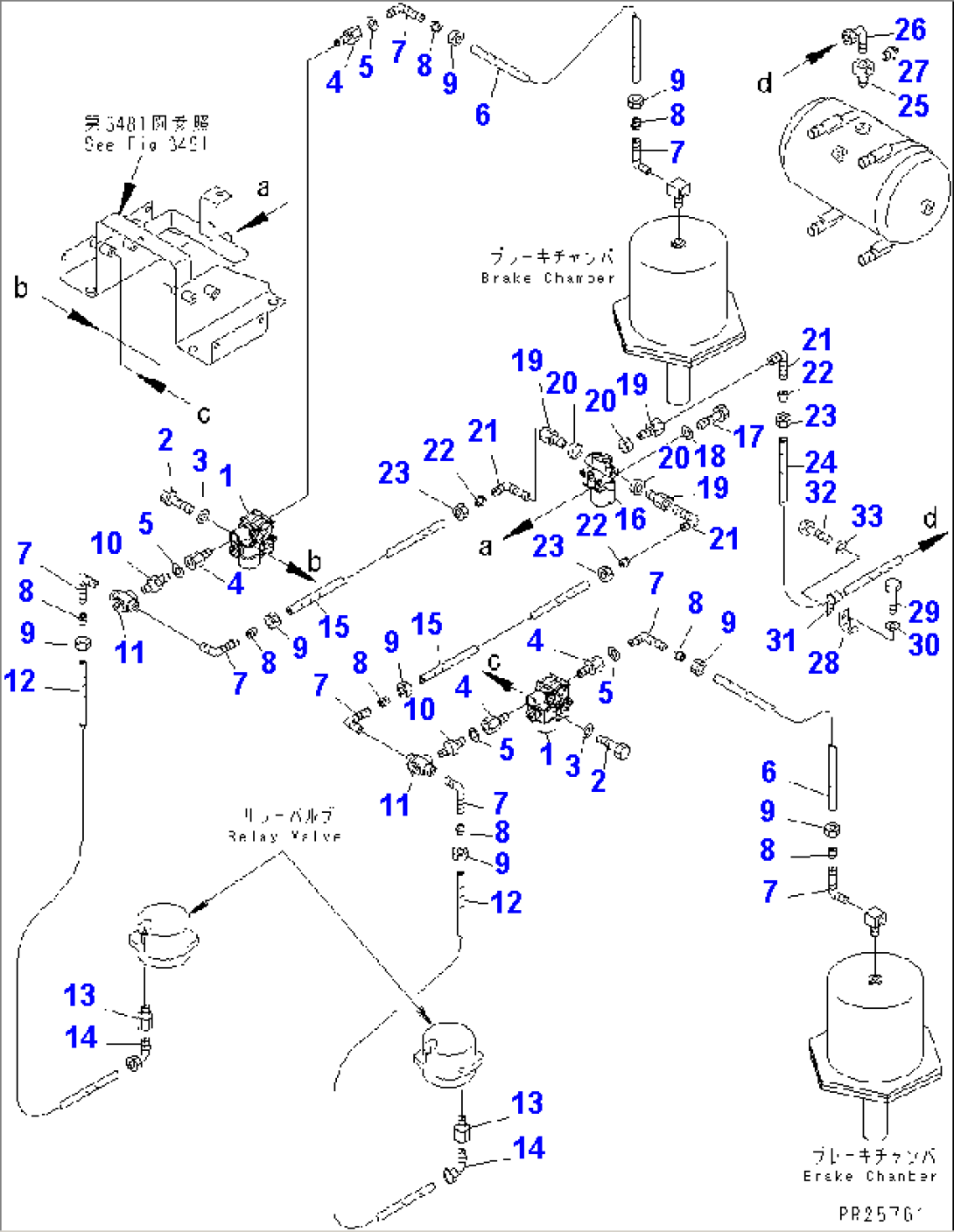

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-88-66131 | VALVE ASS'Y | 5485- | |
| 2 | 01010-80880 | BOLT | 5485- | |
| 3 | 01643-30823 | WASHER | 5485- | |
| 4 | 561-88-66391 | NIPPLE | 5485- | |
| 5 | 07005-02216 | SEAL, WASHER | 5485- | |
| 6 | 07822-00808 | TUBE | 5485- | |
| 7 | 07834-00817 | ELBOW | 5485- | |
| 8 | 07831-00813 | SLEEVE | 5485- | |
| 9 | 07832-00817 | NUT | 5485- | |
| 10 | 07325-10300 | NIPPLE | 5485- | |
| 11 | 281-34-12300 | VALVE ASS'Y | 5485- | |
| 12 | 07822-00806 | TUBE | 5485- | |
| 13 | 411-44-15580 | JOINT | 5485- | |
| 14 | 281-35-19540 | ELBOW | 5485- | |
| 15 | 07822-00804 | TUBE | 5485- | |
| 16 | 561-88-66710 | VALVE ASS'Y | 5485- | |
| 17 | 01010-80865 | BOLT | 5485- | |
| 18 | 01643-30823 | WASHER | 5485- | |
| 19 | 561-88-66720 | JOINT | 5485- | |
| 20 | 07005-01612 | SEAL, WASHER | 5485- | |
| 21 | 07834-00817 | ELBOW | 5485- | |
| 22 | 07831-00813 | SLEEVE | 5485- | |
| 23 | 07832-00817 | NUT | 5485- | |
| 24 | 07822-00807 | TUBE | 5485- | |
| 25 | 561-84-39110 | JOINT | 5485- | |
| 26 | 281-35-19540 | ELBOW | 5485- | |
| 27 | 07042-70108 | PLUG | 5485- | |
| 28 | 20Y-04-11230 | BRACKET | 5485- | |
| 29 | 01010-81020 | BOLT | 5485- | |
| 30 | 01643-31032 | WASHER | 5485- | |
| 31 | 08036-01214 | CLIP | 5485- | |
| 32 | 01010-81020 | BOLT | 5485- | |
| 33 | 01643-31032 | WASHER | 5485- |
