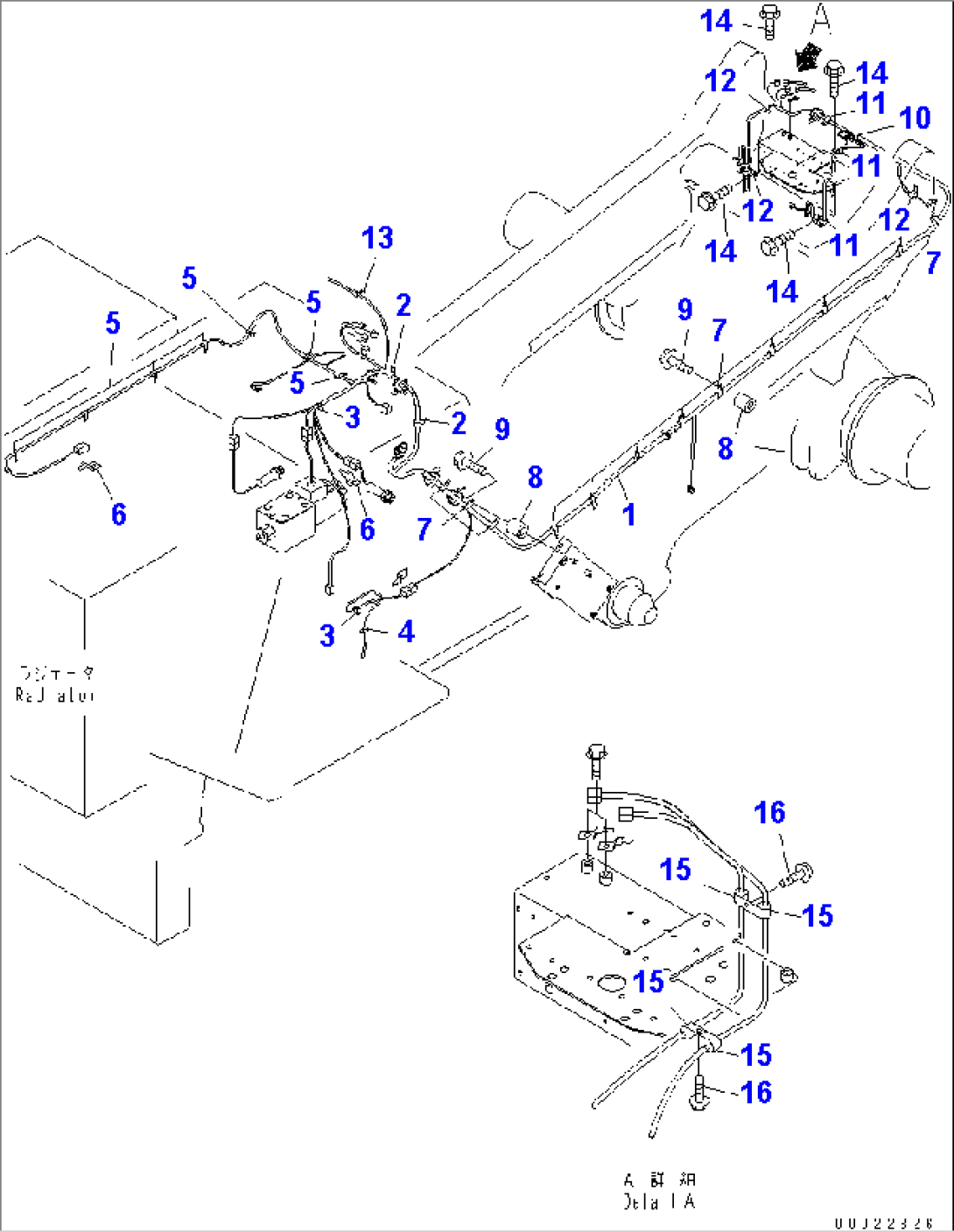

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-88-86891 | WIRING HARNESS | 7001- | |
| 2 | 04434-52310 | CLIP | 7001- | |
| 3 | 04434-51510 | CLIP | 7001- | |
| 4 | 08193-21012 | CLIP | 7001- | |
| 5 | 04434-51010 | CLIP | 7001- | |
| 6 | 08193-21012 | CLIP | 7001- | |
| 7 | 04434-52310 | CLIP | 7001- | |
| 8 | 565-95-18260 | COLLAR | 7001- | |
| 9 | 01435-01055 | BOLT | 7001- | |
| 10 | 04434-52310 | CLIP | 7001- | |
| 11 | 04434-51810 | CLIP | 7001- | |
| 12 | 04434-51210 | CLIP | 7001- | |
| 13 | 04434-51010 | CLIP | 7001- | |
| 14 | 01435-01016 | BOLT | 7001- | |
| 15 | 04434-51510 | CLIP | 7001- | |
| 16 | 01435-01016 | BOLT | 7001- |
