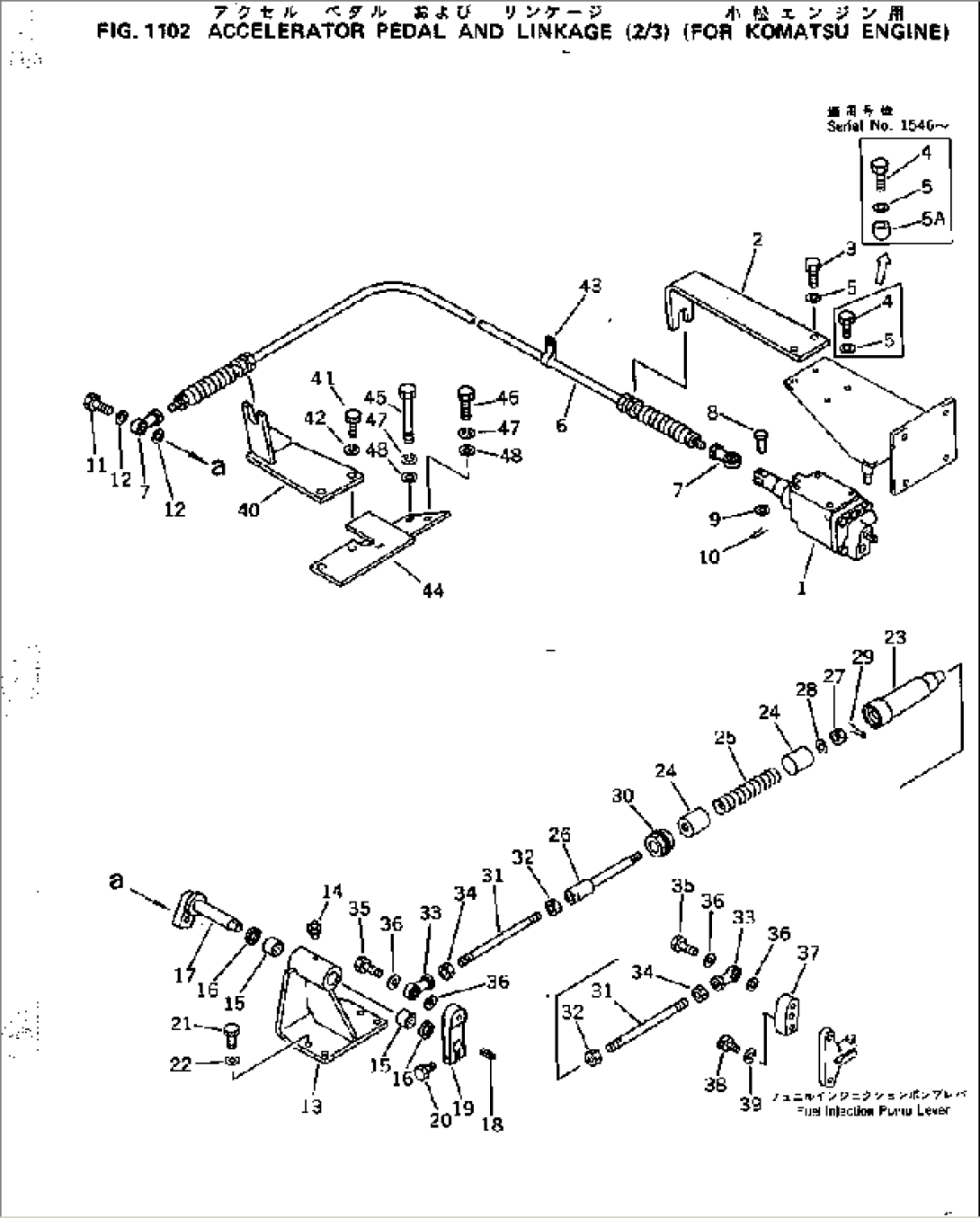

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (6164-71-7542) | CYLINDER ASS'Y | 1501- | |
| 2 | 561-43-41460 | BRACKET | 1501- | |
| 3 | 01010-51035 | BOLT | 1501- | |
| 4 | 01010-51055 | BOLT | 1546- | |
| 01010-51025 | BOLT | 1501-1545 | ||
| 5 | 01643-31032 | WASHER | 1501- | |
| 5A | 556-07-11860 | COLLAR | 1546- | |
| 6 | 561-43-41210 | CABLE | 1501- | |
| 7 | 04250-81056 | END | 1501- | |
| 8 | 04205-11035 | PIN | 1501- | |
| 9 | 01641-21016 | WASHER | 1501- | |
| 10 | 04050-13020 | PIN | 1501- | |
| 11 | 01090-51035 | BOLT | 1501- | |
| 12 | 04254-01032 | SPACER | 1501- | |
| 13 | 561-43-41430 | BRACKET | 1501- | |
| 14 | 07020-00000 | FITTING | 1501- | |
| 15 | 06120-02016 | BEARING | 1501- | |
| 16 | 06122-02004 | SEAL | 1501- | |
| 17 | 561-43-41410 | SHAFT | 1501- | |
| 18 | 04000-00515 | KEY | 1501- | |
| 19 | 561-43-41440 | LEVER | 1501- | |
| 20 | 01010-50835 | BOLT | 1501- | |
| 21 | 01010-51030 | BOLT | 1501- | |
| 22 | 01643-31032 | WASHER | 1501- | |
| 561-43-41500 | ABSORBER ASS'Y | 1501- | ||
| 23 | 561-43-41540 | GUIDE | 1501- | |
| 24 | 561-43-41510 | LINER | 1501- | |
| 25 | 561-43-41530 | SPRING | 1501- | |
| 26 | 561-43-41520 | ROD | 1501- | |
| 27 | 01590-01012 | NUT | 1501- | |
| 28 | 01643-31032 | WASHER | 1501- | |
| 29 | 04050-02018 | PIN | 1501- | |
| 30 | 6164-71-7250 | BOLT | 1501- | |
| 31 | 04248-31009 | ROD | 1501- | |
| 32 | 01583-11006 | NUT | 1501- | |
| 33 | 04250-91056 | END | 1501- | |
| 34 | 01508-21006 | NUT | 1501- | |
| 35 | 01090-51035 | BOLT | 1501- | |
| 36 | 04254-01032 | SPACER | 1501- | |
| 37 | 561-43-41420 | LEVER | 1501- | |
| 38 | 01252-40825 | BOLT | 1501- | |
| 39 | 01602-20825 | WASHER | 1501- | |
| 40 | 561-43-41450 | BRACKET | 1501- | |
| 41 | 01010-51025 | BOLT | 1501- | |
| 42 | 01602-31030 | WASHER | 1501- | |
| 43 | 08036-01814 | CLIP | 1501- | |
| 44 | 561-43-41550 | BRACKET | 1501- | |
| 45 | 700-85-11110 | BOLT | 1501- | |
| 46 | 01010-51030 | BOLT | 1501- | |
| 47 | 01602-21030 | WASHER | 1501- | |
| 48 | 01643-31032 | WASHER | 1501- |
