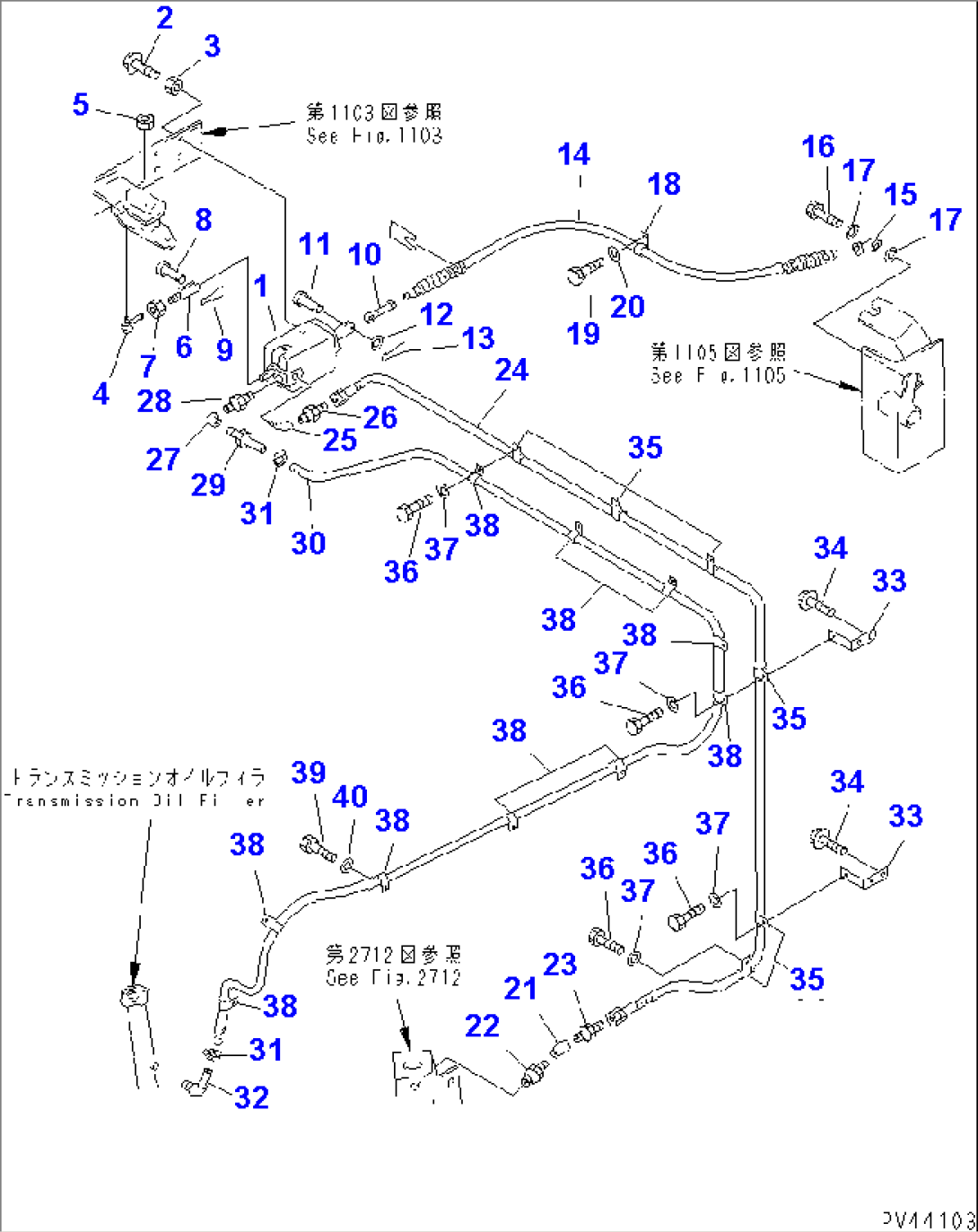

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (6164-71-7542) | CYLINDER ASS'Y | 10001- | |
| 2 | 01435-01020 | BOLT | 10501- | |
| 3 | 01596-01009 | NUT,LOCK | 10001- | |
| 4 | 04256-40615 | JOINT | 10001- | |
| 5 | 01596-00606 | NUT,LOCK | 10001- | |
| 6 | 427-43-11380 | YOKE | 10001- | |
| 7 | 01580-10605 | NUT | 10001- | |
| 8 | 04205-10618 | PIN | 10001- | |
| 9 | 04050-11612 | PIN,COTTER | 10001- | |
| 10 | 04250-51056 | END,ROD | 10001- | |
| 11 | 04205-11032 | PIN | 10001- | |
| 12 | 01641-21016 | WASHER | 10001- | |
| 13 | 04050-13020 | PIN,COTTER | 10001- | |
| 14 | 427-43-11440 | CABLE | 10501- | |
| 15 | 04250-51056 | END,ROD | 10001- | |
| 16 | 01010-81040 | BOLT | 10001- | |
| 17 | 04254-01032 | SPACER | 10001- | |
| 18 | 08036-01414 | CLIP | 10501- | |
| 19 | 01010-81020 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 07323-C0300 | ELBOW | 10001- | |
| 22 | 07325-30300 | NIPPLE | 10001- | |
| 23 | 07238-10315 | CONNECTOR | 10001- | |
| 24 | 07102-20332 | HOSE | 10001- | |
| 25 | 07323-B0300 | ELBOW | 10001- | |
| 26 | 427-43-11330 | CONNECTOR | 10001- | |
| 27 | 07323-A0400 | ELBOW | 10001- | |
| 28 | 07325-30400 | NIPPLE | 10001- | |
| 29 | 154-04-11510 | NIPPLE | 10526- | |
| 29 | 281-04-15570 | TUBE | 10001-10525 | |
| 30 | 07261-01448 | HOSE | 10001- | |
| 31 | 07281-00259 | CLAMP | 10001- | |
| 32 | 232-43-54460 | ELBOW | 10001- | |
| 33 | 427-43-11340 | BRACKET | 10001- | |
| 34 | 01435-01016 | BOLT | 10501- | |
| 35 | 08036-01814 | CLIP | 10001- | |
| 36 | 01010-81020 | BOLT | 10001- | |
| 37 | 01643-31032 | WASHER | 10001- | |
| 38 | 08036-02514 | CLIP | 10001- | |
| 39 | 01010-81016 | BOLT | 10001- | |
| 40 | 01643-31032 | WASHER | 10001- |
