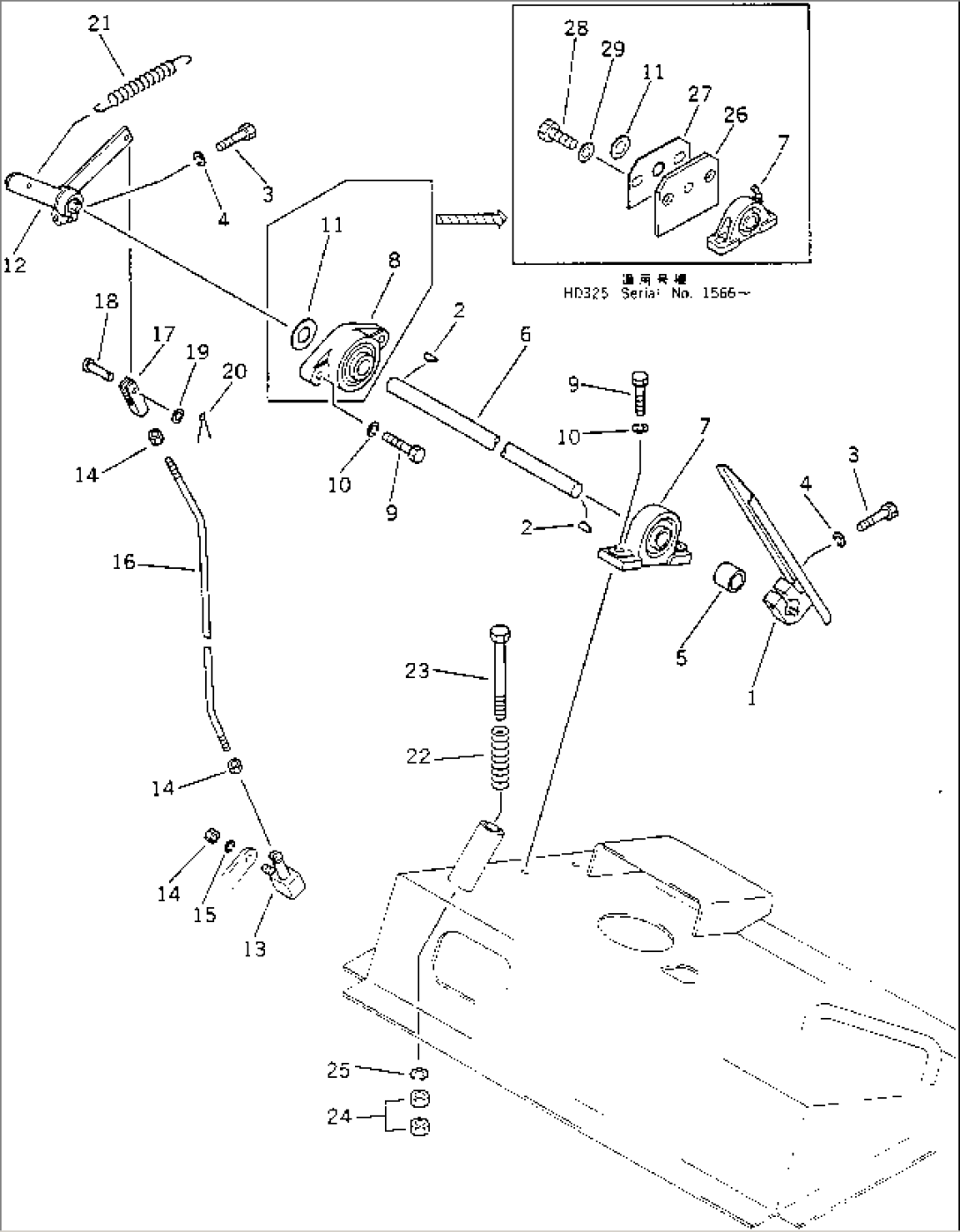

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-41111 | PEDAL | 1501- | |
| 2 | 04010-00519 | KEY | 1501- | |
| 3 | 01010-50830 | BOLT | 1501- | |
| 4 | 01602-20825 | WASHER,SPRING | 1501- | |
| 5 | 566-43-41150 | SPACER | 1501- | |
| 6 | 566-43-41122 | SHAFT | 1566- | |
| 6 | 566-43-41121 | SHAFT | 1501-1565 | |
| 7 | 567-43-16321 | BEARING | 1566- | |
| 7 | 567-43-16321 | BEARING | 1501-1565 | |
| 8 | 565-43-17371 | BEARING | 1501-1565 | |
| 9 | 01010-51030 | BOLT | 1566- | |
| 9 | 01010-50820 | BOLT | 1501-1565 | |
| 10 | 01602-21030 | WASHER,SPRING | 1566- | |
| 10 | 01602-20825 | WASHER,SPRING | 1501-1565 | |
| 11 | 01640-22032 | WASHER | 1501- | |
| 12 | 566-43-41132 | LEVER | 1501- | |
| 13 | 04256-00816 | JOINT | 1501- | |
| 14 | 01580-10806 | NUT | 1501- | |
| 15 | 01602-20825 | WASHER,SPRING | 1501- | |
| 16 | 566-43-41140 | ROD | 1501- | |
| 17 | 04211-20844 | YOKE | 1501- | |
| 18 | 04205-10825 | PIN | 1501- | |
| 19 | 01641-20812 | WASHER | 1501- | |
| 20 | 04050-12012 | PIN,COTTER | 1501- | |
| 21 | 566-43-11290 | SPRING | 1501- | |
| 22 | 566-43-41240 | SPRING | 1501- | |
| 23 | 01011-51480 | BOLT | 1501- | |
| 24 | 01580-11411 | NUT | 1501- | |
| 25 | 01643-31445 | WASHER | 1501- | |
| 26 | 566-43-41170 | SEAL | 1566- | |
| 27 | 566-43-41160 | PLATE | 1566- | |
| 28 | 01010-51025 | BOLT | 1566- | |
| 29 | 01643-31030 | WASHER | 1566- |
