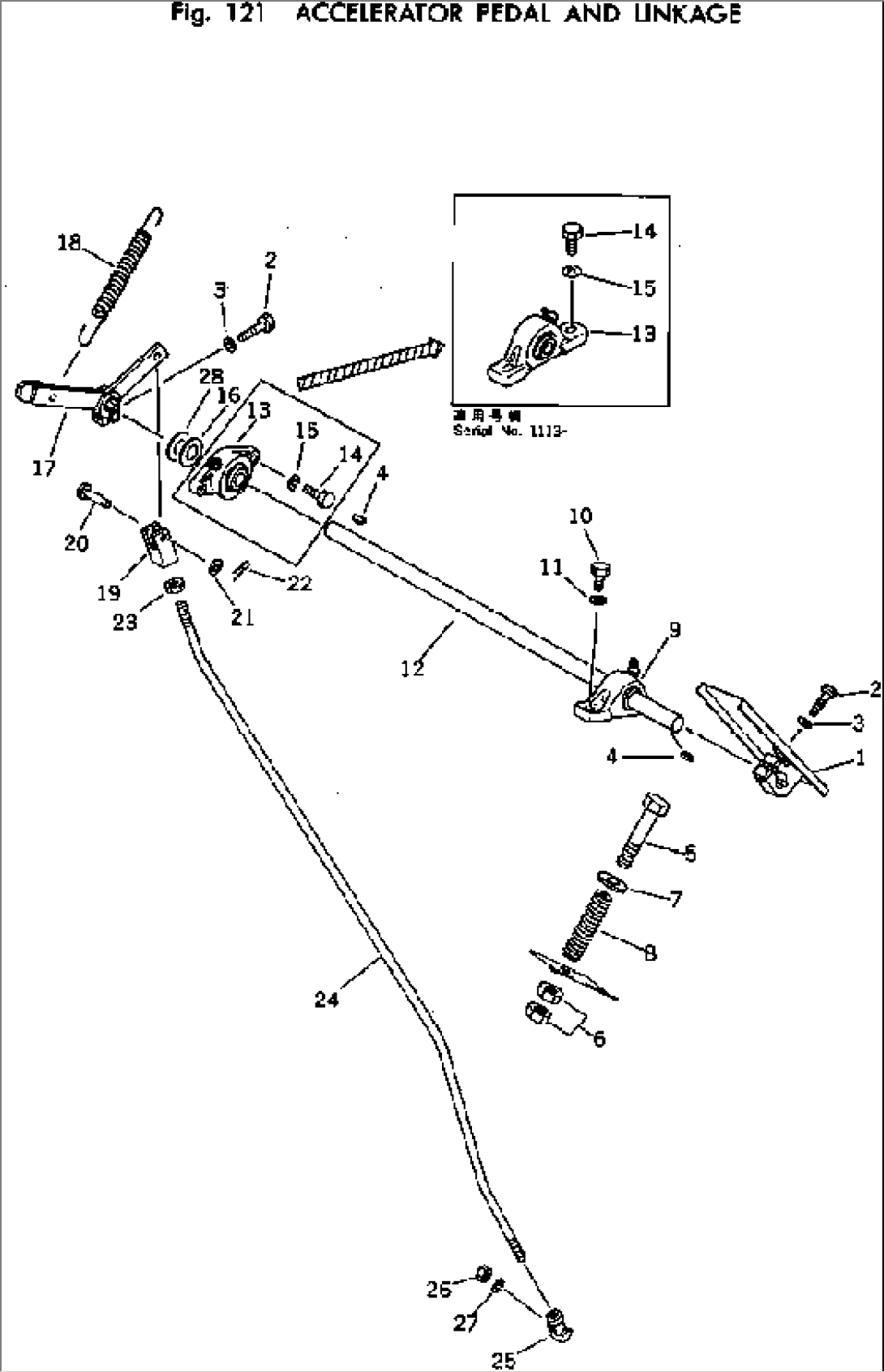

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-41111 | PEDAL | 1102- | |
| 2 | 01010-50830 | BOLT | 1102- | |
| 3 | 01602-20825 | WASHER | 1102- | |
| 4 | 04010-00519 | KEY | 1102- | |
| 5 | 01011-51480 | BOLT | 1102- | |
| 6 | 01580-11411 | NUT | 1102- | |
| 7 | 01643-31445 | WASHER | 1102- | |
| 8 | 566-43-41240 | SPRING | 1102- | |
| 9 | 567-43-16321 | BEARING | 1102- | |
| 10 | 01010-51025 | BOLT | 1102- | |
| 11 | 01602-21030 | WASHER | 1102- | |
| 12 | 566-43-41122 | SHAFT | 1102- | |
| 13 | 567-43-16321 | BEARING | 1113- | |
| 13 | 565-43-17371 | BEARING | 1102-1112 | |
| 14 | 01010-51025 | BOLT | 1102- | |
| 15 | 01602-21030 | WASHER | 1102- | |
| 16 | 01640-22032 | WASHER | 1102- | |
| 17 | 566-43-41132 | LEVER | 1102- | |
| 18 | 566-43-11290 | SPRING | 1102- | |
| 19 | 04221-20844 | YOKE | 1102- | |
| 20 | 04205-10825 | PIN | 1102- | |
| 21 | 01641-20812 | WASHER | 1102- | |
| 22 | 04050-12012 | PIN | 1102- | |
| 23 | 01580-10806 | NUT | 1102- | |
| 24 | 569-43-41121 | ROD | 1102- | |
| 25 | 04256-00825 | JOINT | 1102- | |
| 26 | 01580-10806 | NUT | 1102- | |
| 27 | 01602-20825 | WASHER | 1102- | |
| 28 | 01640-22032 | WASHER | 1113- | |
| 28 | 01643-32060 | WASHER | 1102-1112 |
