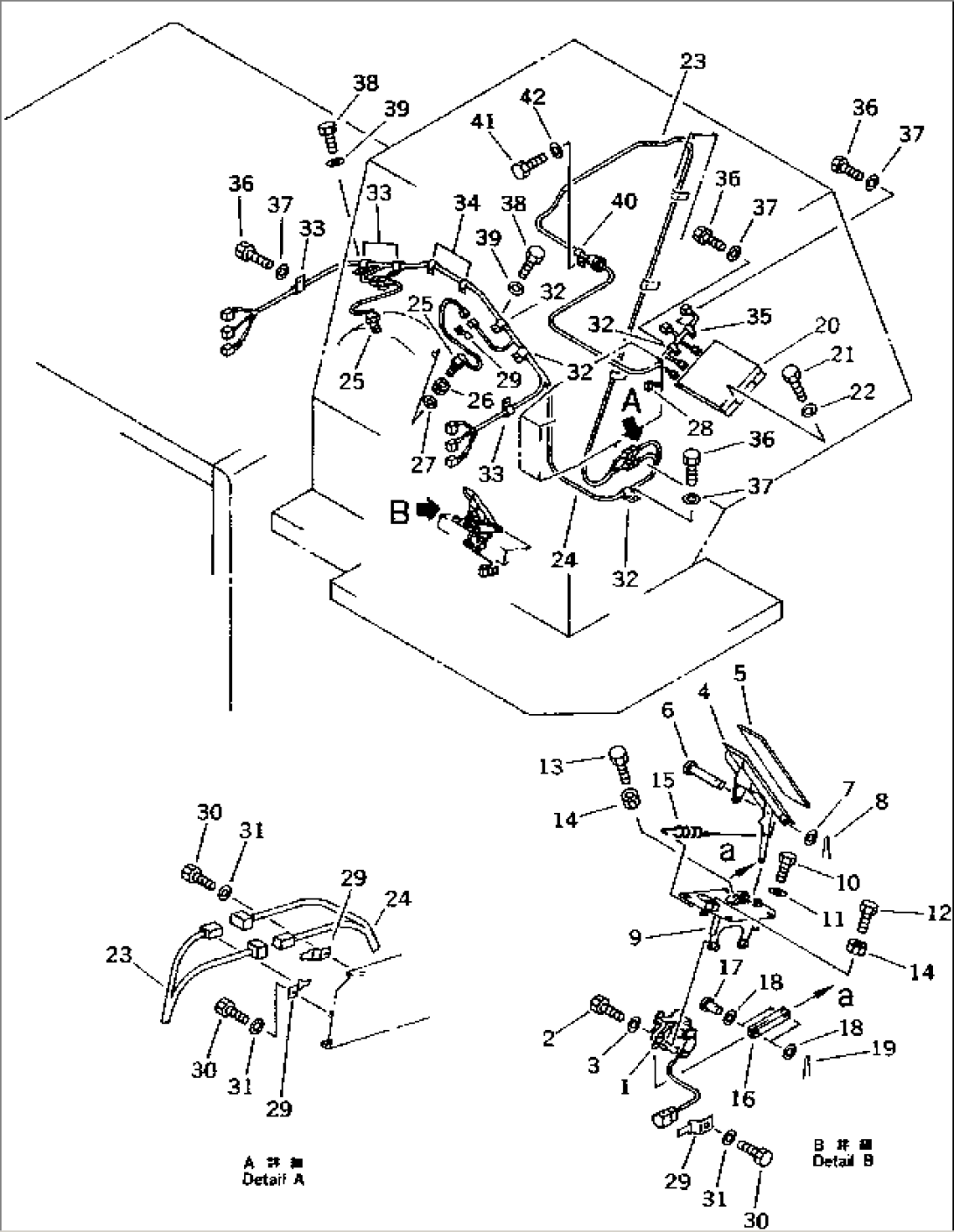

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-92-4032 | SENSOR,THROTTLE | 1001- | |
| 2 | 01010-50825 | BOLT | 1001- | |
| 3 | 01643-30823 | WASHER | 1001- | |
| 4 | 561-43-61112 | PEDAL | 1001- | |
| 5 | 7821-06-5110 | COVER | 1001- | |
| 6 | 419-43-17650 | PIN | 1001- | |
| 7 | 01641-20608 | WASHER | 1001- | |
| 8 | 04050-11612 | PIN | 1001- | |
| 9 | 561-43-61410 | BRACKET | 1001- | |
| 10 | 01010-50816 | BOLT | 1001- | |
| 11 | 01643-30823 | WASHER | 1001- | |
| 12 | 01010-50830 | BOLT | 1001- | |
| 13 | 01010-50825 | BOLT | 1001- | |
| 14 | 01580-10806 | NUT | 1001- | |
| 15 | 113-43-11280 | SPRING | 1001- | |
| 16 | 561-43-61420 | YOKE | 1001- | |
| 17 | 04205-10620 | PIN | 1001- | |
| 18 | 01641-20608 | WASHER | 1001- | |
| 19 | 04050-11612 | PIN | 1001- | |
| 20 | 7818-51-1601 | CONTROLLER,ENGINE | 1001- | |
| 21 | 01010-51020 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 561-44-61114 | WIRING HARNESS | 1001- | |
| 24 | 561-44-61141 | WIRING HARNESS | 1001- | |
| 25 | (7861-92-2330) | SENSOR,ENGINE SPEED | 1001- | |
| 26 | (01583-02213) | NUT | 1001- | |
| 27 | (07005-02216) | GASKET | 1001- | |
| 28 | 08501-03004 | SWITCH,EMERGENCY STOP | 1001- | |
| 29 | 08053-01512 | CLIP | 1001- | |
| 30 | 01010-51016 | BOLT | 1001- | |
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 08036-02514 | CLIP | 1001- | |
| 33 | 08036-01414 | CLIP | 1001- | |
| 34 | 08036-01814 | CLIP | 1001- | |
| 35 | 08036-01214 | CLIP | 1001- | |
| 36 | 01010-51016 | BOLT | 1001- | |
| 37 | 01643-31032 | WASHER | 1001- | |
| 38 | 01010-50812 | BOLT | 1001- | |
| 39 | 01643-30823 | WASHER | 1001- | |
| 40 | 285-02-11320 | CLIP | 1001- | |
| 41 | 01010-51020 | BOLT | 1001- | |
| 42 | 01643-31032 | WASHER | 1001- |
