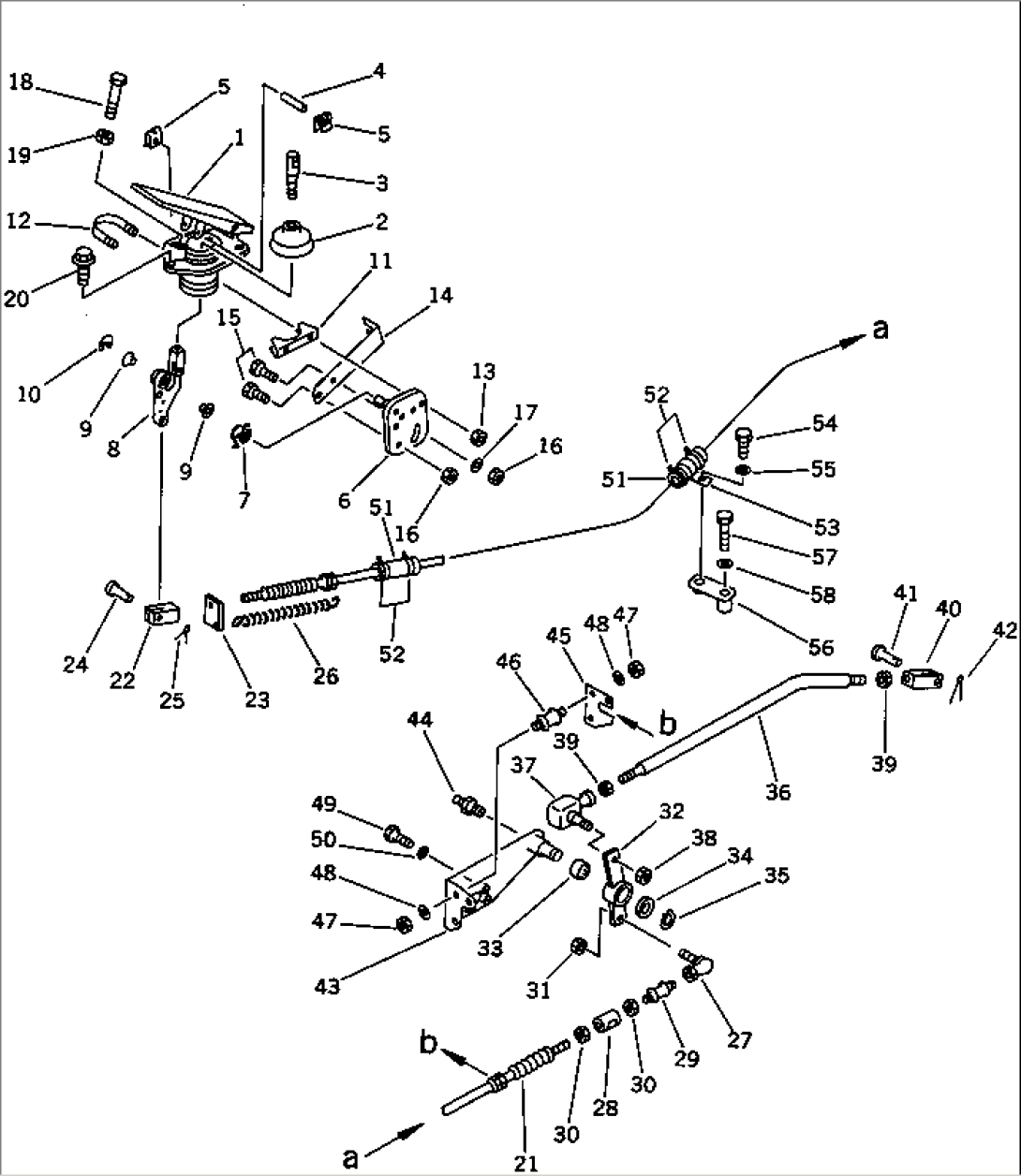

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-43-11310 | PEDAL ASS'Y | 10864- | ||
| 1 | 417-43-11210 | PEDAL | 10864- | |
| 2 | 417-43-11360 | BOOT | 10864- | |
| 3 | 417-43-11310 | ROD | 10864- | |
| 4 | 417-43-11320 | PIN | 10864- | |
| 5 | 417-43-11330 | CLIP | 10864- | |
| 6 | 417-43-11220 | PLATE | 10864- | |
| 7 | 417-43-11240 | SPRING | 10864- | |
| 8 | 417-43-11230 | LEVER | 10864- | |
| 9 | 417-43-11250 | BEARING | 10864- | |
| 10 | 417-43-11260 | CLIP | 10864- | |
| 11 | 417-43-11290 | SUPPORT | 10864- | |
| 12 | 417-43-11270 | U-BOLT | 10864- | |
| 13 | 417-43-11280 | NUT | 10864- | |
| 14 | 421-43-11320 | SUPPORT | 10864- | |
| 15 | 01010-80616 | BOLT | 10864- | |
| 16 | 417-43-11350 | NUT | 10864- | |
| 17 | 01643-30623 | WASHER | 10864- | |
| 18 | 01010-80860 | BOLT | 10864- | |
| 19 | 01580-10806 | NUT | 10864- | |
| 20 | 01435-00620 | BOLT | 10864- | |
| 21 | 426-43-11133 | CABLE | 10864- | |
| 22 | 04210-20624 | YOKE | 10864- | |
| 23 | 424-43-11170 | PLATE | 10864- | |
| 24 | 04205-10620 | PIN | 10864- | |
| 25 | 04050-11612 | PIN,COTTER | 10864- | |
| 26 | 418-43-18240 | SPRING | 10864- | |
| 27 | 04256-40615 | JOINT | 10864- | |
| 28 | 421-43-11330 | ROD | 10864- | |
| 29 | 424-43-11240 | CUSHION | 10864- | |
| 30 | 01580-10605 | NUT | 10864- | |
| 31 | 01596-00606 | NUT | 10864- | |
| 32 | 426-43-11193 | LEVER | 10864- | |
| 33 | 426-43-11120 | BEARING | 10001- | |
| 34 | 01643-32060 | WASHER | 10001- | |
| 35 | 04064-01812 | RING,SNAP | 10001- | |
| 36 | 426-43-11163 | ROD | 10864- | |
| 37 | 04256-00818 | JOINT | 10001- | |
| 38 | 01596-00807 | NUT | 10001- | |
| 39 | 01580-10806 | NUT | 10001- | |
| 40 | 04210-20832 | YOKE | 10001- | |
| 41 | 04205-10822 | PIN | 10001- | |
| 42 | 04050-12015 | PIN,COTTER | 10001- | |
| 43 | 426-43-11173 | BRACKET | 10864- | |
| 44 | 07020-00900 | FITTING,GREASE | 10881- | |
| 44 | 07020-00000 | FITTING,GREASE | 10001-10880 | |
| 45 | 426-43-11431 | PLATE | 10864- | |
| 46 | 424-43-11240 | CUSHION | 10864- | |
| 47 | 01580-10605 | NUT | 10001- | |
| 48 | 01643-30623 | WASHER | 10001- | |
| 49 | 01010-81245 | BOLT | 10001- | |
| 50 | 01643-31232 | WASHER | 10001- | |
| 51 | 205-62-53780 | COVER | 10955- | |
| 51 | 205-62-53780 | COVER | 10865-10954 | |
| 52 | 08034-00536 | BAND | 10955- | |
| 52 | 08034-00536 | BAND | 10865-10954 | |
| 53 | 08036-03014 | CLIP | 10955- | |
| 53 | 566-16-11560 | CLIP | 10865-10954 | |
| 54 | 01010-51020 | BOLT | 10955- | |
| 54 | 01010-51020 | BOLT | 10001-10954 | |
| 55 | 01643-31032 | WASHER | 10001-10954 |
