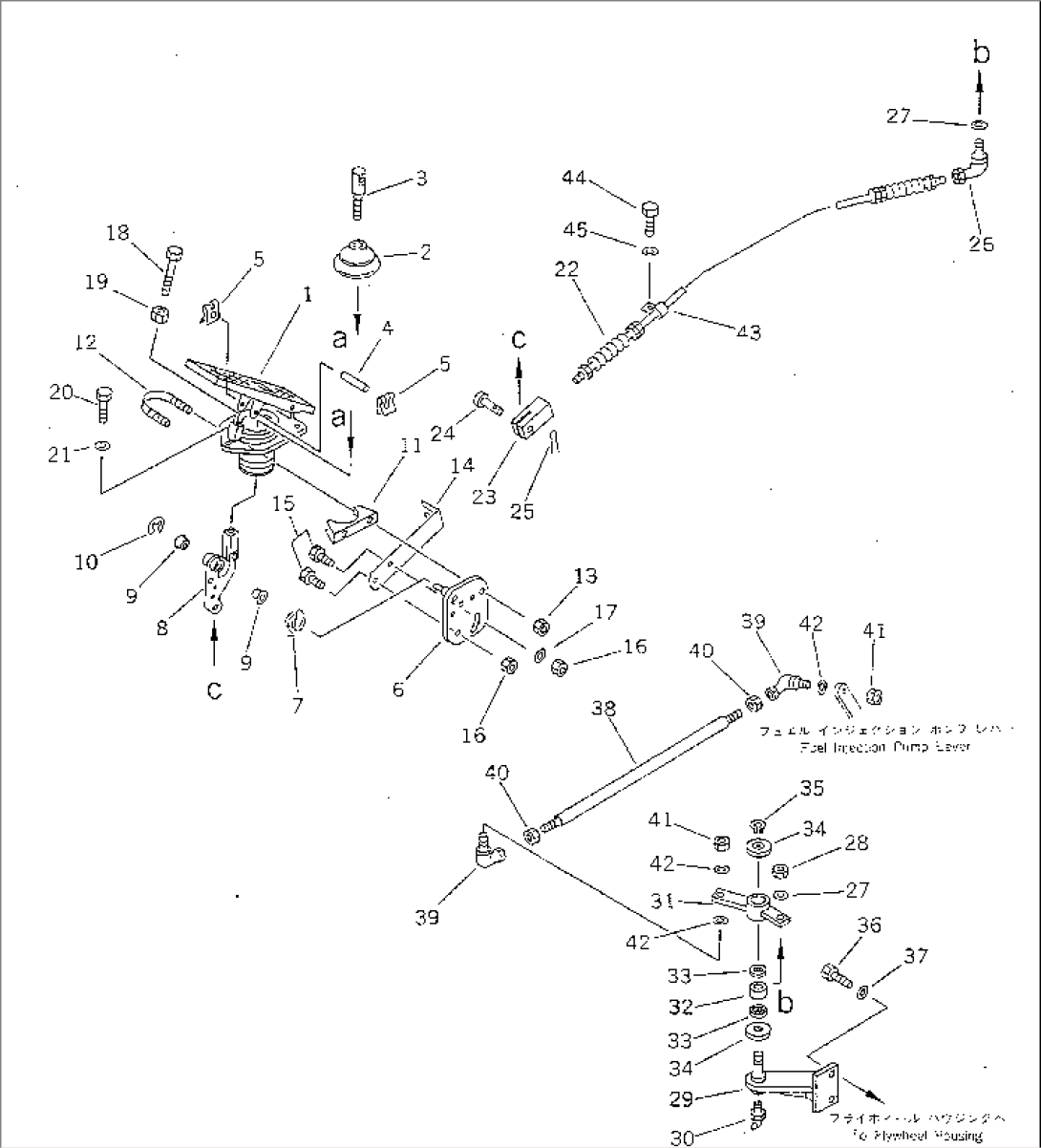

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-43-11200 | PEDAL ASS'Y | 20001- | ||
| 1 | 417-43-11210 | PEDAL | 20001- | |
| 2 | 417-43-11360 | BOOT | 20001- | |
| 3 | 417-43-11310 | ROD | 20001- | |
| 4 | 417-43-11320 | PIN | 20001- | |
| 5 | 417-43-11330 | CLIP | 20001- | |
| 6 | 417-43-11220 | PLATE | 20001- | |
| 7 | 417-43-11240 | SPRING | 20001- | |
| 8 | 417-43-11230 | LEVER | 20001- | |
| 9 | 417-43-11250 | BEARING | 20001- | |
| 10 | 417-43-11260 | CLIP | 20001- | |
| 11 | 417-43-11290 | SUPPORT | 20001- | |
| 12 | 417-43-11270 | U-BOLT | 20001- | |
| 13 | 417-43-11280 | NUT | 20001- | |
| 14 | 417-43-11340 | SUPPORT | 20001- | |
| 15 | 01010-50616 | BOLT | 20001- | |
| 16 | 417-43-11350 | NUT | 20001- | |
| 17 | 01643-30623 | WASHER | 20001- | |
| 18 | 01010-50860 | BOLT | 20001- | |
| 19 | 01580-10806 | NUT | 20001- | |
| 20 | 01010-50620 | BOLT | 20001- | |
| 21 | 01643-30623 | WASHER | 20001- | |
| 22 | 417-43-11612 | CABLE | 20001- | |
| 23 | 04210-20624 | YOKE | 20001- | |
| 24 | 04205-10620 | PIN | 20001- | |
| 25 | 04050-11612 | PIN,COTTER | 20001- | |
| 26 | 424-09-12450 | JOINT | 20001- | |
| 27 | 01643-30623 | WASHER | 10001- | |
| 28 | 426-09-11130 | NUT | 10001- | |
| 29 | 417-43-11152 | BRACKET | 11758- | |
| 30 | 07020-00900 | FITTING,GREASE | 10001- | |
| 31 | 417-43-11142 | LEVER | 20001- | |
| 32 | 06120-01612 | BEARING,NEEDLE | 10001- | |
| 33 | 06122-01603 | SEAL,BEARING | 10001- | |
| 34 | 01643-31645 | WASHER | 10001- | |
| 35 | 04064-01610 | RING,SNAP | 10001- | |
| 36 | 01010-51030 | BOLT | 11758- | |
| 37 | 01643-31032 | WASHER | 10001- | |
| 38 | 416-855-1530 | ROD | 20001- | |
| 39 | 424-09-12450 | JOINT | 10001- | |
| 40 | 01580-10605 | NUT | 10001- | |
| 41 | 426-09-11130 | NUT | 10001- | |
| 42 | 01643-30623 | WASHER | 10001- | |
| 43 | 08036-01814 | CLIP | 20001- | |
| 44 | 01010-51016 | BOLT | 20001- | |
| 45 | 01643-31032 | WASHER | 20001- |
